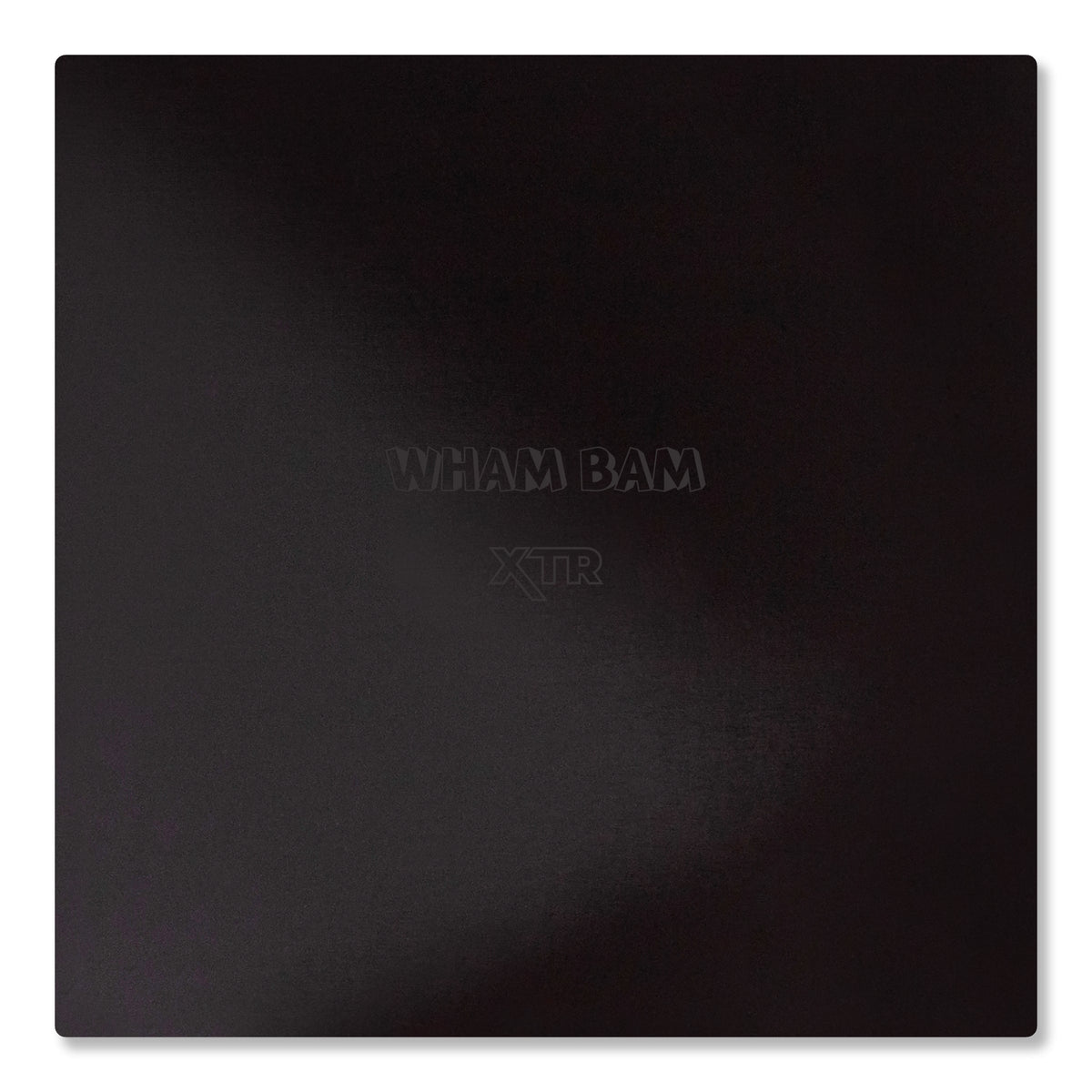

XTR Magnetic Base - 355 x 355 mm

Upgrade your 3D printer's hold down force with the Wham Bam XTR Magnetic Base (355 x 355 mm). Featuring an extra-thick 2 mm magnetic layer, the eXTReme (XTR) line is engineered specifically for prosumer and industrial-grade FDM machines to provide maximum stiffness and resist the intense peeling and warping forces generated by high-shrinkage engineering filaments.

Pre-backed with high-temperature 3M adhesive rated up to 150°C, this magnetic base ensures your build plate remains perfectly aligned and firmly secured throughout long, demanding print jobs.

Key Features & Specifications

• Dimensions: 355 mm x 355 mm
• Thickness: 2.0 mm heavy-duty magnetic sheet (XTR grade)
• Thermal Limit: High-temperature 3M adhesive rated for continuous use up to 150°C
• Package Includes: 1x XTR Magnetic Base with pre-applied 3M adhesive backing

Printer Compatibility

Direct Fit:

• Sovol SV08
• VORON Design 350 V2

May Fit:

• Sovol SV03
• Zortrax M300

Installation, Maintenance & Best Practices

Installation Steps

1. Clean the Heated Bed: Remove any previous magnetic sticker or adhesive residue. Wipe down the bare bed with Isopropyl Alcohol (IPA) and a fresh paper towel.
2. Surface Preparation: Scuff the metal print bed uniformly using 220-grit sandpaper to remove surface contaminants and improve adhesion. If the bed is painted, lightly break through the paint layer.
3. Final Wipe: Clean thoroughly with >90% IPA and fresh paper towels until no residue or dust remains on the paper towel. Allow the surface to dry completely.
4. Application & Curing: Carefully align and apply the magnetic sheet, pressing firmly across the entire surface to eliminate air bubbles. Allow the 3M adhesive to cure for a full 72 hours before heating or printing.

Post-Installation Setup

Once the adhesive curing period is complete, re-level your print bed (automatic or manual) and recalibrate your Z-offset to account for the added thickness. Refer to Wham Bam's Bed Leveling Guide for step-by-step assistance.
