Transform your standard FFF/FDM 3D printer into a real metal additive manufacturing system with Metal Filamet™ Samples by The Virtual Foundry. Designed to print on open-architecture 3D printers and even 3D printing pens, these metal-infused filaments allow you to produce green-state parts that can be debound and sintered in a furnace to yield pure, solid metal components.

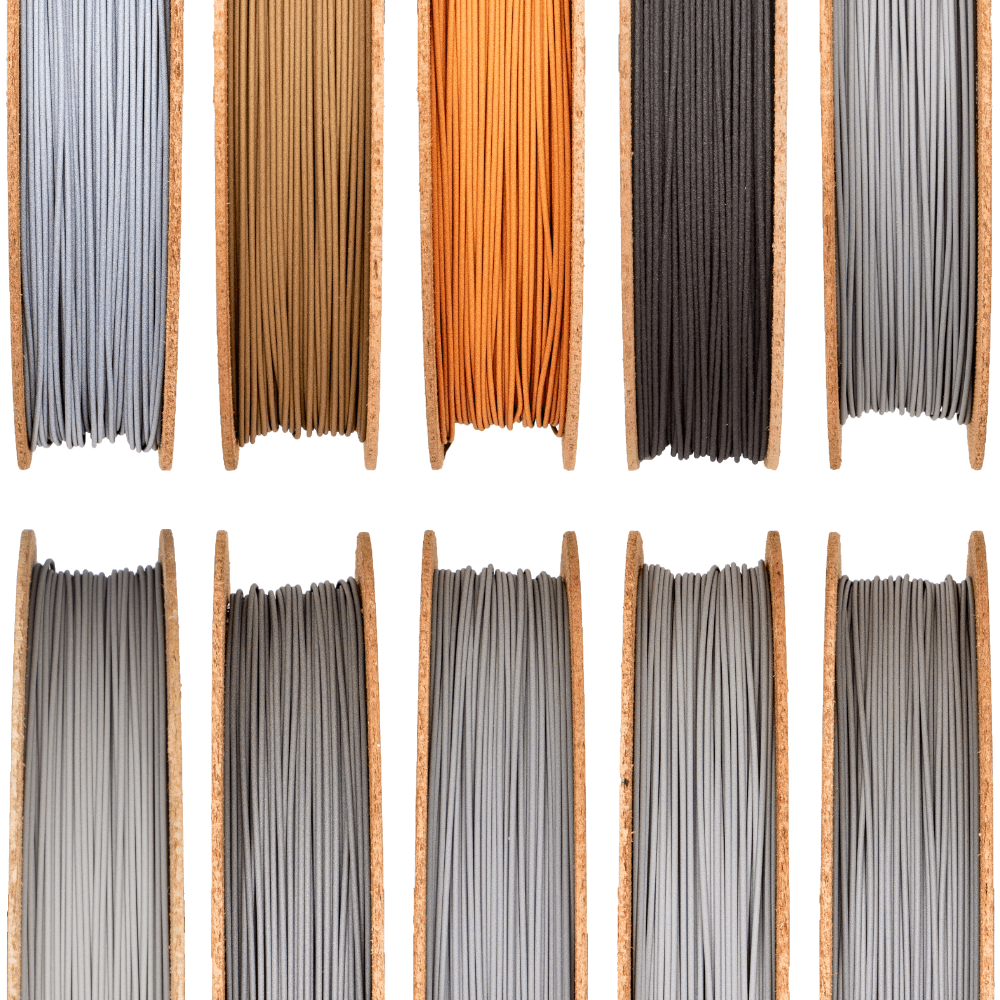

Engineered for hassle-free printing, Metal Filamet™ handles similarly to standard PLA with minimal warping and low hygroscopic sensitivity. Available in 100g sample sizes across 1.75mm and 2.85mm diameters, it provides an accessible path to test high-density metal printing before committing to full spools.
Key Features
Universal Open-Architecture Compatibility: Prints on standard FDM/FFF 3D printers and 3D printing pens without requiring specialized, proprietary hardware.
Fully Sinterable Metal Content: High metal particle loading by mass allows parts to be fired in a furnace into solid metal end-use components.
User-Friendly Extrusion: High thermal stability, minimal to no warping during printing, and lower moisture absorption than standard PLA.
Broad Material Options: Available in engineering alloys including Stainless Steel, Titanium, Inconel, Copper, Bronze, Tool Steel, and Tungsten.
Material Specifications
Material
Metal Load (Mass)
Recommended Nozzle
Filament Density

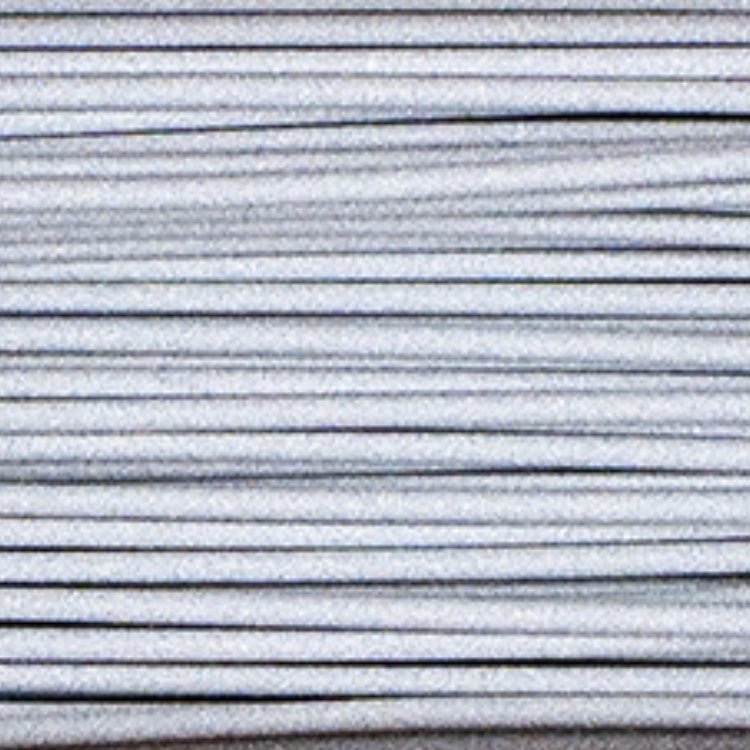

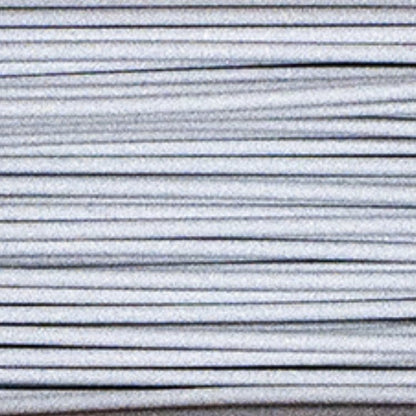

Aluminum 6061
60.0 – 69.0%
0.6mm Hardened Steel
1.20 – 1.50 g/cc

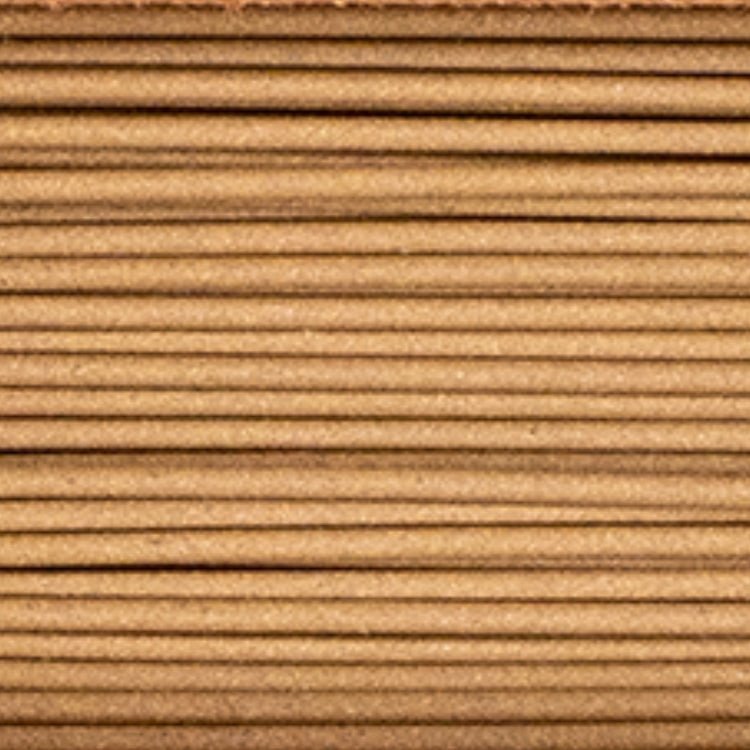

Bronze
86.0 – 90.0%
0.6mm Hardened Steel
4.10 – 4.50 g/cc

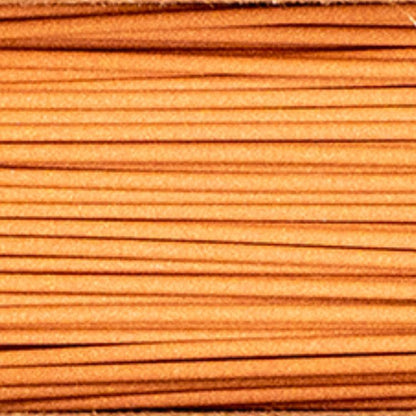

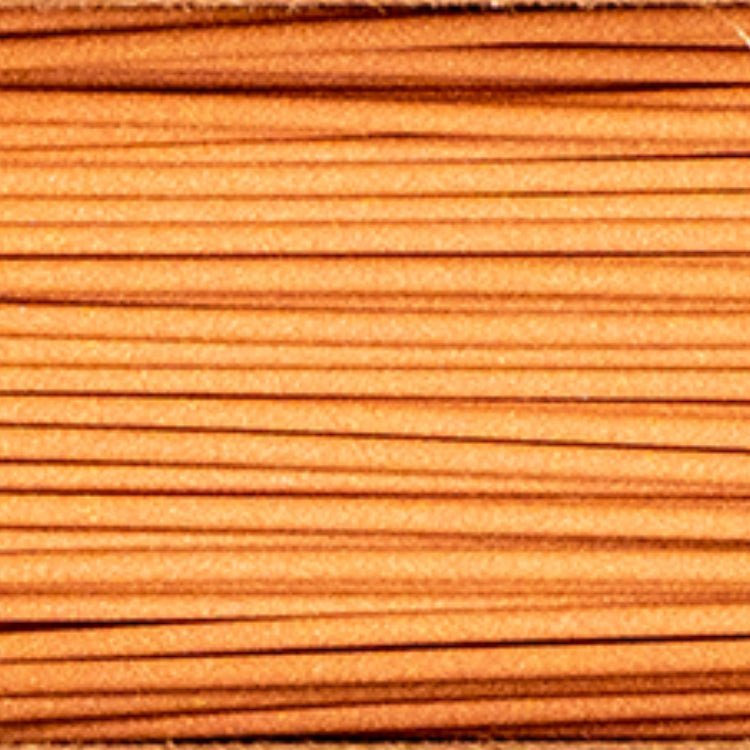

Copper
86.0 – 90.7%
0.6mm Hardened Steel
4.50 – 5.00 g/cc

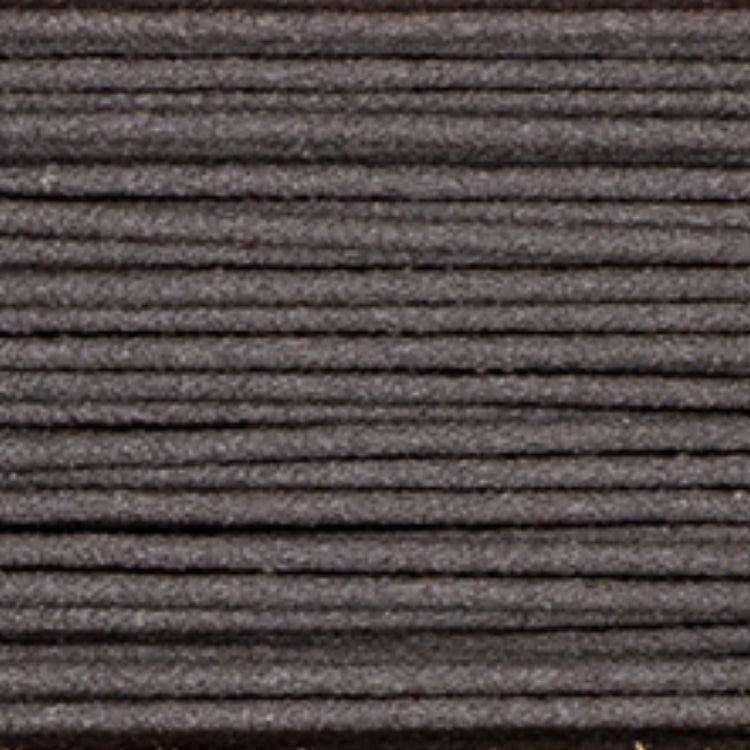

High Carbon Iron
75.0 – 80.0%
0.8mm Hardened Steel
2.90 – 3.85 g/cc

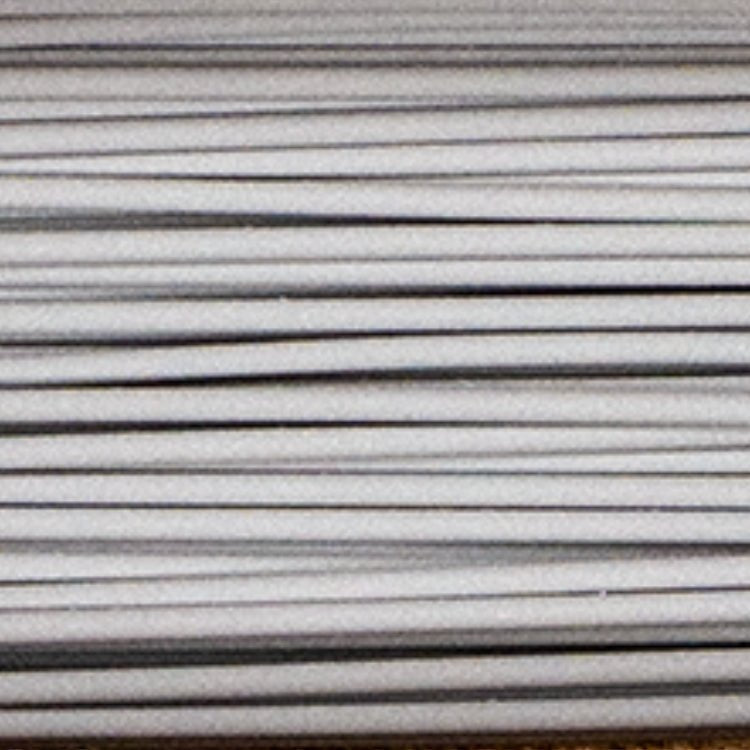

Inconel® 718
82.0 – 85.0%
0.6mm Hardened Steel
3.50 – 4.30 g/cc
M300 Tool Steel
85.0 – 88.0%
0.6mm Hardened Steel
3.50 – 3.65 g/cc

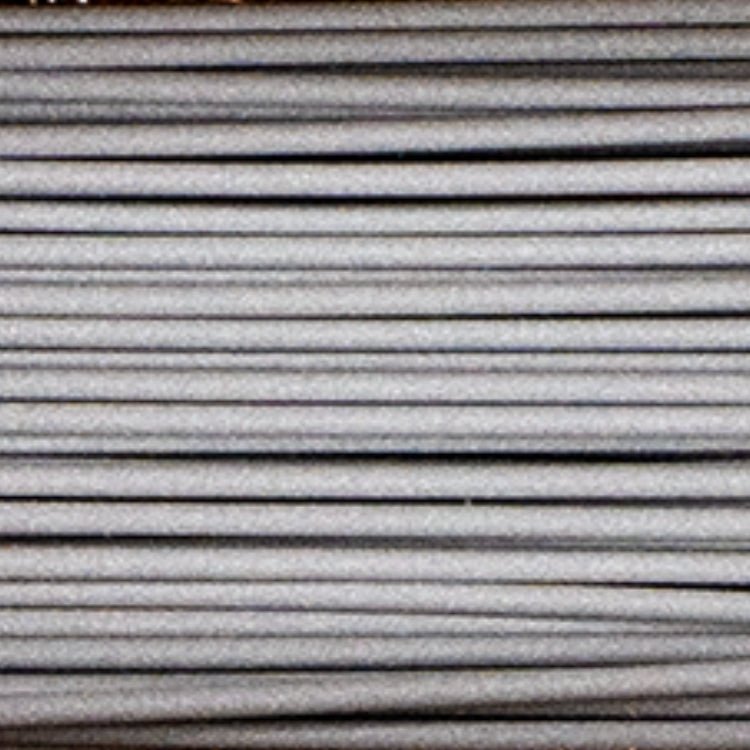

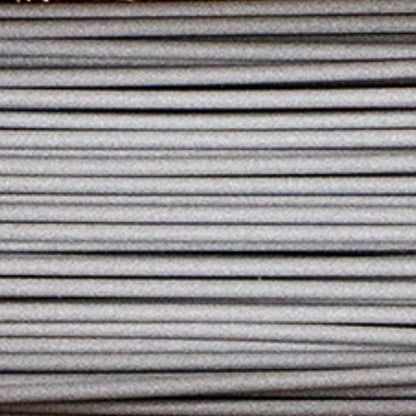

Rapid 3DShield Tungsten
88.0 – 94.0%
0.6mm Hardened Steel
7.80 – 9.20 g/cc

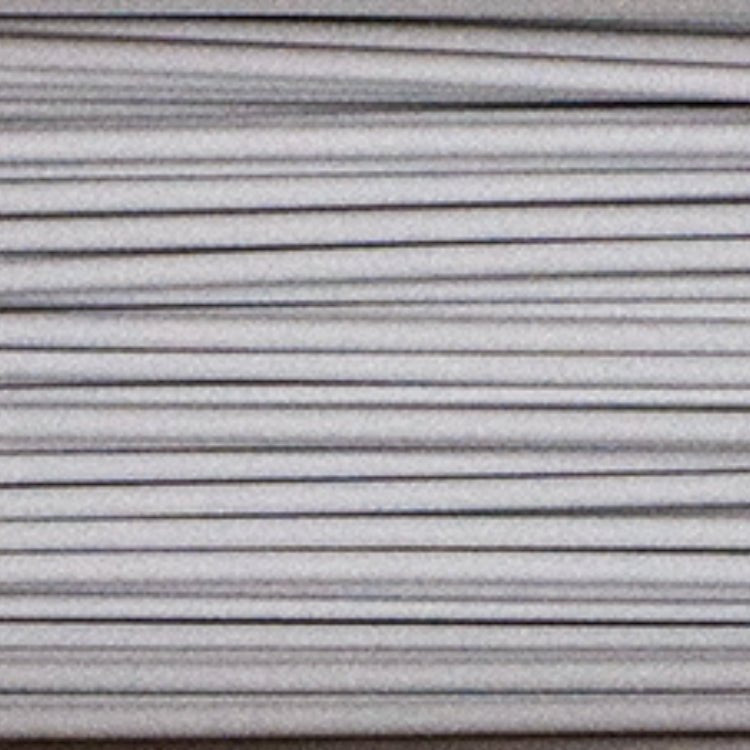

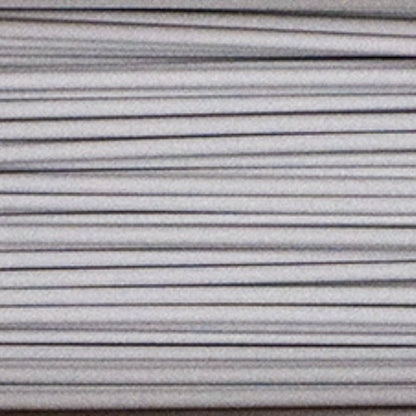

Stainless Steel 17-4
80.0 – 85.0%
0.8mm Hardened Steel
3.25 – 4.15 g/cc

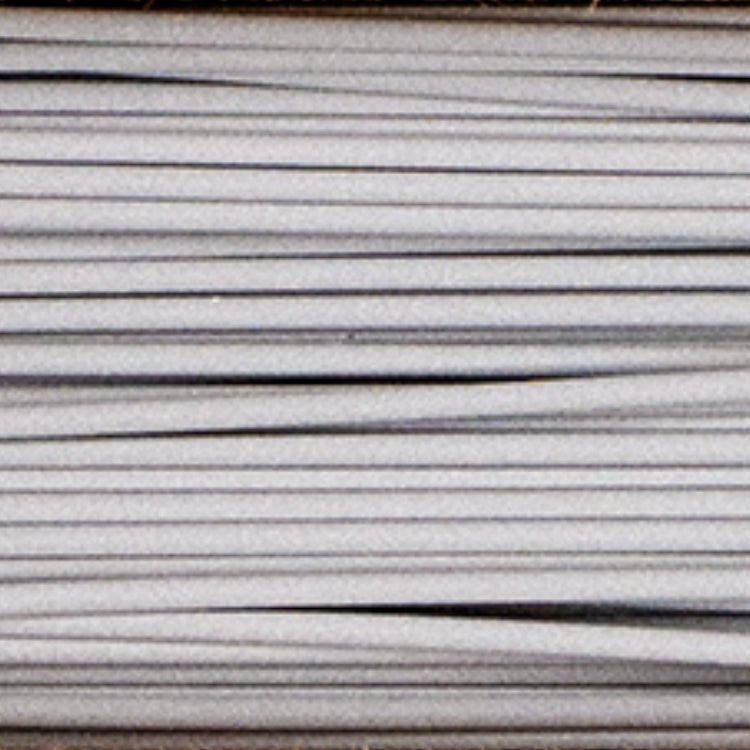

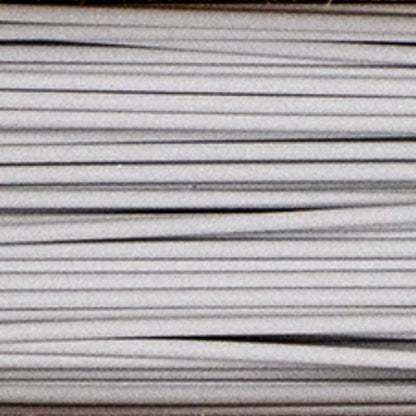

Stainless Steel 316L
80.0 – 85.0%
0.6mm Hardened Steel
3.45 – 3.55 g/cc

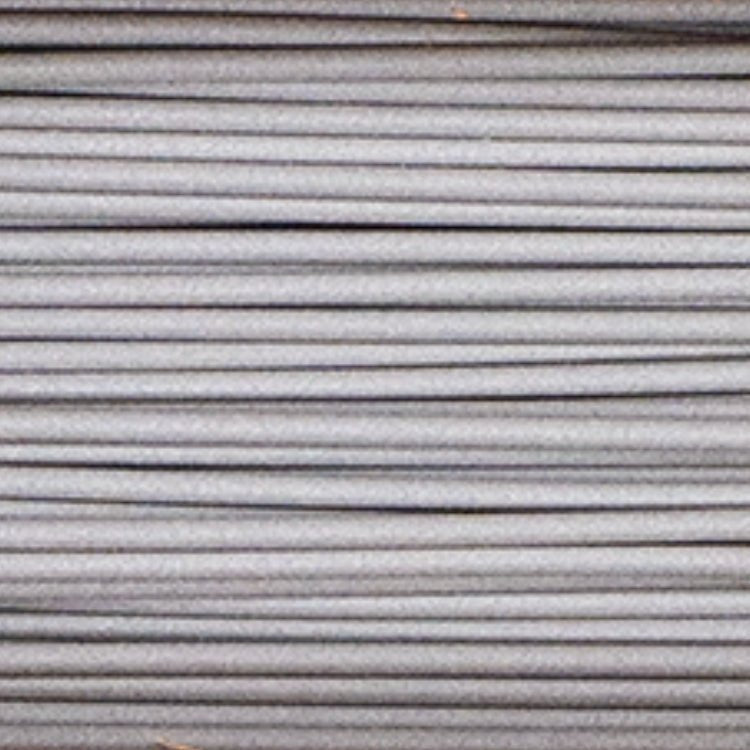

Titanium 64-23
78.0 – 82.0%
0.6mm Hardened Steel
2.50 – 2.85 g/cc
Printing & Handling Guidelines
Nozzle Requirements: A wear-resistant hardened steel nozzle (0.6mm or 0.8mm depending on material) is required to handle abrasive metal powders.
Filament Path: Ensure a straight, low-friction feeding path into the extruder to avoid brittle filament breakage.
Drying Warning:Do not active-dry this filament. Thermal drying degrades the organic binder system.
For complete debinding and sintering schedules, technical data sheets, and printer compatibility lists, visit The Virtual Foundry Documentation Portal. Some sample packs may ship spooless.
