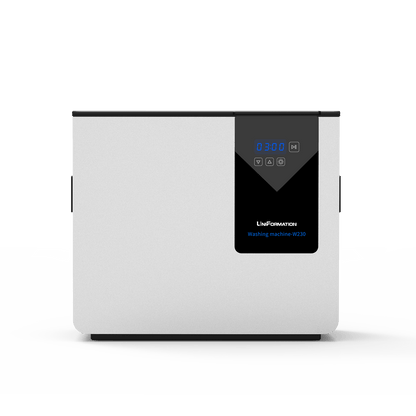

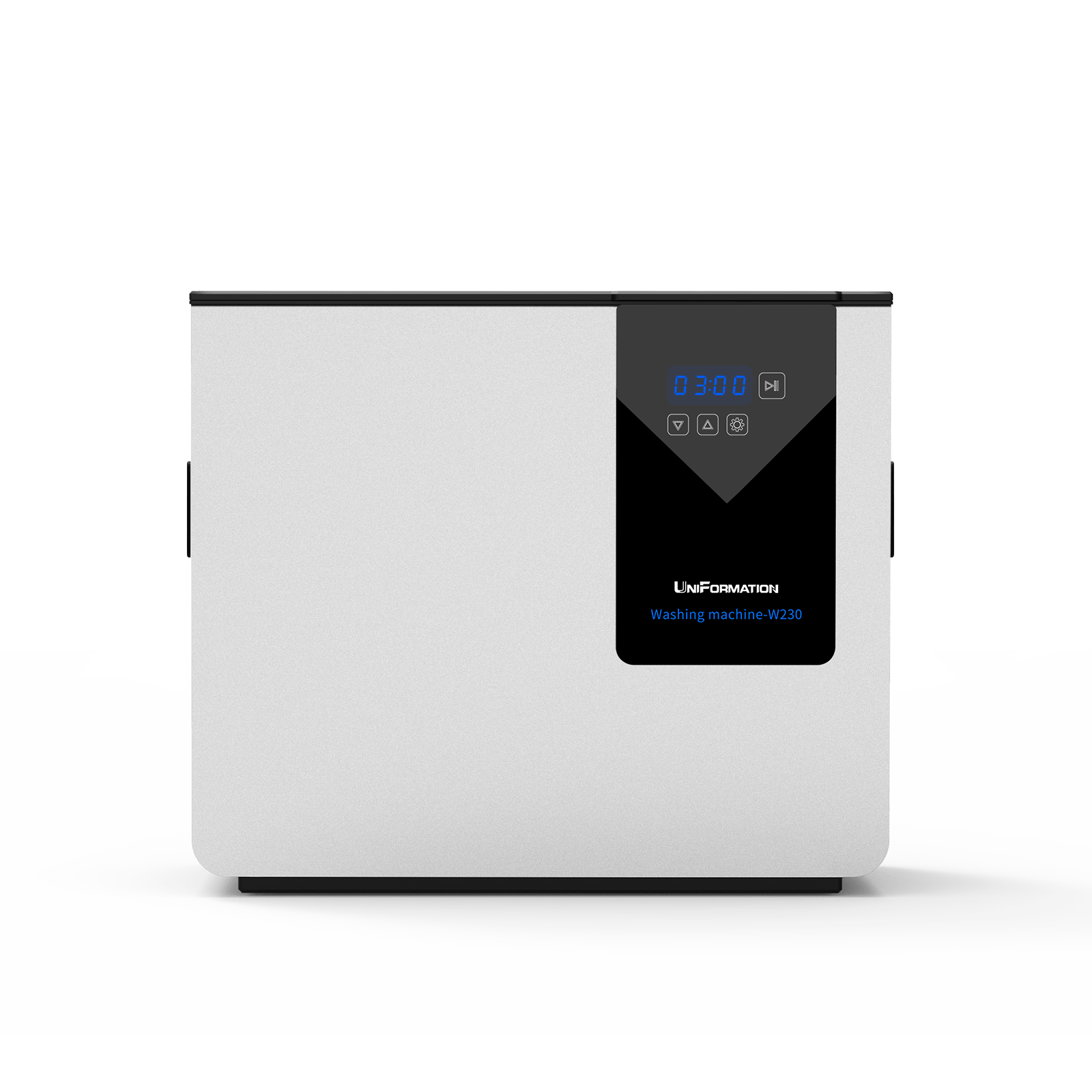

UniFormation W230 Ultrasonic Resin Cleaner (7L, 110–120V)

When selecting the ideal post-processing equipment for SLA 3D printing, West3D identified UniFormation for its reliable engineering and maker-focused designs. The UniFormation W230 Ultrasonic Resin Cleaner features a high-capacity 7-liter tank designed for rapid, thorough cleaning of 3D resin prints while preserving intricate details.

Operating at a powerful 40kHz ultrasonic frequency, the W230 uses high-frequency micro-vibrations to strip uncured photopolymer resin from printed parts in seconds without risk of surface damage. Designed for maximum versatility, it includes a direct-fit slot for the UniFormation GKTwo build plate as well as a fine-mesh cleaning basket for loose parts.

Key Features & Capabilities

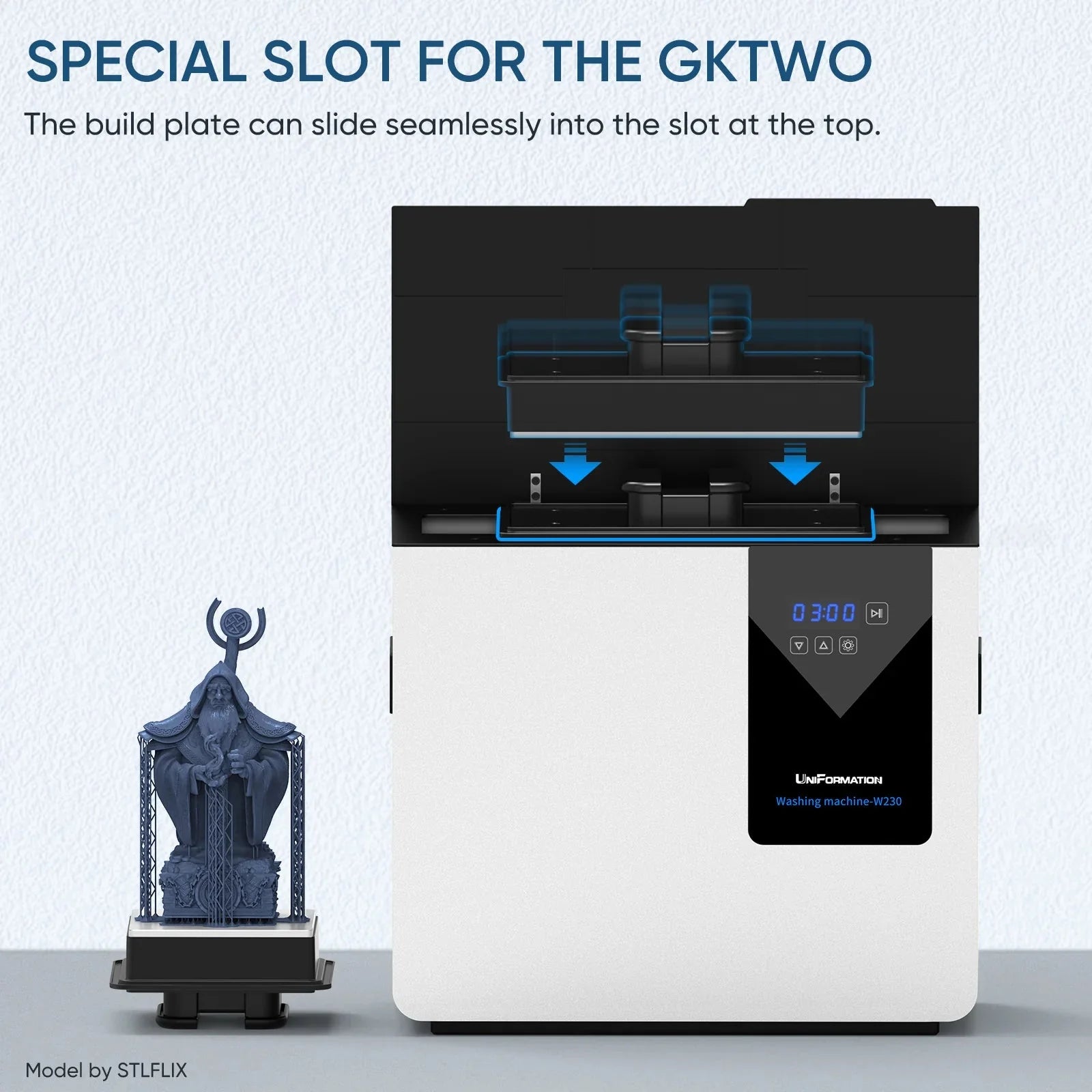

• Dual Cleaning Modes: Features a dedicated slot to submerge the UniFormation GKTwo build plate directly. Alternatively, use the included fine-mesh basket for loose parts to prevent small models from falling through.

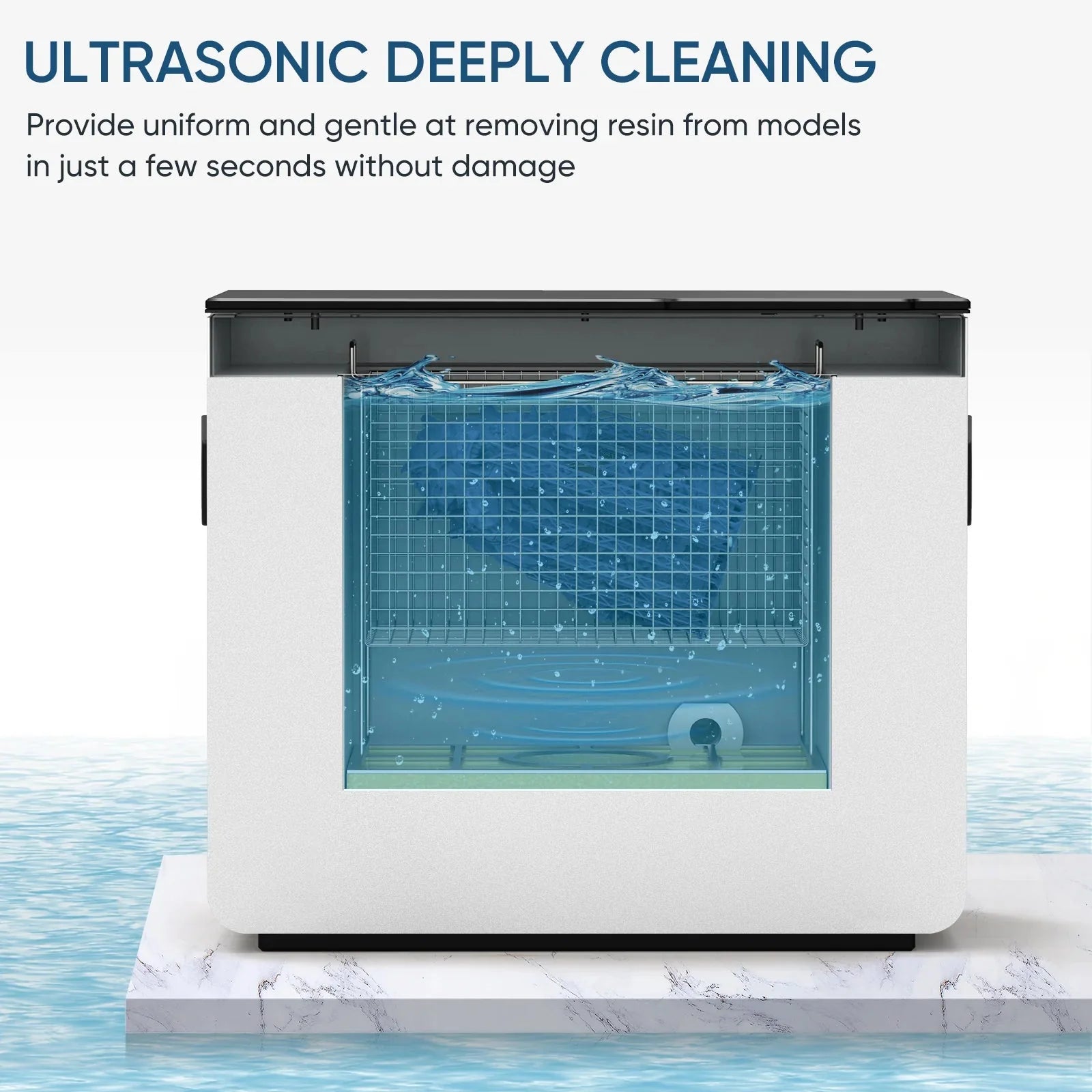

• 40kHz Ultrasonic Deep Clean: High-frequency sound waves produce uniform cavitation bubbles, stripping residual resin from complex geometry and deep cavities without compromising fine details.

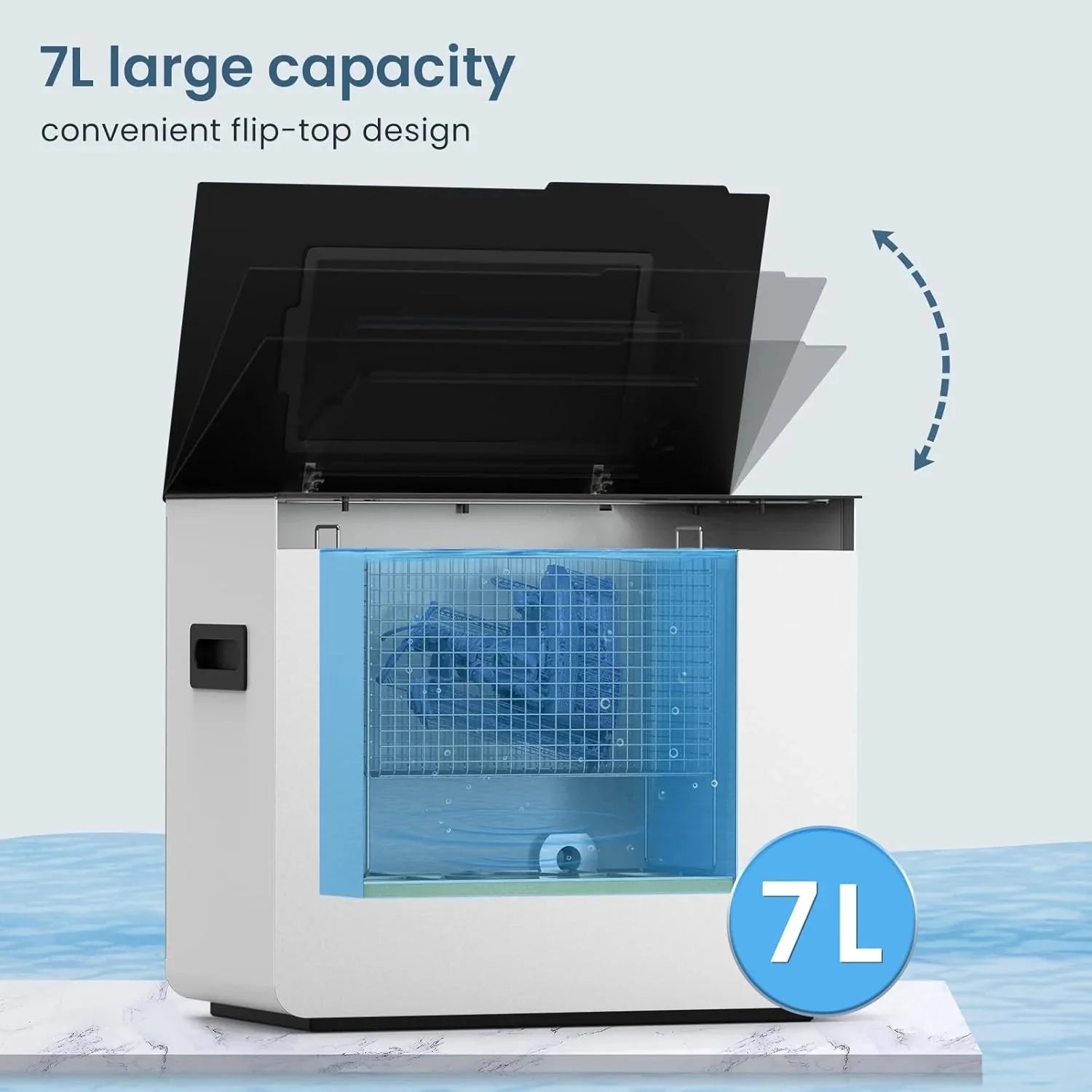

• Large 7L Capacity: Washing volume of 228mm x 128mm x 200mm accommodates large-format models and is compatible with most desktop SLA, DLP, and LCD 3D printers on the market.
• Intuitive LED Touch Control: Digital display allows custom wash timer settings from 0 to 10 minutes (typical cycle length is 3 minutes).
• Corrosion-Resistant Construction: Built with durable materials resistant to IPA (Isopropyl Alcohol) and specialty resin solvents.
• Convenient Maintenance Design: Clamshell lid minimizes solvent evaporation between uses, while the integrated drain port simplifies fluid changes.

Technical Specifications

• Washing Capacity: 6.5L – 7L max fluid volume
• Washing Dimensions: 228mm (L) x 128mm (W) x 200mm (H)
• External Dimensions: 382mm (W) x 202mm (D) x 330mm (H)
• Ultrasonic Frequency: 40kHz
• Operating Voltage: 110V–120V AC
• Power Consumption: 48W
• Control Interface: LED Touchscreen
• Package Weight: 8.5 kg

Operating Safety Note: Never run the ultrasonic cleaner dry. Always ensure the tank is filled with appropriate liquid before starting a wash cycle.
