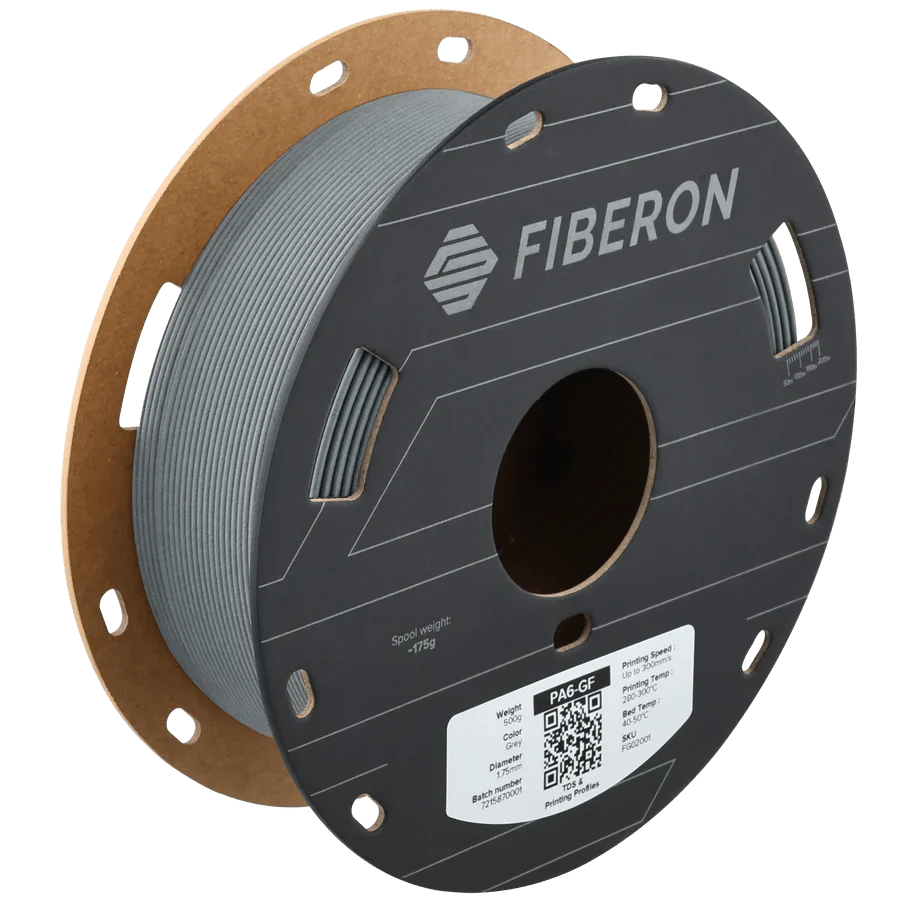

Polymaker Fiberon PA6-GF25 Glass Fiber Nylon Filament (500g)

Polymaker Fiberon™ PA6-GF25 (formerly known as PolyMide™ PA6-GF) is an industrial-grade, 25% glass fiber reinforced PA6 (Nylon 6) filament designed for rigorous engineering applications. This high-performance material exhibits outstanding thermal and mechanical properties without sacrificing layer adhesion, making it ideal for robust, structural components that require long-term durability.

Key Performance Features

• High-Strength Composite: Formulated with premium glass fiber reinforcement to provide exceptional stiffness, impact resistance, and heat deflection.
• Superior Layer Adhesion: Unlike many highly filled composite filaments, Fiberon PA6-GF25 maintains excellent Z-axis layer bonding for reliable structural integrity under stress.
• Material Density: 1.2 g/cm³

Hardware & Printing Requirements

To achieve successful prints and optimal mechanical properties, your 3D printer workflow must meet the following requirements:

• Extruder/Hotend: An all-metal hotend capable of reaching 280°C or higher is required.
• Nozzle: A hardened steel, ruby, or specialized abrasion-resistant nozzle is mandatory. (Glass fiber is highly abrasive and will quickly destroy standard brass nozzles).
• Filament Dryer: Nylon is highly hygroscopic; utilizing a dedicated filament dryer before and during the printing process is critical for clean extrusion.
• Post-Processing: Annealing the printed part, followed by moisture conditioning, is highly recommended to maximize part strength and dimensional stability.

Spool Specifications (0.5kg Eco-Cardboard Spool)

• Spool Inner Hole Diameter: 55 ± 1mm
• Spool Diameter: 200 ± 1mm
• Spool Width: 65.6 ± 2mm
• Empty Spool Weight: 190 ± 7g
