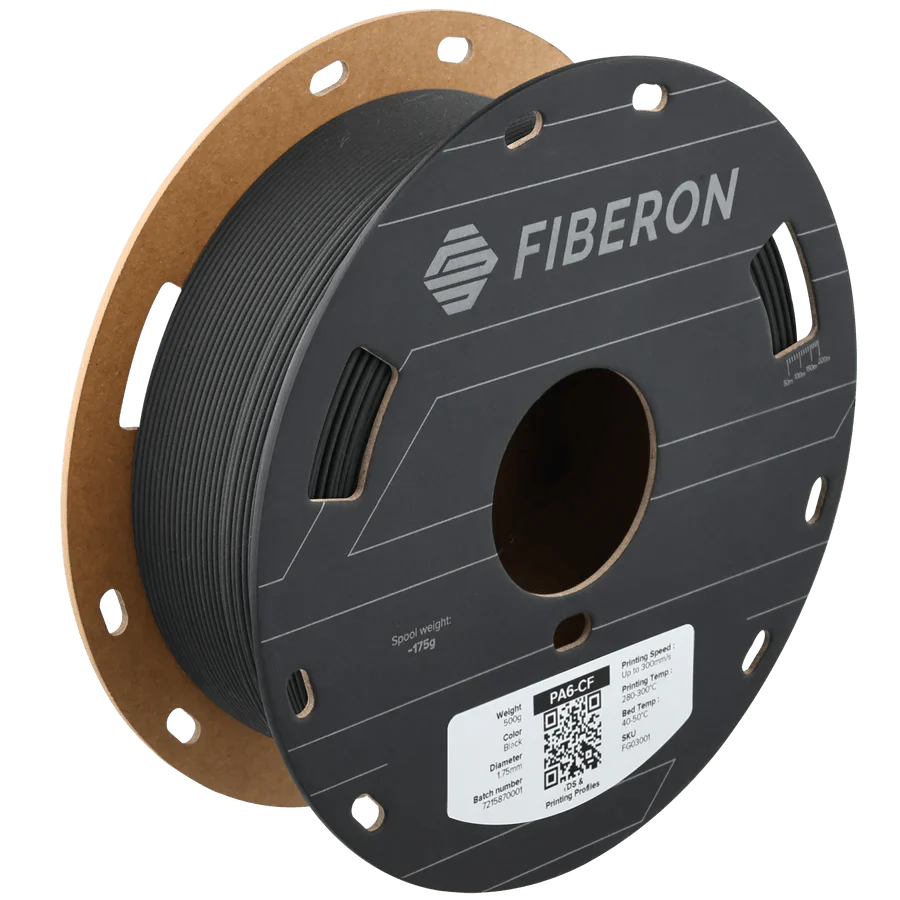

Fiberon™ PA6-CF20 Carbon Fiber Nylon Filament | Engineering Grade

Fiberon™ PA6-CF20: Carbon Fiber Reinforced Nylon

Fiberon™ PA6-CF20 is a high-performance PA6 (Nylon 6) filament reinforced with 20% carbon fiber. This industrial-grade material offers a significant leap in stiffness, tensile strength, and heat resistance compared to standard nylons, while maintaining the outstanding layer adhesion that professionals demand.

Note: Fiberon™ PA6-CF20 utilizes the same proven formula as PolyMide PA6-CF, delivering a deep, professional matte black finish.

📥 Download Technical Data Sheet (TDS) | SDS (Safety Data Sheet)

Advanced Printing Requirements

Due to its high carbon fiber content and engineering properties, the following setup is required for optimal results:

• Hotend: All-metal hotend capable of 280°C+.
• Nozzle: Hardened Steel nozzle is mandatory (carbon fiber is abrasive to brass).
• Filament Management: Active filament dryer is highly recommended during printing.
• Post-Processing: For maximum heat resistance and strength, annealing post-printing is recommended.

Technical Specifications

Density	1.17g/cm³
Base Material	PA6 (Nylon 6)
Reinforcement	20% Chopped Carbon Fiber
Compliance	REACH, RoHS, ISO9001 Certified

Spool Information (0.5kg)

• Spool Diameter: 200±1mm
• Inner Hole Diameter: 55±1mm
• Spool Width: 65.6±2mm
• Sustainability: Delivered on a recyclable cardboard spool.
