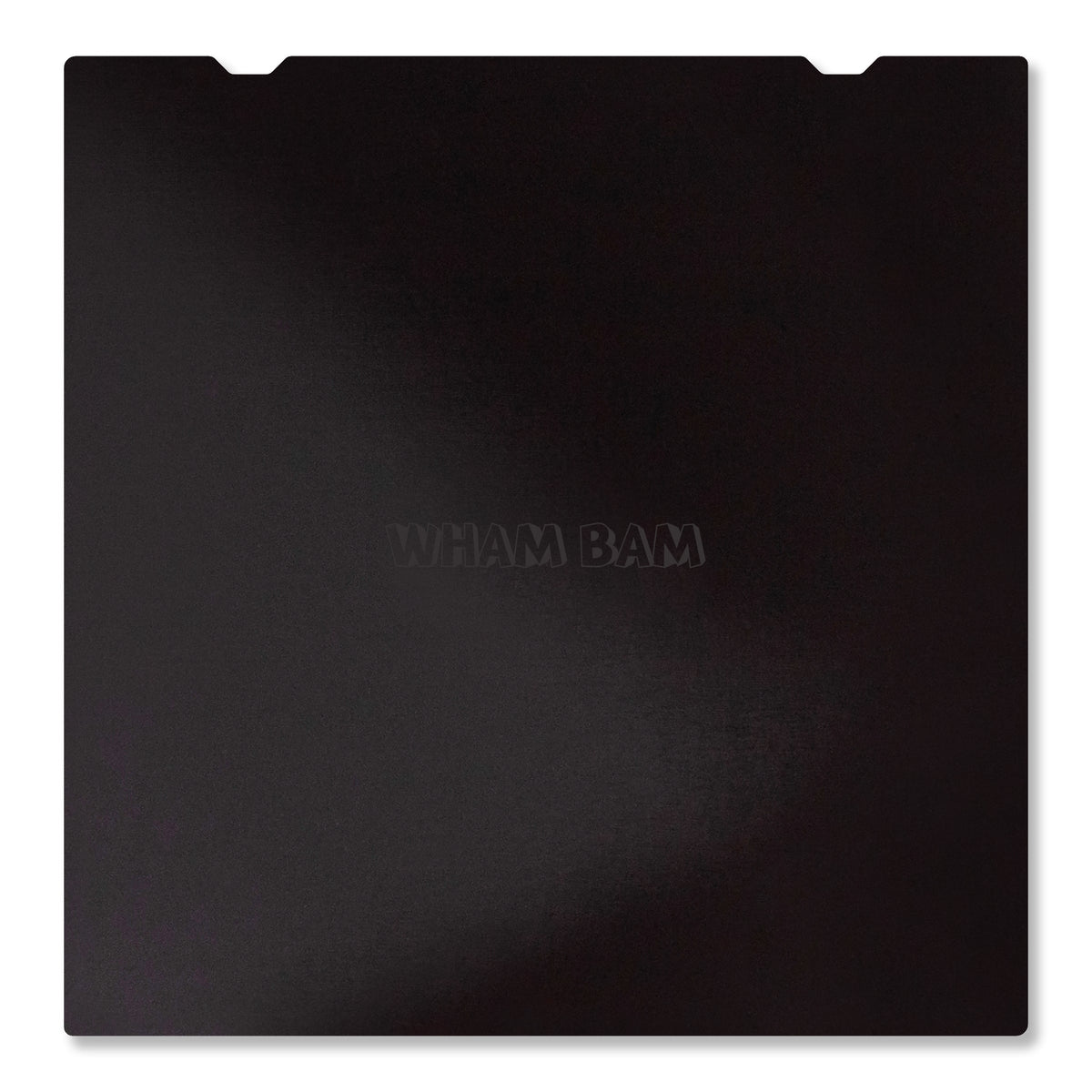

High-Temp Magnetic Base - 315 x 310 mm (Ender 3 S1 Plus, K1 Max, CR-10 Smart Pro)

Upgrade your 3D printer bed setup with the high-performance Wham Bam High-Temp Magnetic Base (315 x 310 mm). Formulated specifically to resist extreme bed temperatures for prolonged periods, this magnetic sheet provides exceptional holding force to ensure your flex plate stays securely aligned during printing.

Measuring 1 mm in thickness, this magnetic base comes pre-backed with high-temperature 3M adhesive for a strong, reliable bond directly to your heated bed.

Key Features & Specifications

• Dimensions: 315 mm x 310 mm
• Thickness: 1 mm
• Adhesive: Pre-applied high-temperature 3M adhesive backing
• Temperature Rating: Rated for continual use up to 150°C
• Package Includes: 1x High-Temp Magnetic Base

Printer Compatibility

Direct Fit:

• Creality CR-10 Smart Pro
• Creality Ender 3 S1 Plus
• Creality Ender 3 V3 Plus
• Creality K1 Max

Installation, Maintenance & Best Practices

Proper surface preparation and curing time are crucial to ensure a permanent bond.

Step-by-Step Installation

1. Clean the Heated Bed: Remove any previous magnet or adhesive residue completely using Isopropyl Alcohol (IPA) and a fresh paper towel.
2. Rough Up the Surface: Lightly sand the metal build surface using 220-grit sandpaper to create a uniform texture for optimal adhesion. If the surface is painted, attempt to partially break through the paint layer.
3. Final Degreasing: Wipe down the surface multiple times with 90%+ Isopropyl Alcohol and clean paper towels until no dirt or residue appears on the towel. Avoid using shop rags or towels that contain oils.
4. Apply the Base: Ensure the bed is completely dry, then peel back the 3M liner and carefully align and press the magnetic base firmly onto the surface.
5. Cure Time: Allow the 3M adhesive to cure for a full 72 hours prior to heating or using the bed.

Post-Installation Bed Leveling

Once installed, perform a fresh bed-leveling sequence (auto-leveling or manual) and adjust your Z-offset to ensure the ideal first-layer squish. For additional tips, refer to the Wham Bam Bed Leveling Guide.

Downloads & Resources

• Table Top / Wall Mount Flexi Plate Holder (STL)
• FDM Printer Tool Kit Holder (STL)
• Table Top Spool Holder (STL)
• Whammy - Wham Bam Mascot (STL)
• Installation Video Guide
