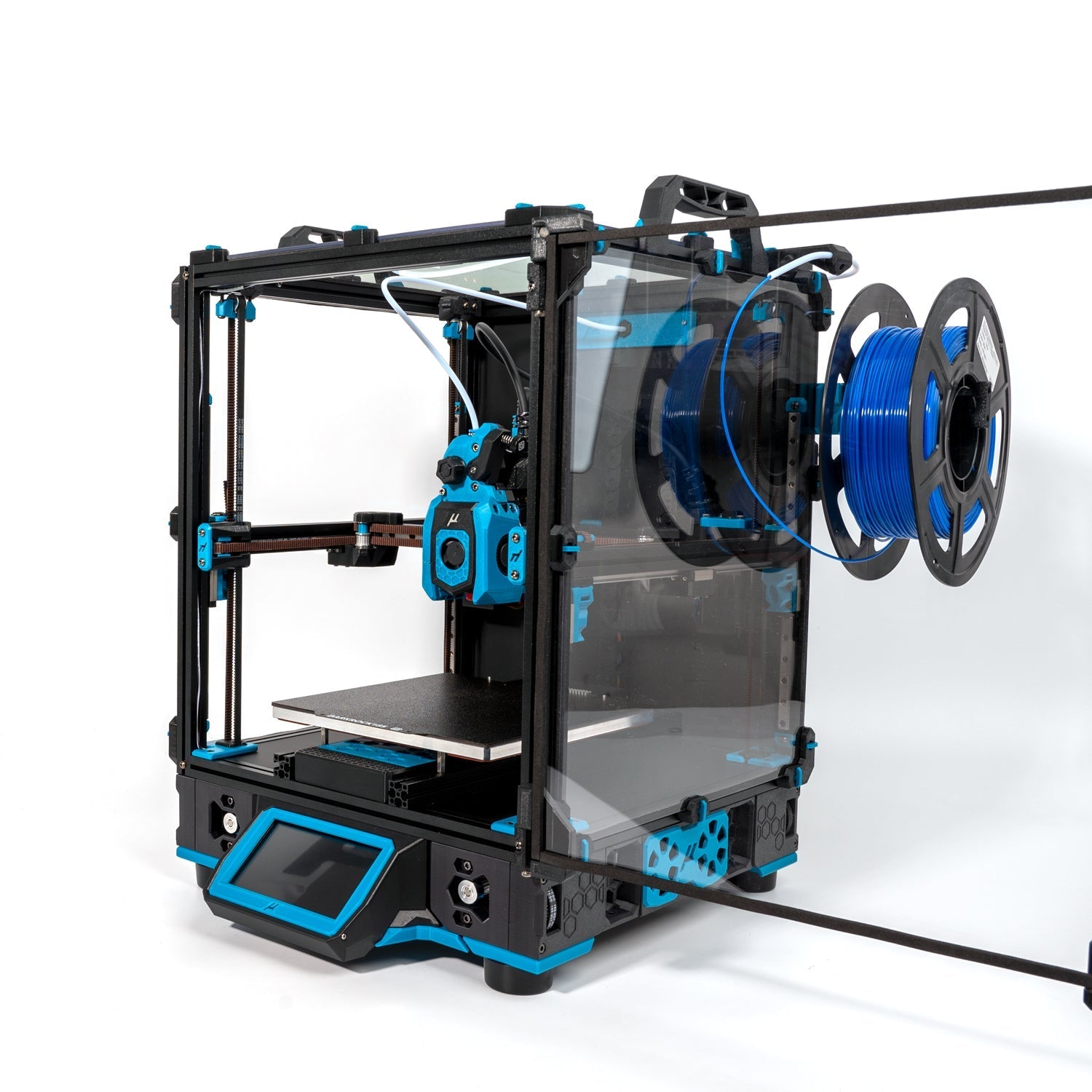

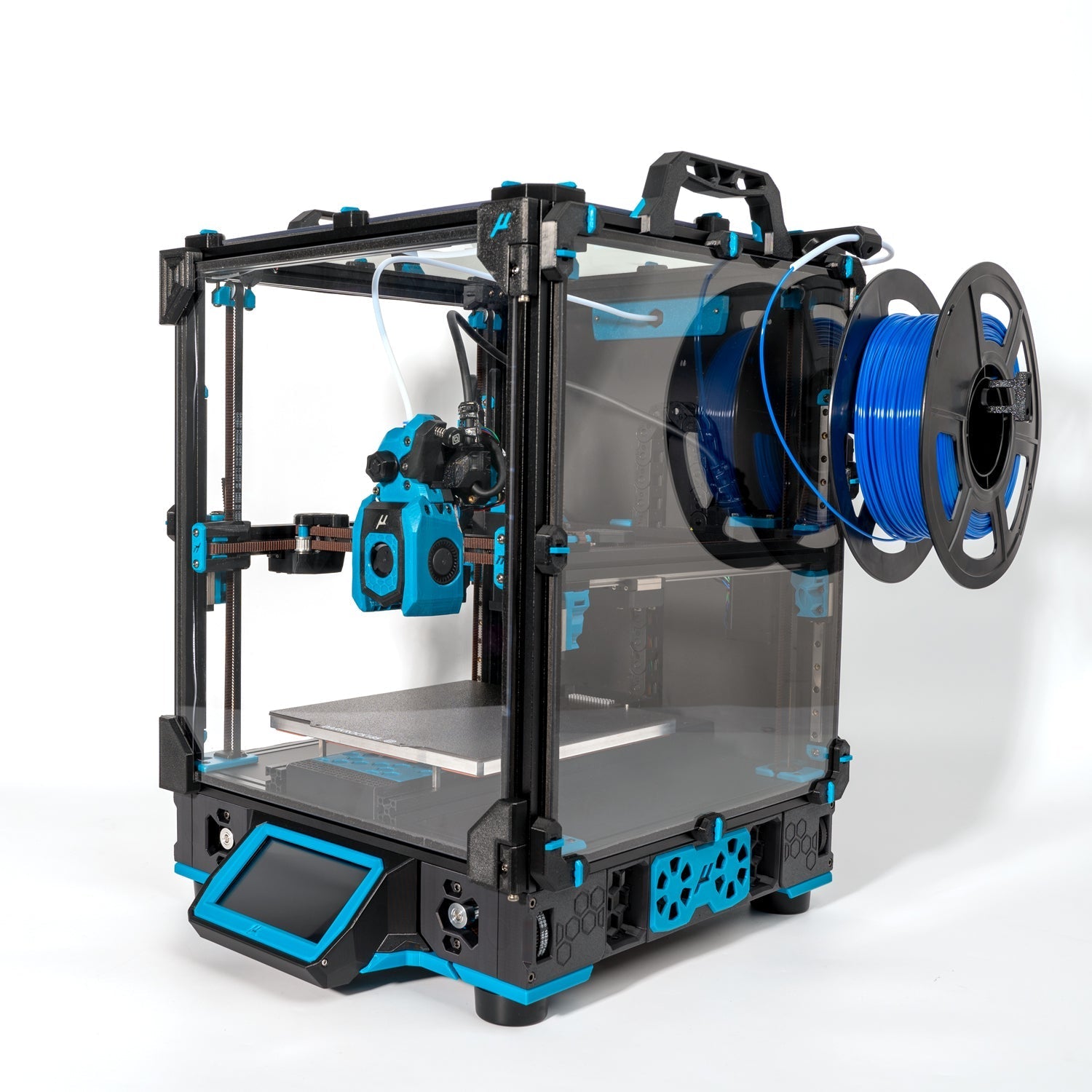

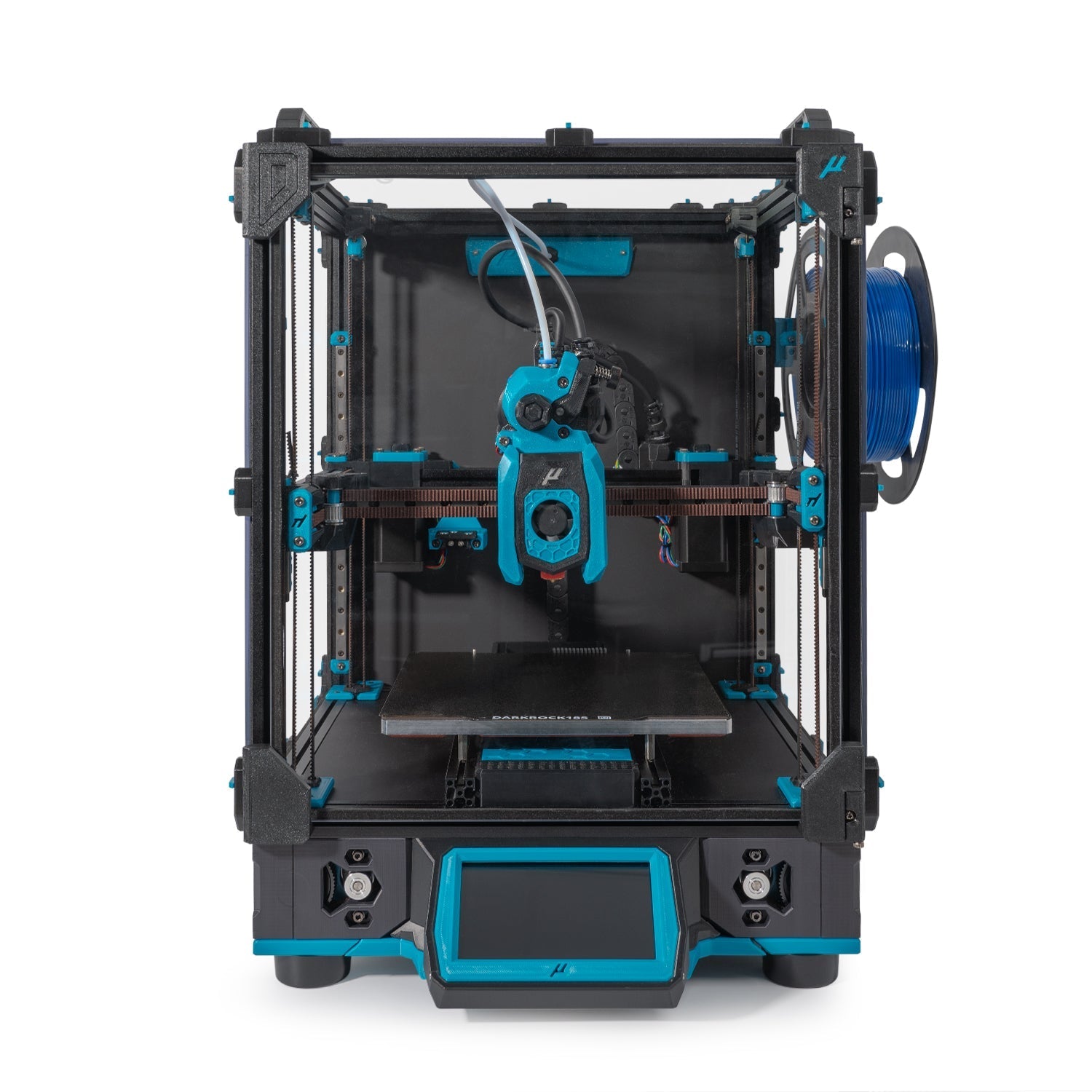

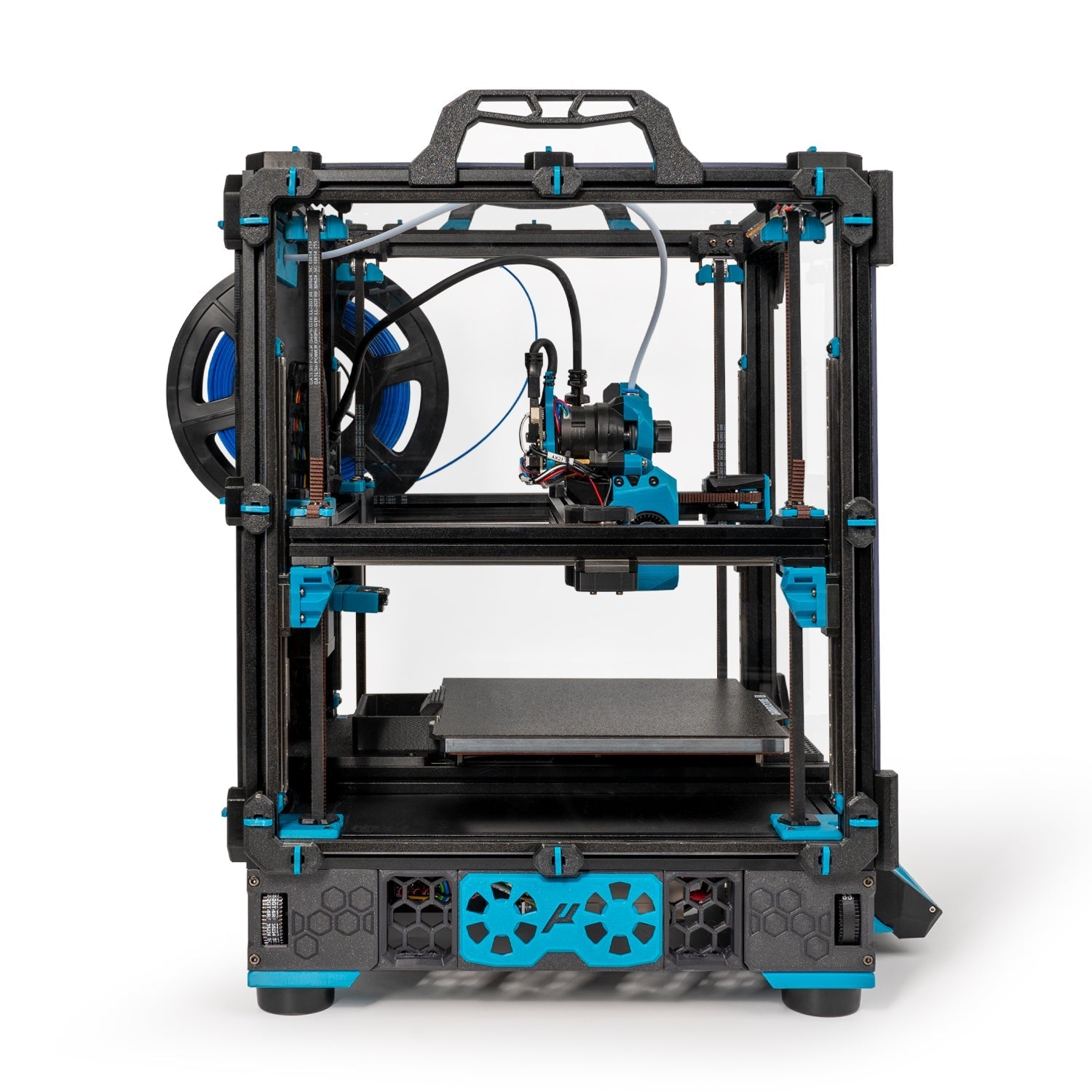

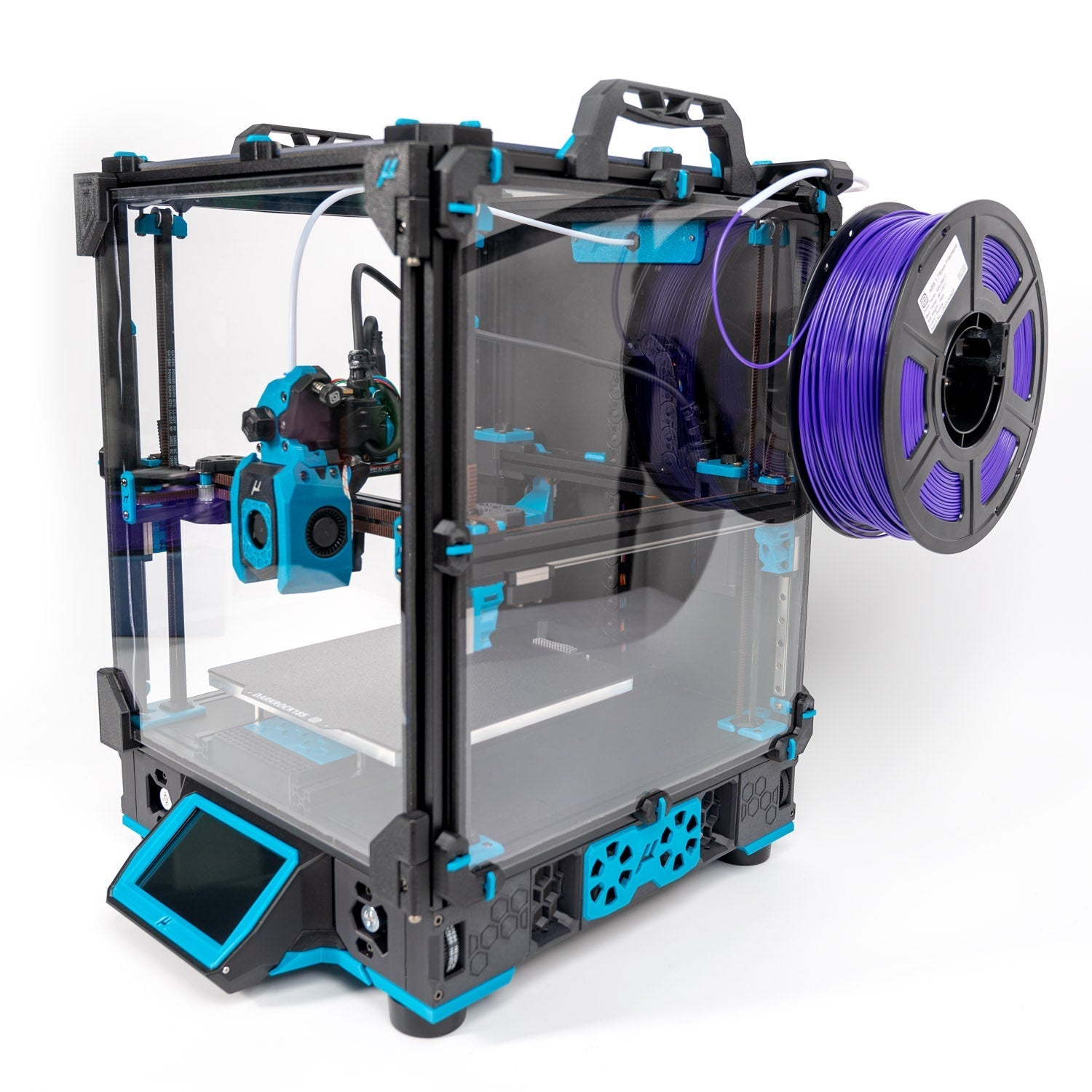

LDO Micron Plus R1 3D Printer Kit
The LDO Micron Plus R1 is a premium CoreXY DIY 3D printer kit designed for high-speed,
high-performance printing in a compact form factor.
This kit includes nearly everything required to build your Micron Plus printer,
excluding printed parts and the hotend.
Special Offer: Get 20% off a compatible hotend when purchased together
with this kit in the same order.
Upgraded R1 Features

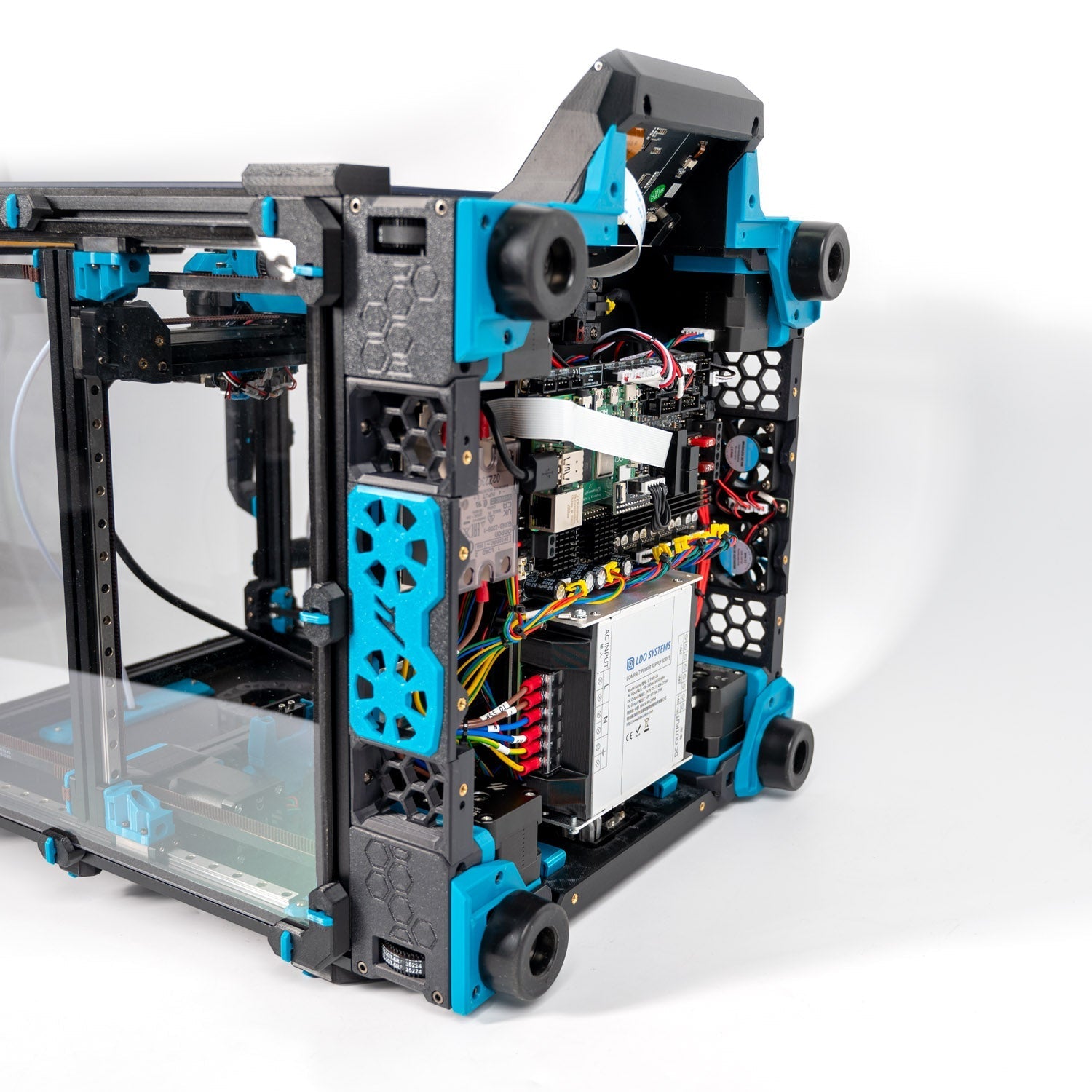

- LDO Leviathan control board

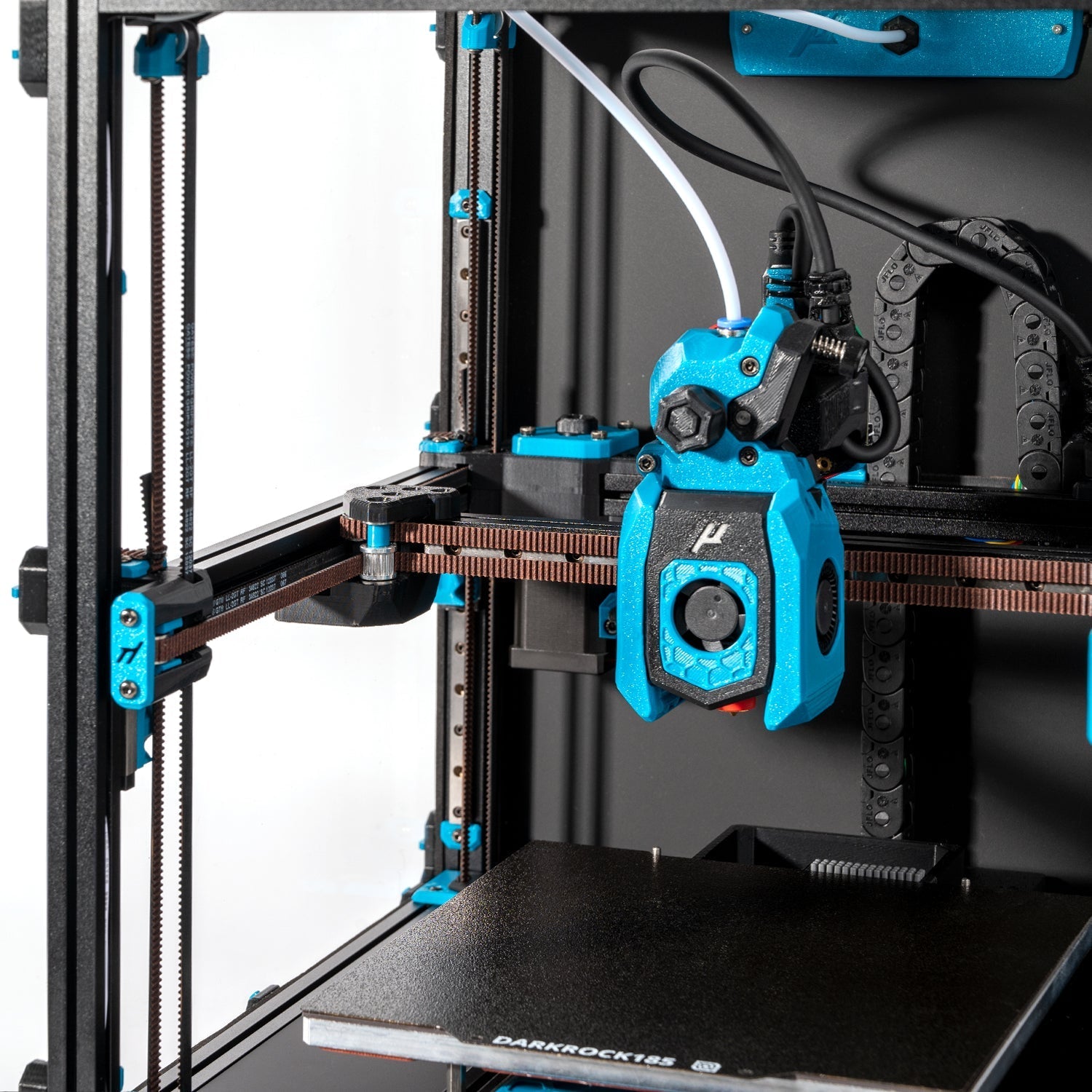

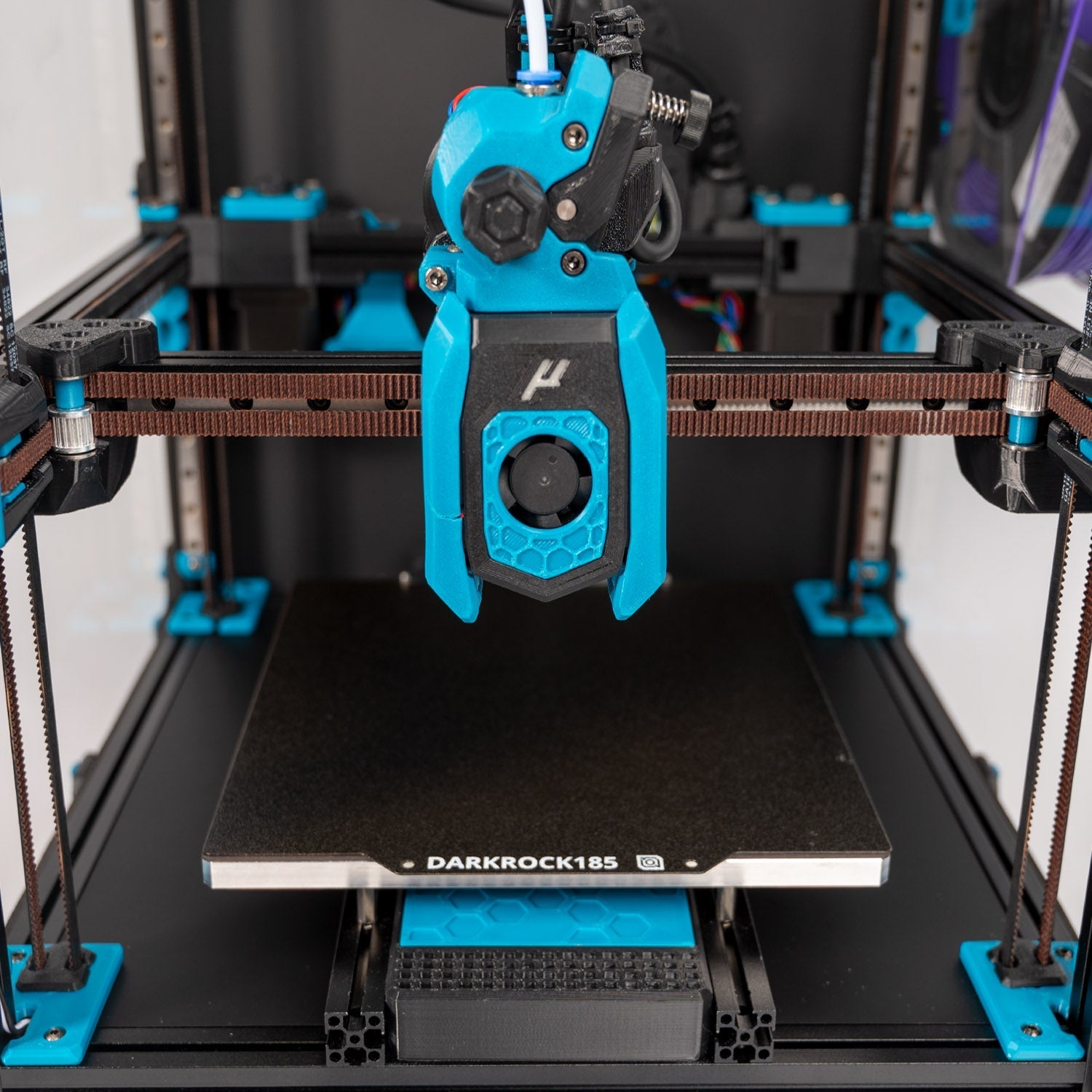

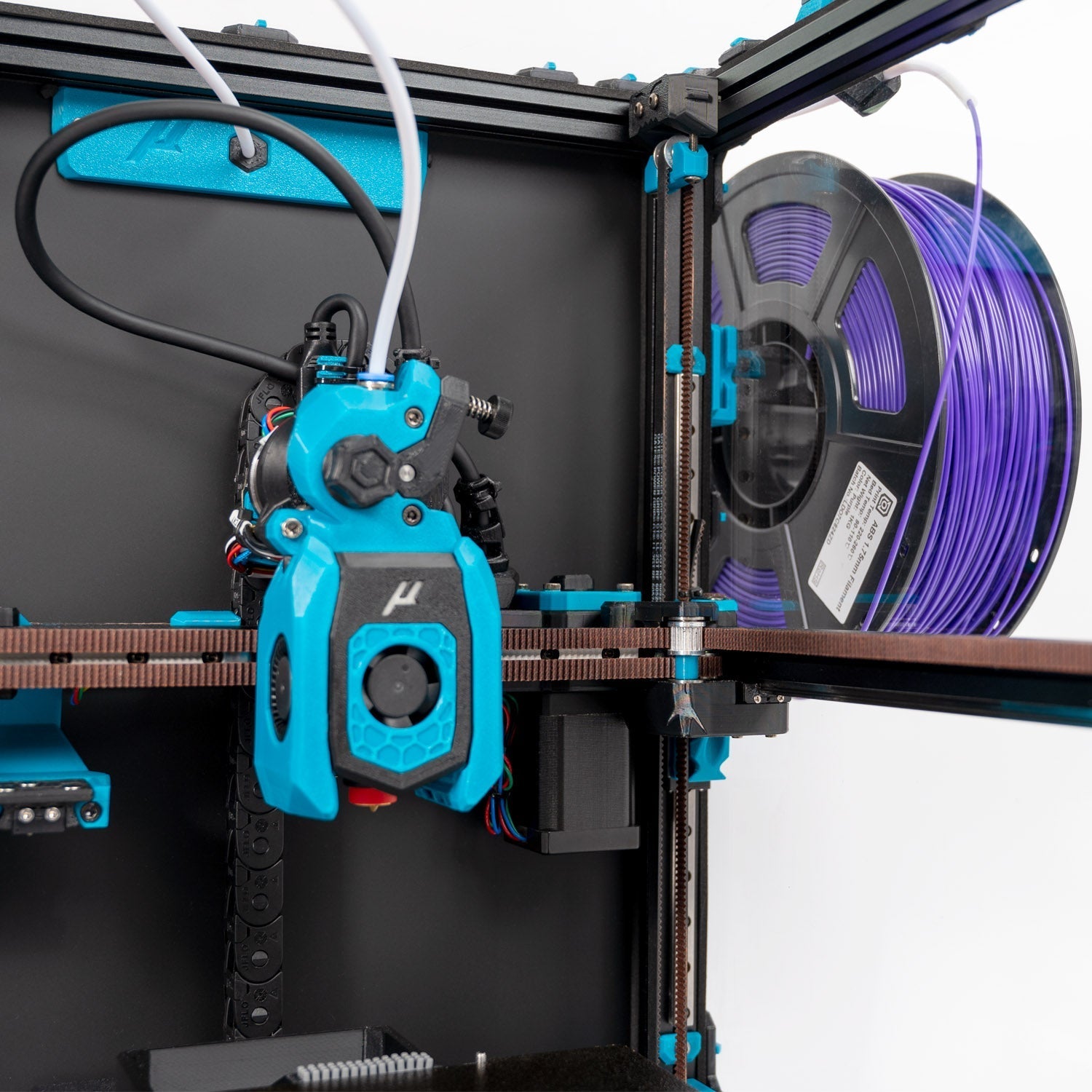

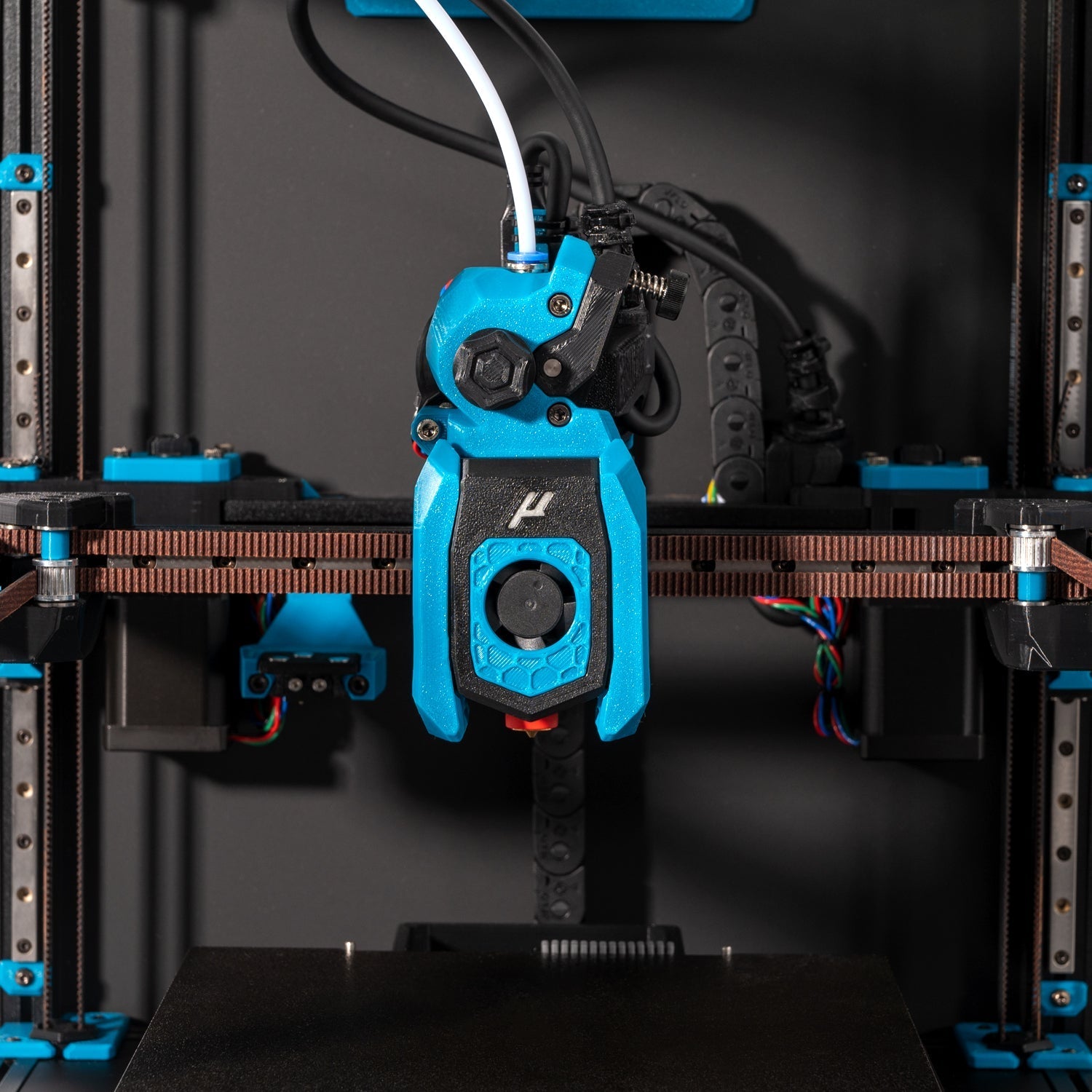

- Nitehawk-36 toolhead board

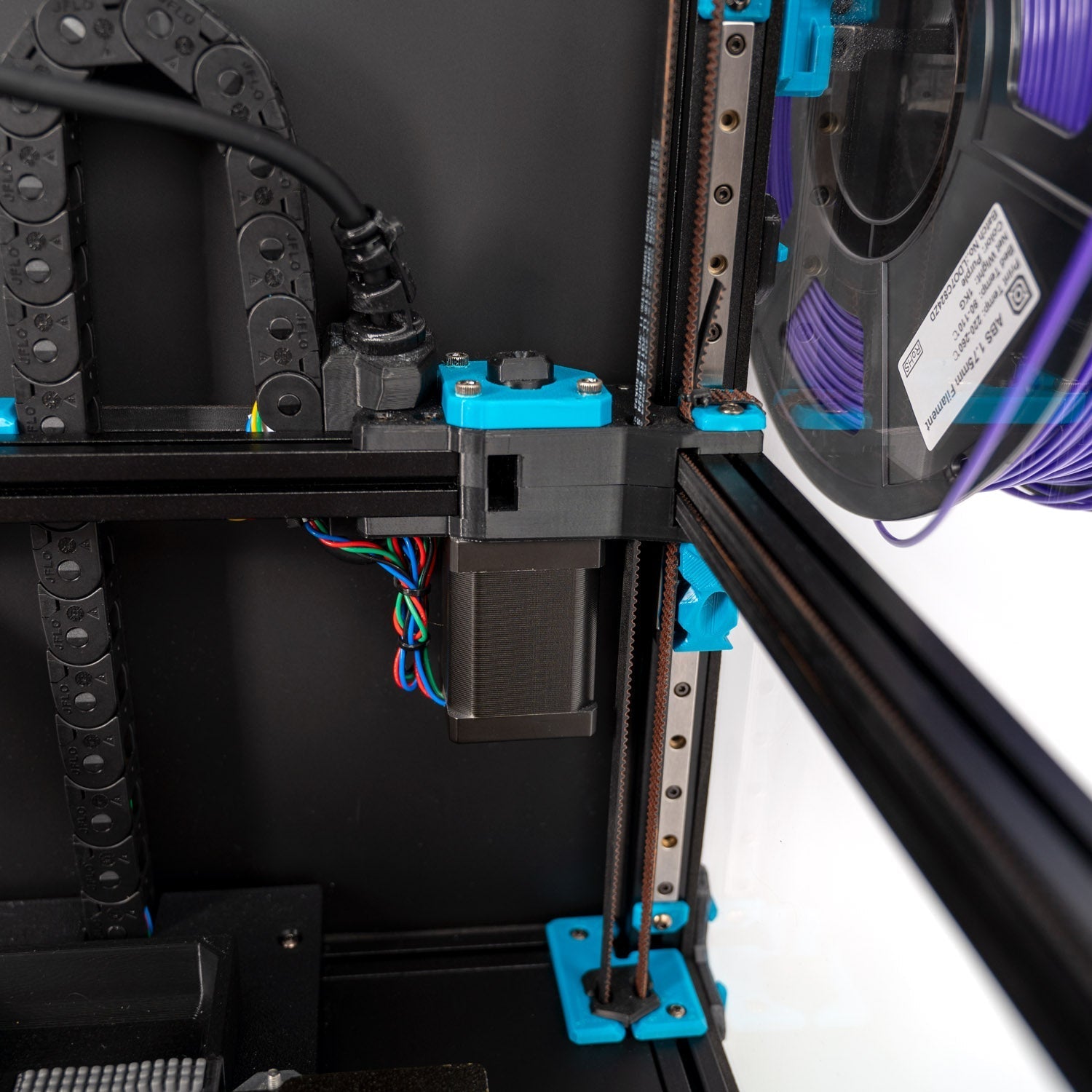

- Double shear motor mount
- LDO-35STH52-2004AH(S35) motors for future AWD compatibility

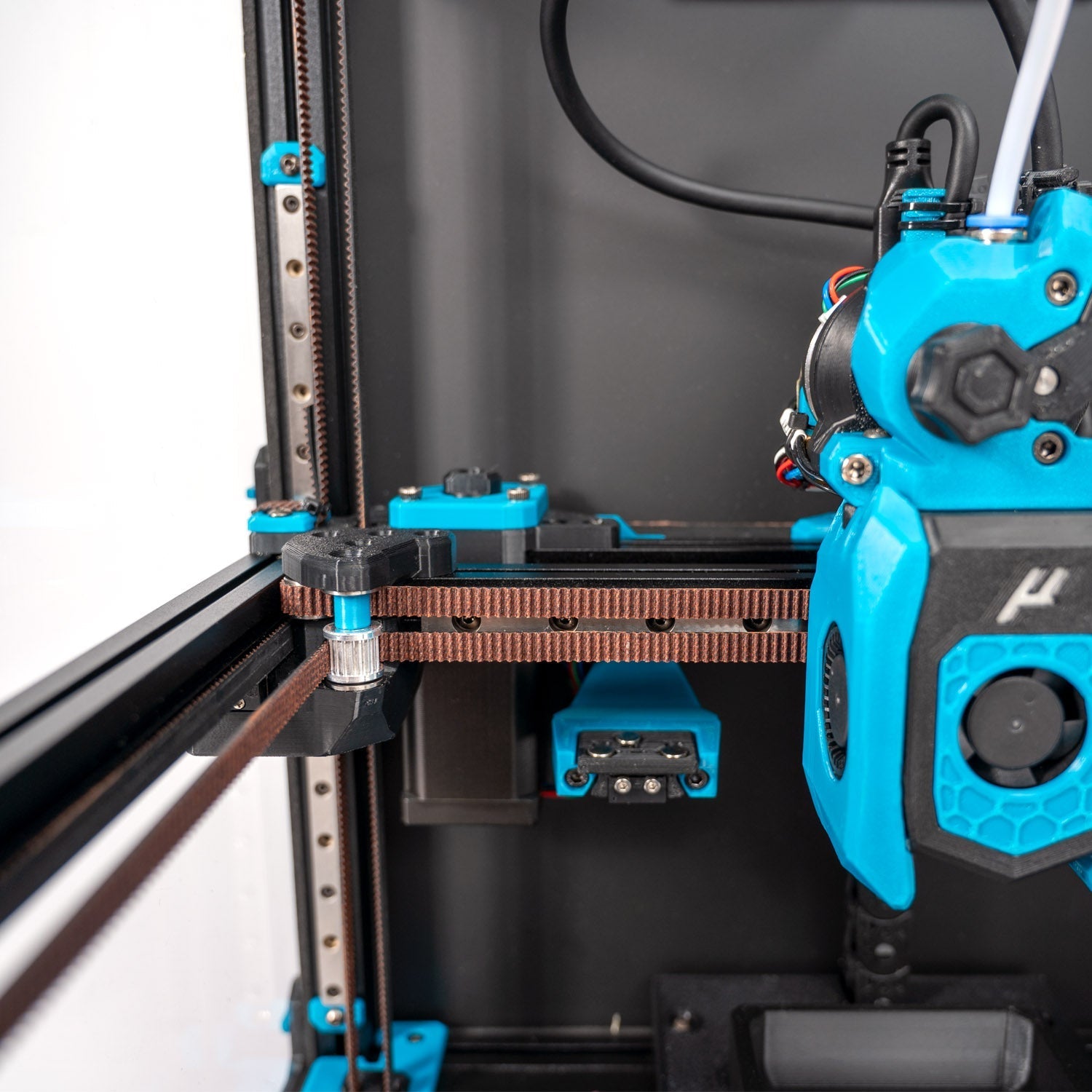

- Live idlers for X/Y joints
- Precision pins for ABZ pulleys
- Custom under-bed PCB for bed fans and filtration
- 300W heated bed for fast warm-up times
- LDO Compact PSU with 275W 24V and 25W 5V outputs
This is the latest R1 revision, tested by original designer HartK and multiple community members.
Exclusive Bonus: Every kit includes a free custom name plate.
Kit Specifications
| Specification |
Details |
| Printer Type |
DIY FDM 3D Printer Kit (Self-Assembly) |
| Model |
LDO Micron Plus R1 |
| Build Volume |
180 × 180 × 165mm |
| Motion System |
CoreXY |
| Mainboard |
LDO Leviathan V1.3 |
| Weight |
11.06kg |
| Pi Board |
Included (Raspberry Pi 4) |
| Supported Filaments |
ABS, ASA, PC, PLA, PETG, TPU |
| Filament Diameter |
1.75mm |
| Print Speed |
Depends on selected hotend |
| Acceleration |
Up to 10,000mm/s² |
| Nozzle Diameter |
0.4mm |
| Hotend Temperature |
Varies by hotend selection |
| Maximum Bed Temperature |
120°C |
| Leveling System |

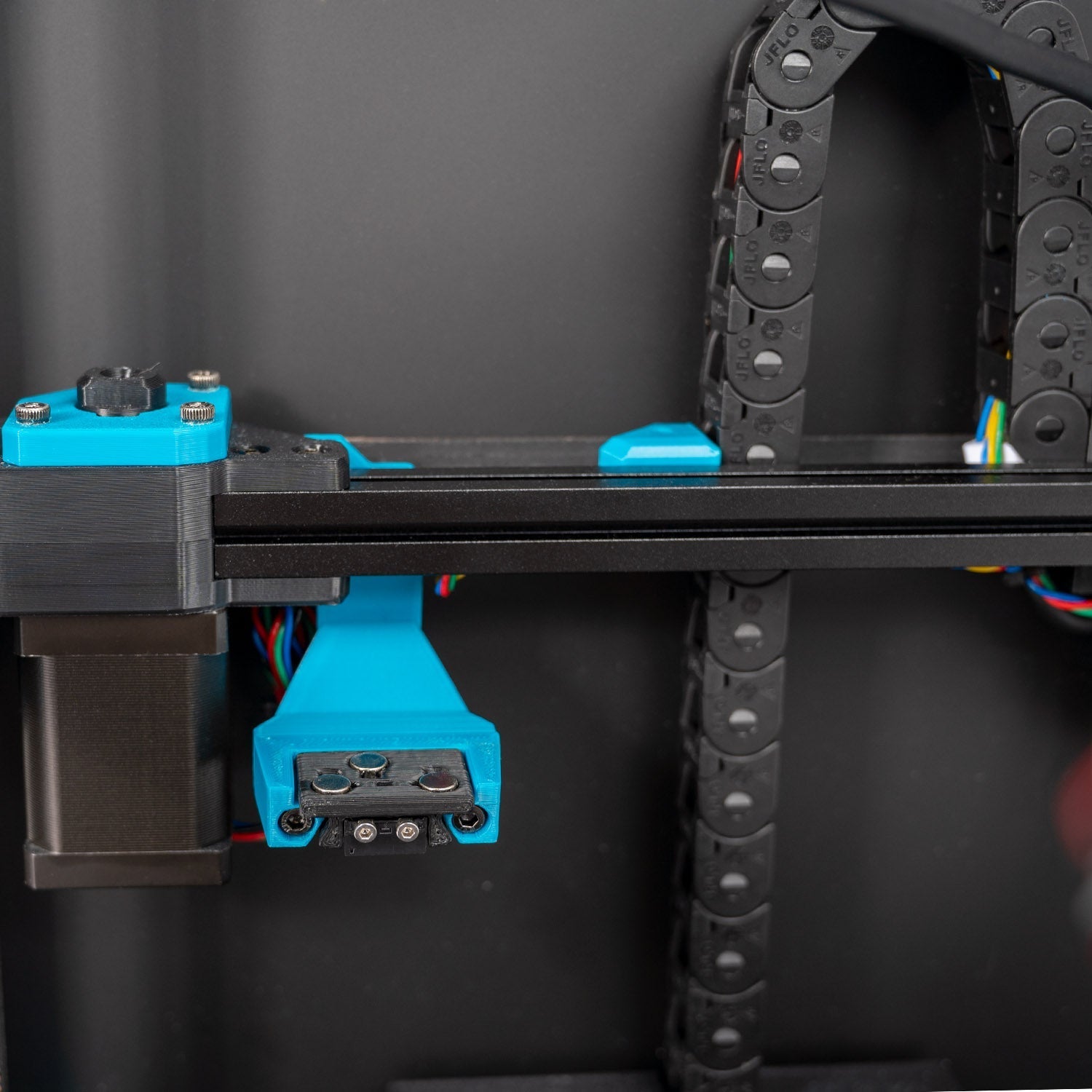

Quad Gantry Leveling (QGL) with Klicky support |
| Display |

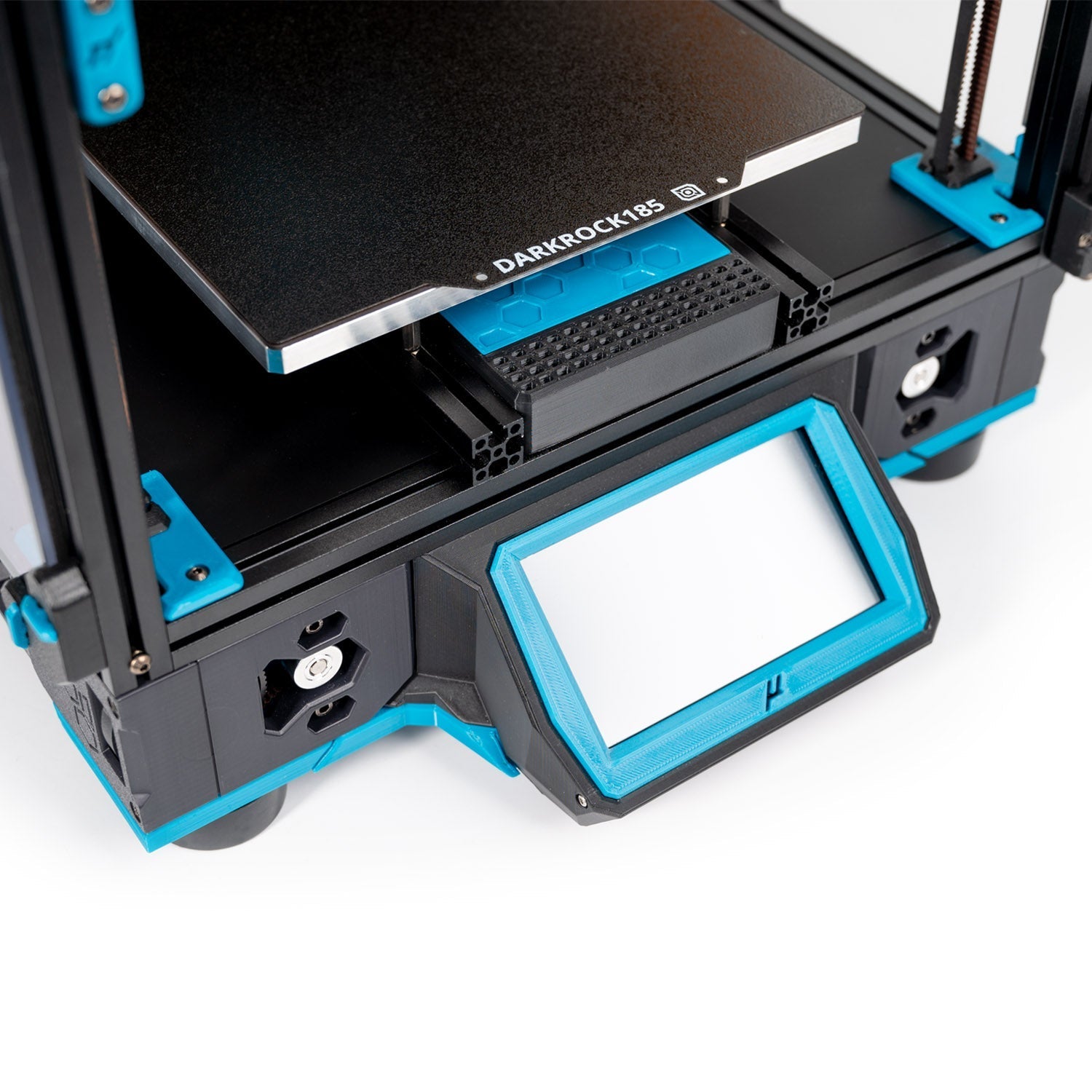

BTT Pi 4.3 touchscreen |
| Slicer Compatibility |
OrcaSlicer |
| Firmware |
Klipper |
Important Notes
- Printed parts are not included.
- Hotend is not included.
- Assembly is required.
- Recommended for intermediate to advanced users familiar with DIY 3D printers.
