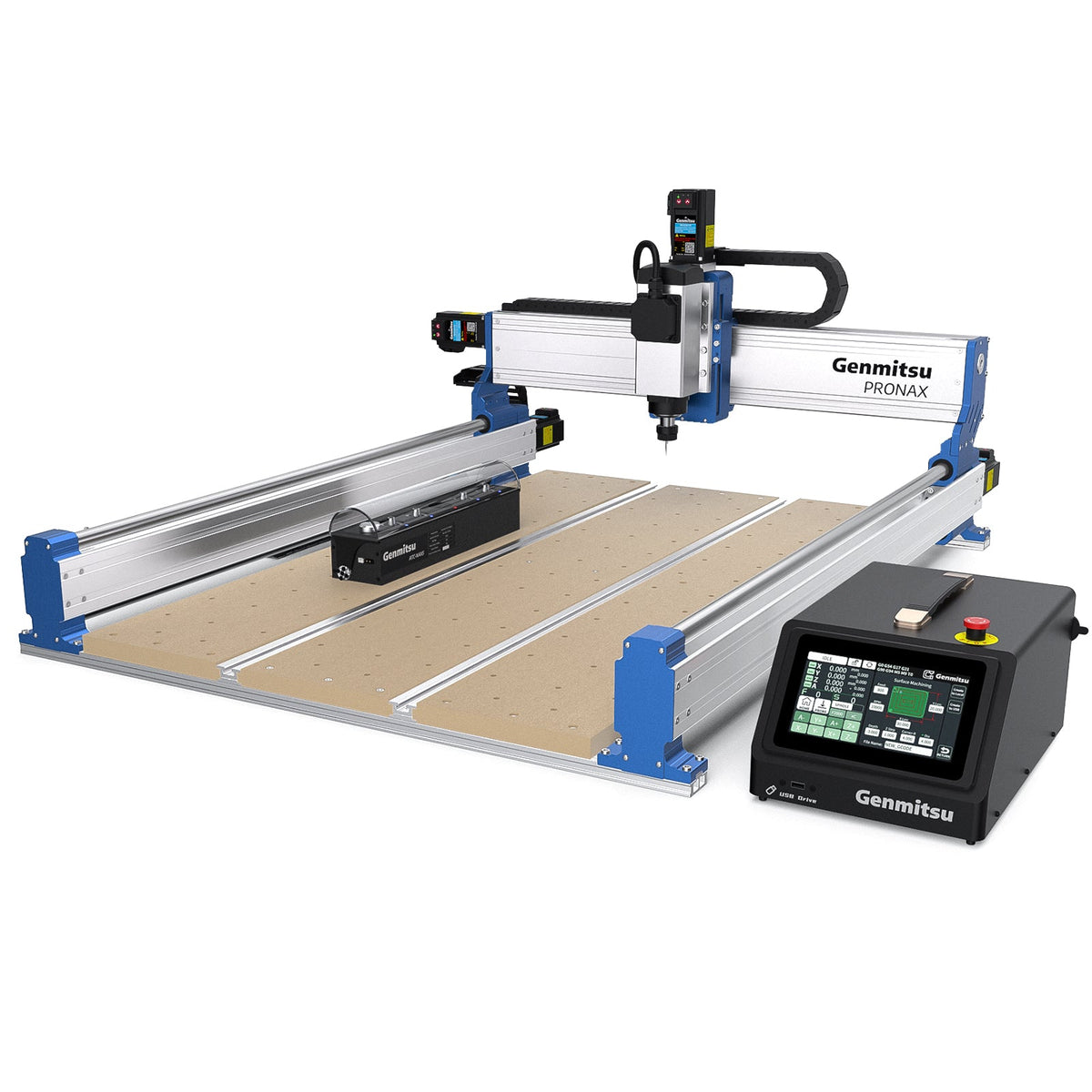

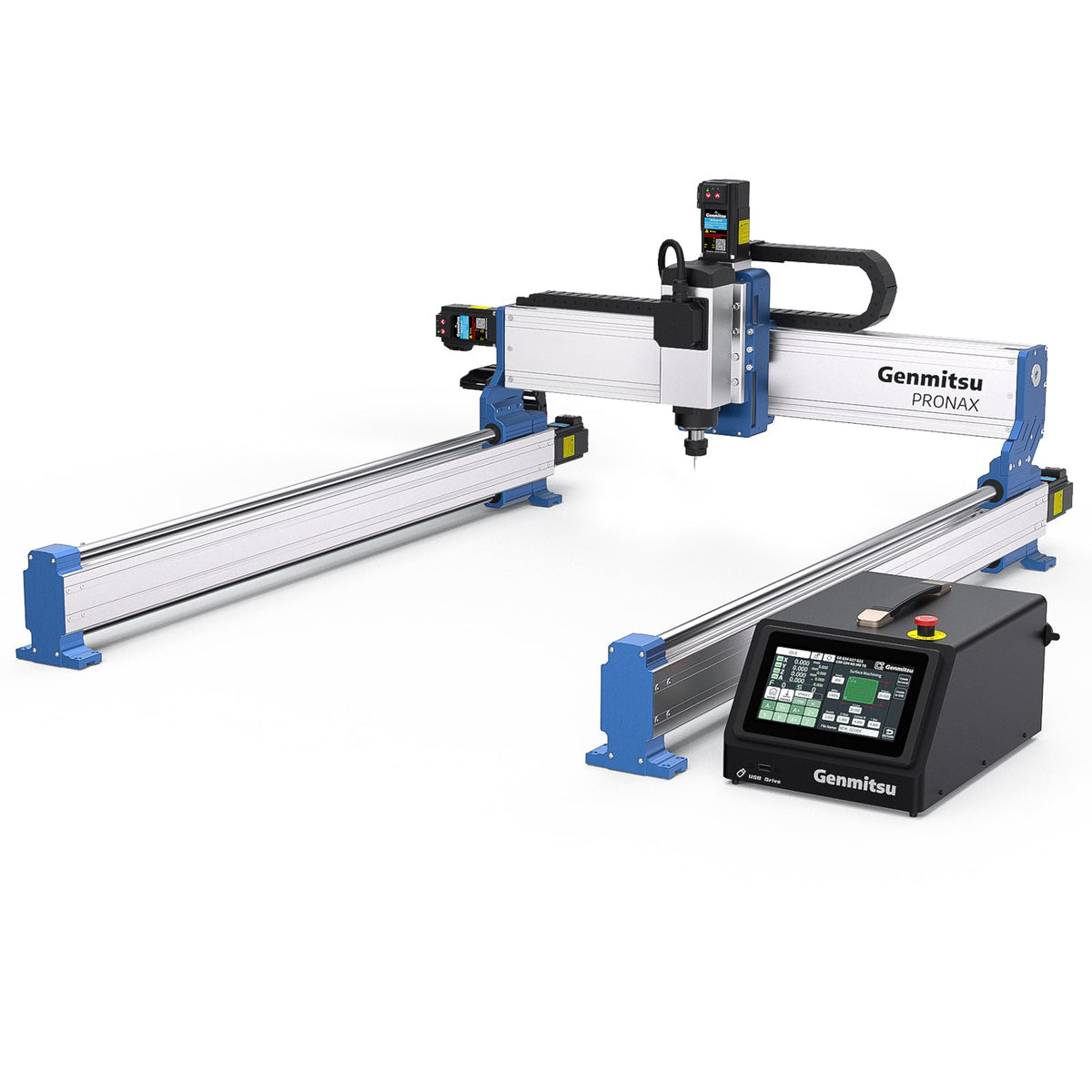

Bridge the gap between desktop CNC carving and full-scale industrial manufacturing with the SainSmart Genmitsu PRONAX Spark 6090 CNC Router Machine. Engineered for growing woodworking studios, sign shops, and small-business fabricators, the PRONAX Spark delivers high-throughput production, repeatable precision, and advanced automated tool-changing capabilities without the massive footprint or expense of industrial machinery.
Featuring a generous 600 mm x 900 mm (6090-class) work envelope, the PRONAX Spark is powered by a high-torque 2.2 kW spindle running up to 18,000 RPM. Outfitted with ER20 collet capability, it accommodates shank diameters up to 13 mm (~1/2 inch) for heavy material removal in hardwoods, plastics, acrylics, soft metals, and composite panels. Driven by ball screws on all axes, linear rails on X and Z, and high-precision induction limit switches, the machine guarantees smooth motion, tight tolerances, and long-term mechanical reliability.

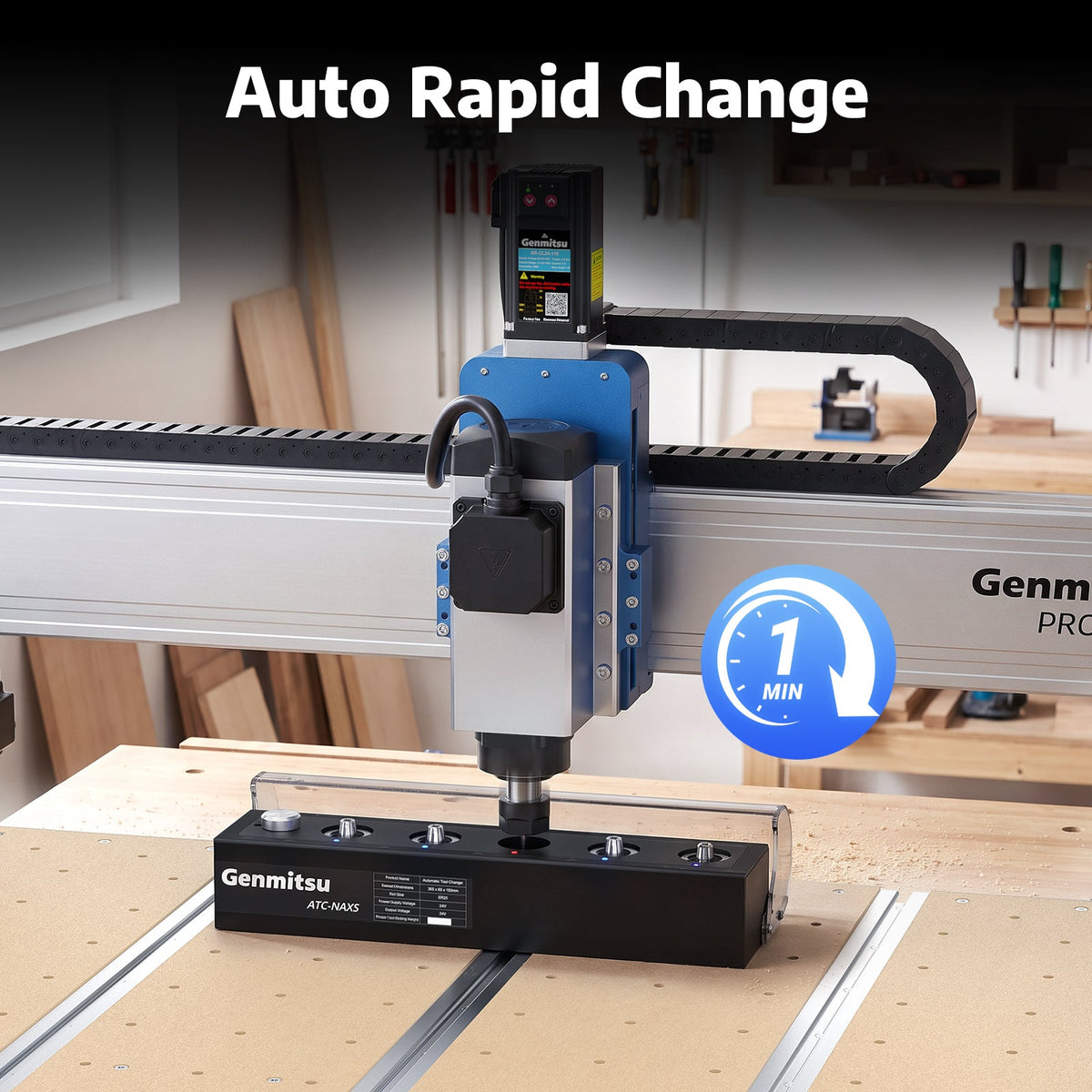

Elevate your shop's efficiency with full support for the NAX5 Automatic Tool Changer (ATC) System. Designed to eliminate manual bit changes and constant re-zeroing, the non-pneumatic 5-tool carriage uses automated spindle torque routines to swap tools seamlessly during multi-pass jobs. Coupled with an end-mounted tool-probing sensor, automated dust shoe pickup, and a 7-inch touchscreen offline controller, the Genmitsu PRONAX Spark turns complex, multi-tool digital designs into finished, sellable products with minimal operator intervention.
Key Features

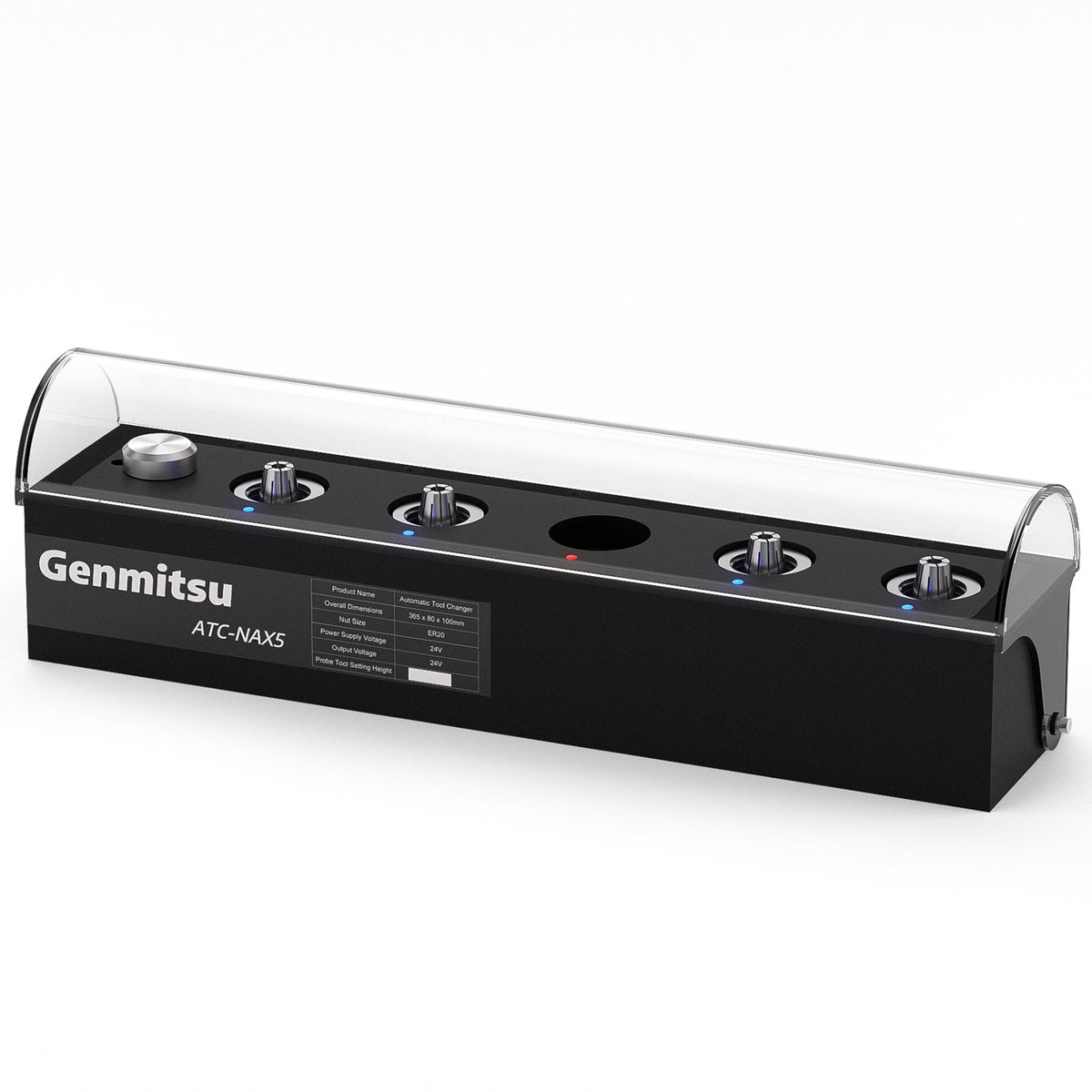

NAX5 ATC System Compatible: Automate multi-tool jobs with a non-pneumatic 5-carriage ER20 tool rack that handles shank diameters up to 13 mm (~1/2") and stick-out lengths up to 75 mm (~3").
Commercial-Grade 2.2 kW Spindle: High-power spindle running up to 18,000 RPM cuts effortlessly through woods, plastics, acrylic, and aluminum at manufacturer-recommended speeds.
6090 Production Work Area: Expansive 600 mm x 900 mm working footprint ideal for cabinet parts, custom signage, jigs, templates, and short-run production.

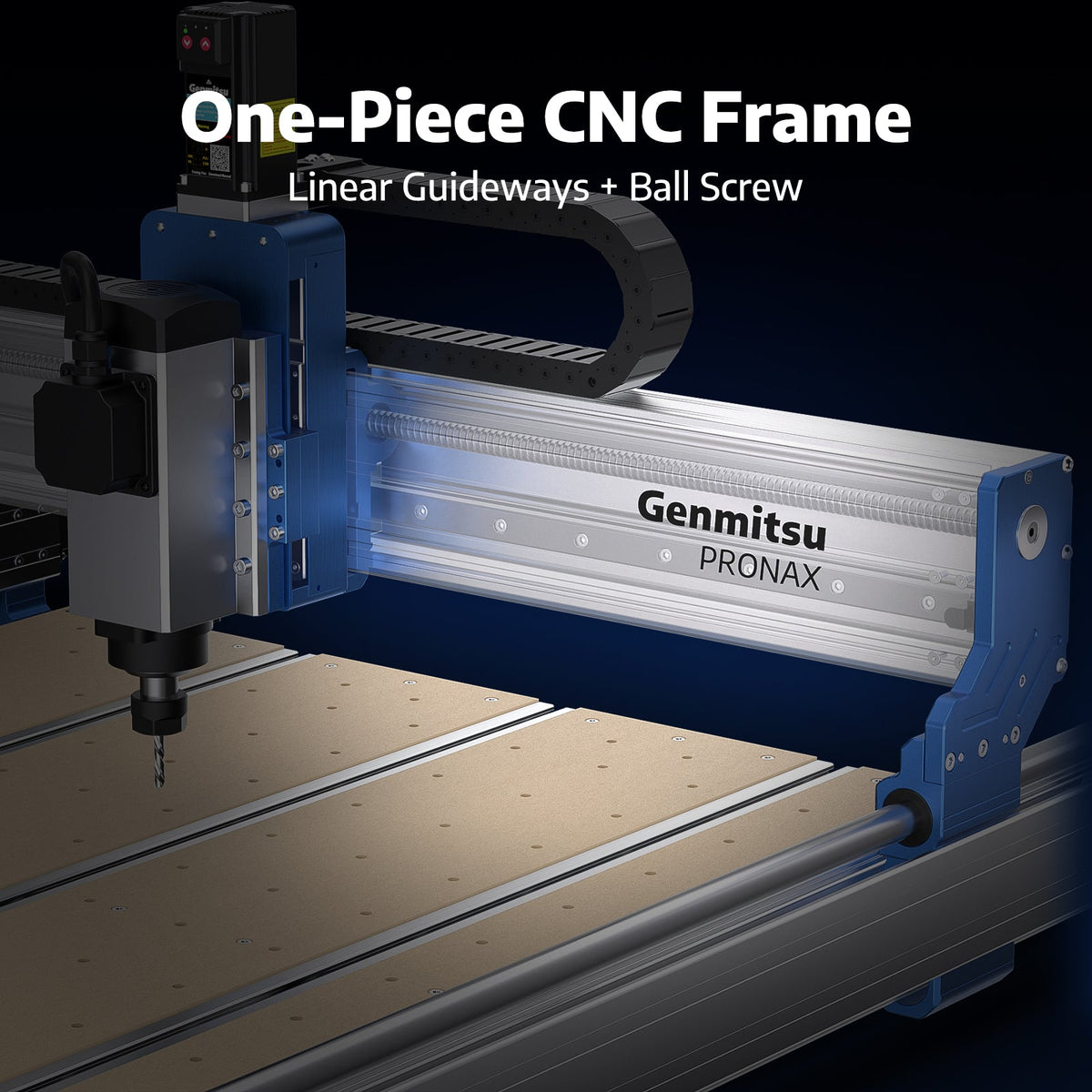

Precision Ball Screw & Linear Rail Motion: Heavy-duty ball screw drives paired with linear rails (X/Z) and optical linear guides (Y) ensure ultra-precise, wobble-free cuts and smooth surface finishes.
Advanced Sensors & Safety Protocols: Equipped with induction limit switches for zero false triggers, active tool-presence detection sensors, and a prominent physical Emergency Stop button.
Automated Tool Offsets & Dust Management: Features an integrated tool setter for automatic Z-height calibration and automated dust shoe engagement/disengagement to keep your workspace clean.

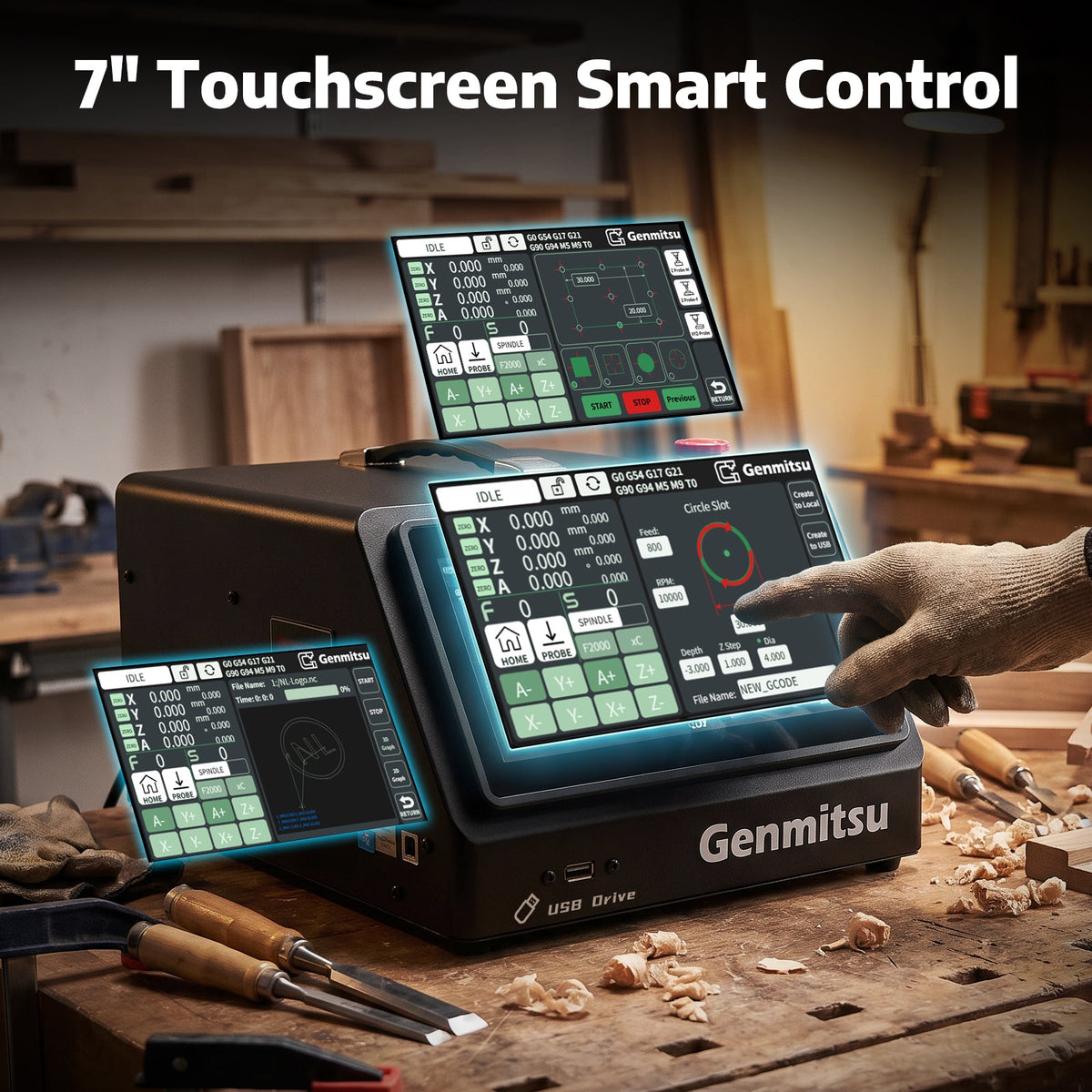

7-Inch Touchscreen Offline Controller: Simple standalone operation via USB drive—no dedicated computer required at the machine during active cutting jobs.
Recommended Applications
Custom woodworking, cabinetry, and furniture joinery
Commercial 2D and 3D signage, lettering, and decorative relief carving
Non-ferrous metal milling (aluminum, brass, copper) and plastic fabrication
Prototyping, fixture design, and mold making for small business operations
Technical Specifications
Parameter
Specification
Brand & Line
SainSmart Genmitsu
Model
PRONAX Spark 6090
Work Area
600 mm x 900 mm (~23.6" x 35.4")
Spindle Power
2.2 kW Water/Air-Cooled Spindle (Up to 18,000 RPM)
Collet Type
ER20 (Supports up to 13 mm / 0.51" shank diameters)
Drive System
Ball Screws on X, Y, and Z Axes
Guide System
Linear Rails (X/Z Axes), Optical Linear Rods (Y Axis)
