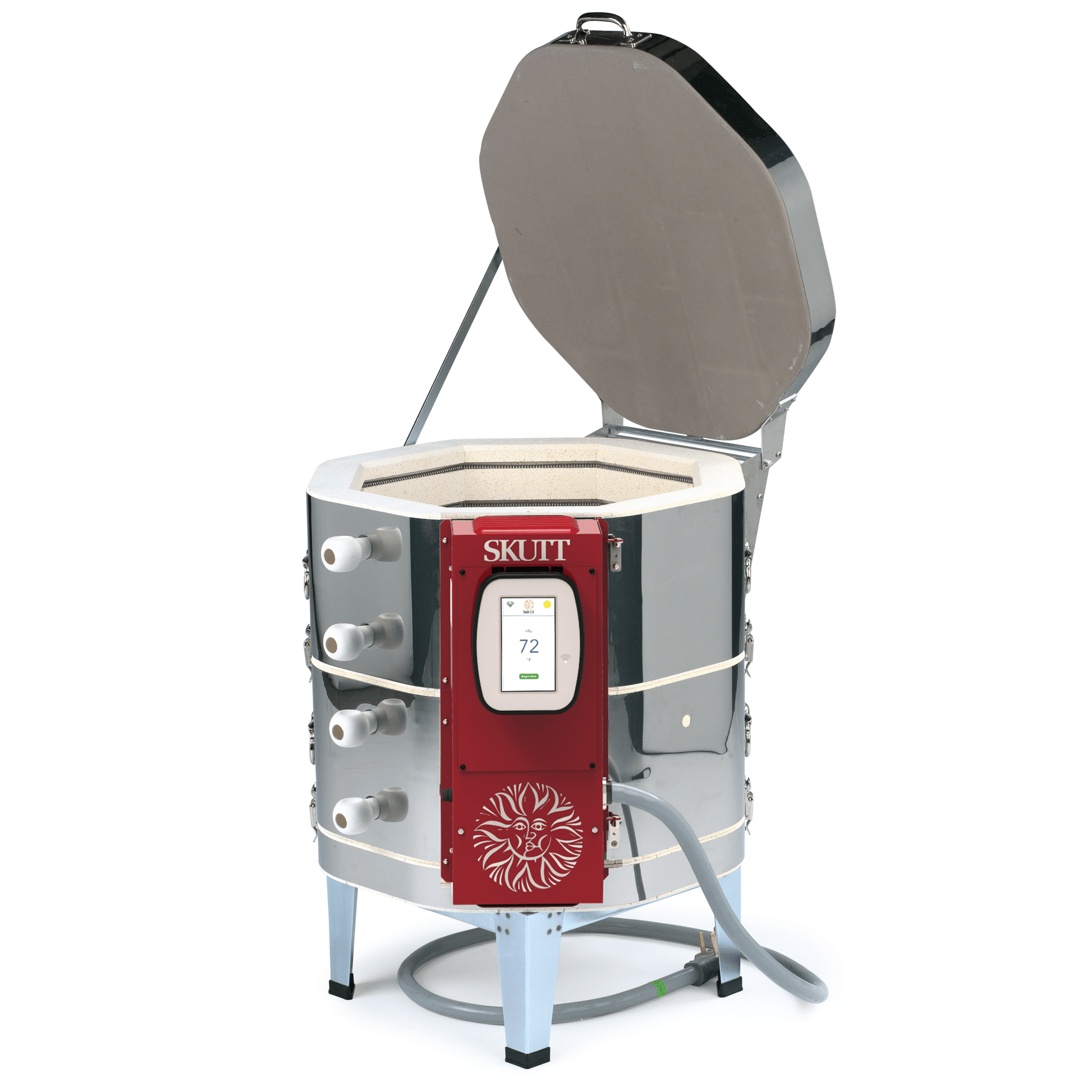

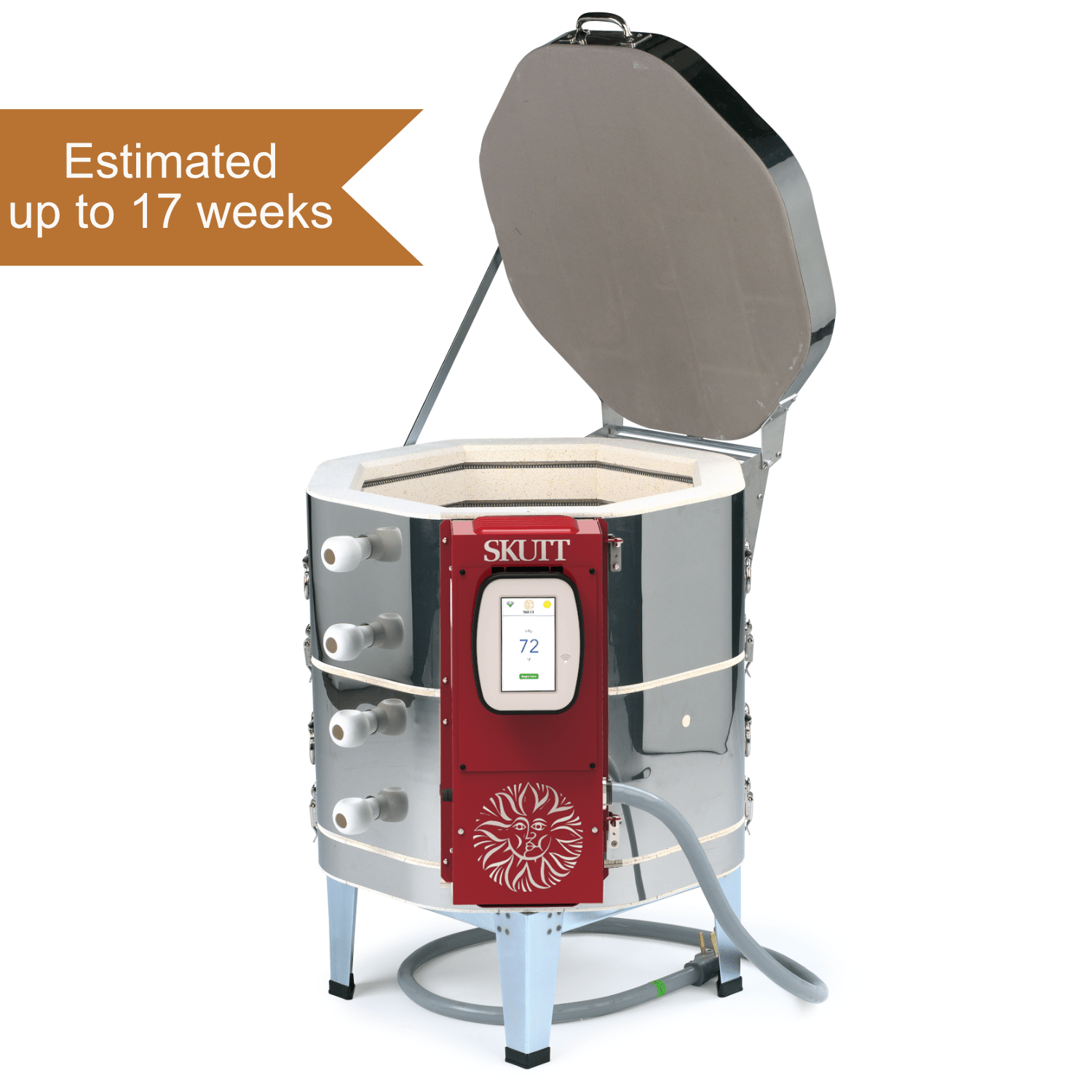

FireX Max Sintering Kiln
The FireX Max Sintering Kiln is designed for sintering metal, ceramic,
and glass 3D printed parts with precision and reliability.
Capable of reaching temperatures up to 1288°C / 2350°F,
this high-performance kiln simplifies the metal sintering workflow with
easy-to-use touchscreen controls and industrial-grade heating capability.
Estimated Lead Time: Up to 17 weeks
How It Works
The sintering workflow is simple:
- 3D print your part
- Pack the part in refractory ballast
- Cover with sintering carbon
- Load into the kiln
- Select your sintering profile and start the cycle
After sintering, your printed parts are transformed into durable,
functional metal components.
Compatible Materials
- Bronze
- Copper
- H13 Tool Steel
- Inconel 718
- M300 Tool Steel
- Stainless Steel 17-4
- Stainless Steel 316L
- Pyrex® (Borosilicate)
- Amaco 46-D
Electrical Specifications
| Specification |
Details |
| Power Input |
240V, 26.7A, 6400W, Single Phase |
| Alternate Power Input |
208V, 26.7A, 5550W, Single Phase |
| Maximum Temperature |
1288°C / 2350°F |
| Controller |
KilnMaster Touchscreen |
| Plug Type |
6-50P |
| Certification |
UL Listed |
Dimensions
| Measurement |
Dimensions |
| Sintering Chamber |
16.5" Diameter × 18" Depth (419mm × 457mm) |
| Outer Dimensions |
22.5" Diameter × 32" Height (572mm × 813mm) |
| Shipping Weight |
Approximately 145lbs |
Important Safety Information
Proper ventilation is required during operation. This kiln operates at
extremely high temperatures and should be used with appropriate safety
precautions and protective equipment.
Availability: USA only.
Shipping is not included in the listed price.
Estimated Lead Time: Up to 17 weeks
