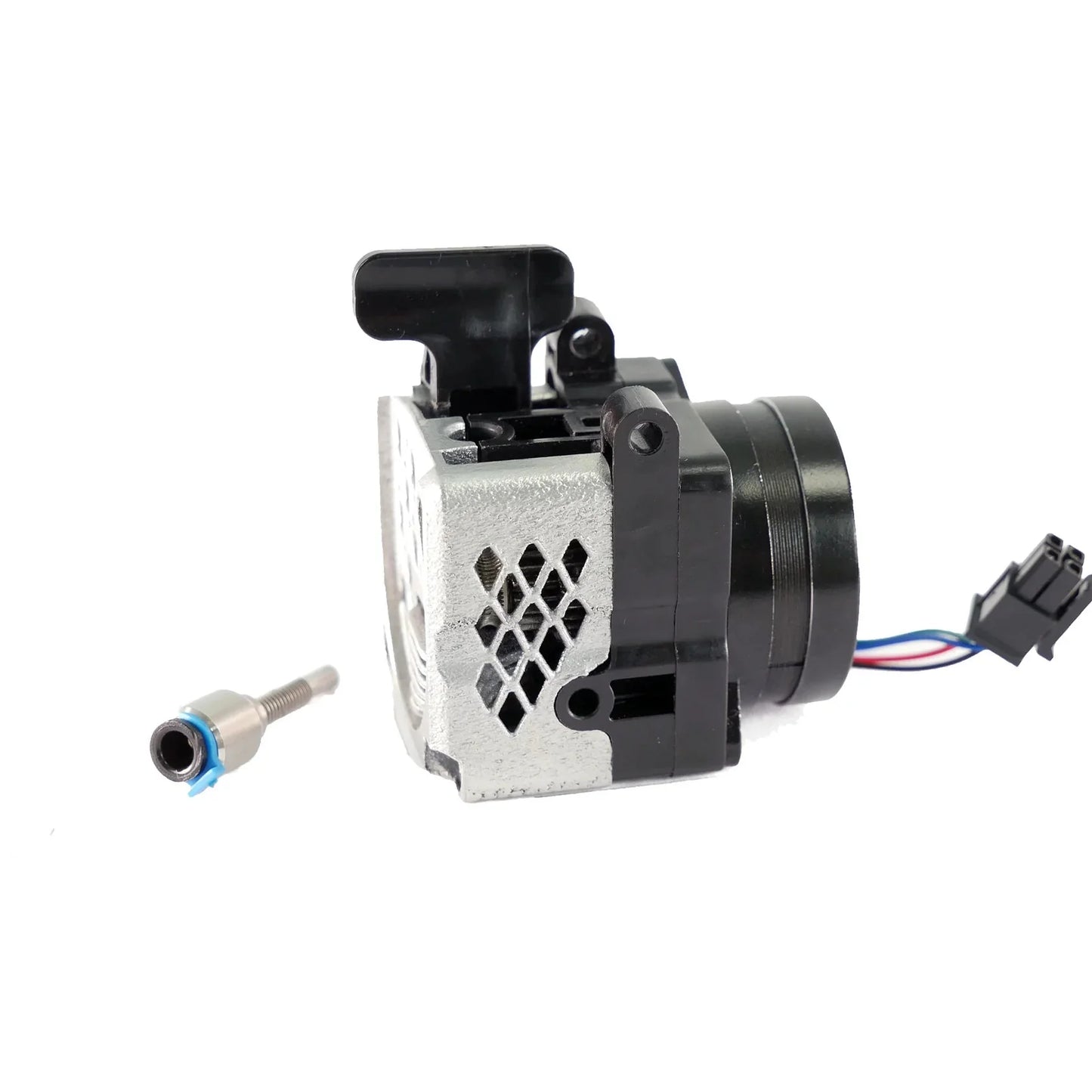

E3D Roto Ultra-Lightweight Direct Drive Extruder

Meet the ultimate companion for your rapid-swap ecosystem: the E3D Roto Extruder. Specifically engineered to balance ultra-low toolhead weight with relentless pushing force, the Roto is the most power-dense 3D printing extruder on the market. Weighing in at an incredible 140 grams, it allows you to accelerate your 3D printer's motion system to its limits without creating resonance artifacts or ghosting.

By pairing a high-efficiency multi-stage gearbox with an industry-first 3D-printed metal heatsink, the E3D Roto removes mechanical and thermal bottlenecks to fully feed your high-flow toolhead setup.

Lightweight Yet Full of Force

Don't let its miniature footprint fool you. The Roto drivetrain is built for uncompromising extrusion consistency under heavy backpressure:

• Advanced Gear Train: Utilizes an 11.262:1 gear ratio consisting of a planetary initial stage, a spur secondary stage, and a dual-hobb third stage.
• 70N+ Extrusion Pushing Force: Easily generates enough force to continuously feed engineering filaments and utilize Revo High Flow nozzles at their maximum volumetric melt capacities.
• Favorable Failure Mode: Optimized to cause a safe motor stall rather than grinding a notch into your filament line if a hardware restriction or jam occurs.

Maintenance-Minded Engineering

E3D built the Roto with simple, straightforward maintenance at its core, minimizing machine downtime in busy workshop environments:

• In-Situ Hobb Access: Need to inspect or clean the drive gears? Simply remove three bolts to slide away the heatsink and filament path. The structural body stays firmly mounted to your print toolhead.
• Bi-Stable Filament Tensioner: Features a simplified tensioning toggle. Flick it one way for optimal, factory-set drive tension; flick it the other way to completely release pressure for effortless filament loading and clean cold pulls. Swap your nozzle and clear filament with one hand.

Advanced 3D-Printed Metal Heatsink

The Roto features a cutting-edge heatsink manufactured via Selective Laser Melting (SLM) metal 3D printing. This manufacturing freedom yields elite thermal performance:

• Defeat Heat Creep: The specialized geometry actively restricts heat migration from the melt zone via conductive isolation.
• Air-Break Disruptor: Directs active airflow through an integrated air-break, disrupting radiating heat from the heater block to maintain sharp filament thermal transitions.

Choose Your Configuration: Standard or Smart

Select the setup that perfectly integrates with your machine's firmware and your personal workflow needs:

• Standard Kit: The essential foundation for absolute lightweight mechanical performance and dual-hobb pushing power.

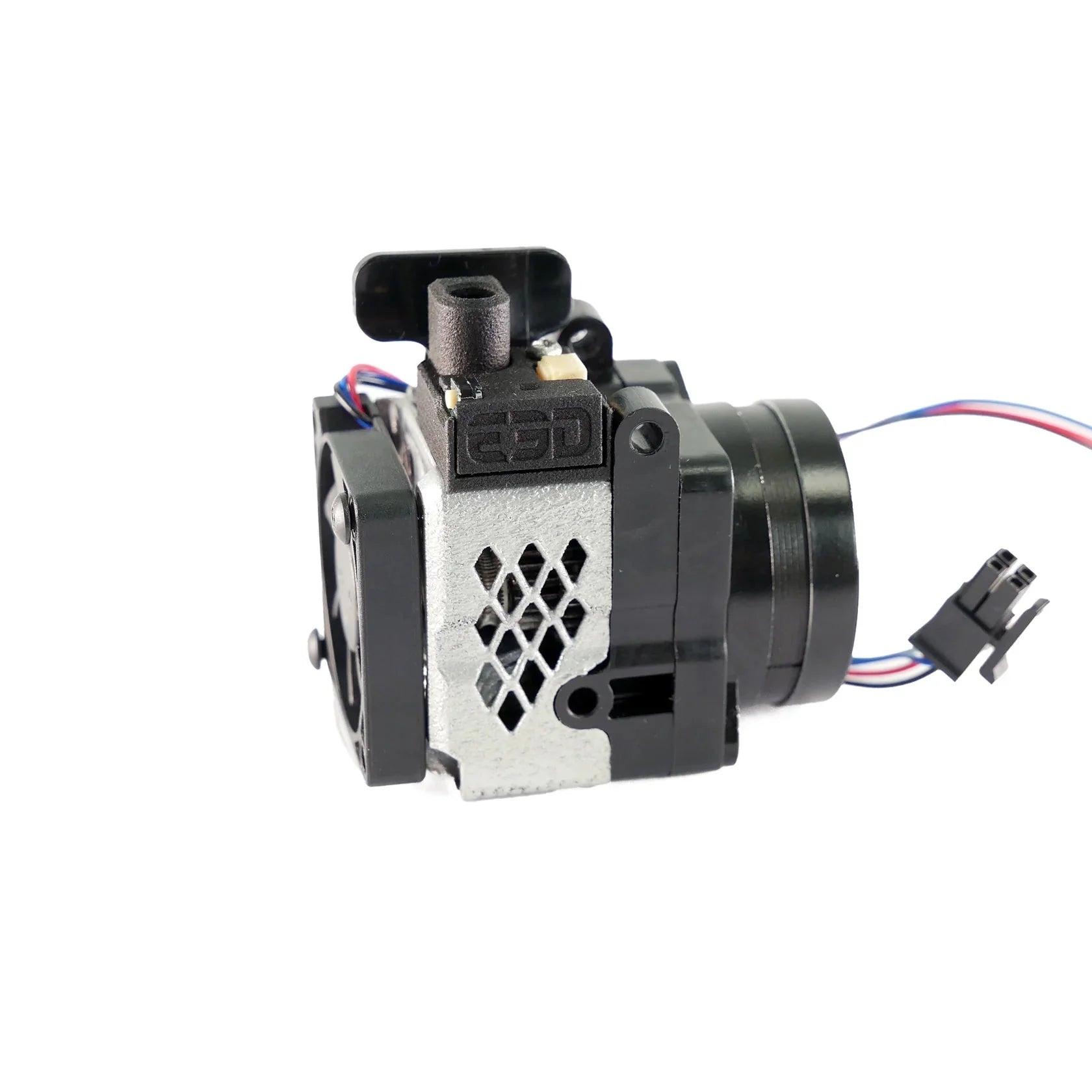

• Sensored Kit: Adds an array of remote monitoring diagnostics directly to your printer. Features built-in filament monitoring, an action button, fan speed feedback, and heatsink temperature sensors to catch anomalies before they cause a print failure.
• Bowden Kit: Includes the specialized Bowdaptor parts to use the Roto as a powerful, ultra-consistent frame-mounted Bowden drive.

Technical Specifications

• Extruder Mass: 146g (Assembly base)
• Extrusion Force: 70N+
• Filament Diameter: 1.75 mm
• Gear Ratio: 11.262:1
• Recommended Motor Current: 0.45A Peak
• Operational Environment Temp Rating: 40°C
• *Note: Roto may become the performance bottleneck if paired with extreme, extended melt-zone setups like the SuperVolcano.*

What's Included

Standard Roto Kit:

• 1 x Revo Motor with integrated cable
• 1 x 2-Wire cooling fan with cable
• 1 x Mechanical fixings kit
• 1 x Roto cold-side assembly
• 1 x Length of Bowden tubing

Sensored Roto Kit:

• 1 x Revo Motor with integrated cable
• 1 x 3-Wire feedback fan with cable
• 1 x Mechanical fixings kit
• 1 x Roto cold-side assembly
• 1 x Heatsink thermistor sensor with cable
• 1 x Filament sensor with cable
• 1 x Length of Bowden tubing

Bowden Roto Kit:

• 1 x Revo Motor with integrated cable
• 1 x Mechanical fixings kit
• 1 x Roto Bowdaptor mount
• 2 x Specialized heatsink washers
• 1 x Length of Bowden tubing
