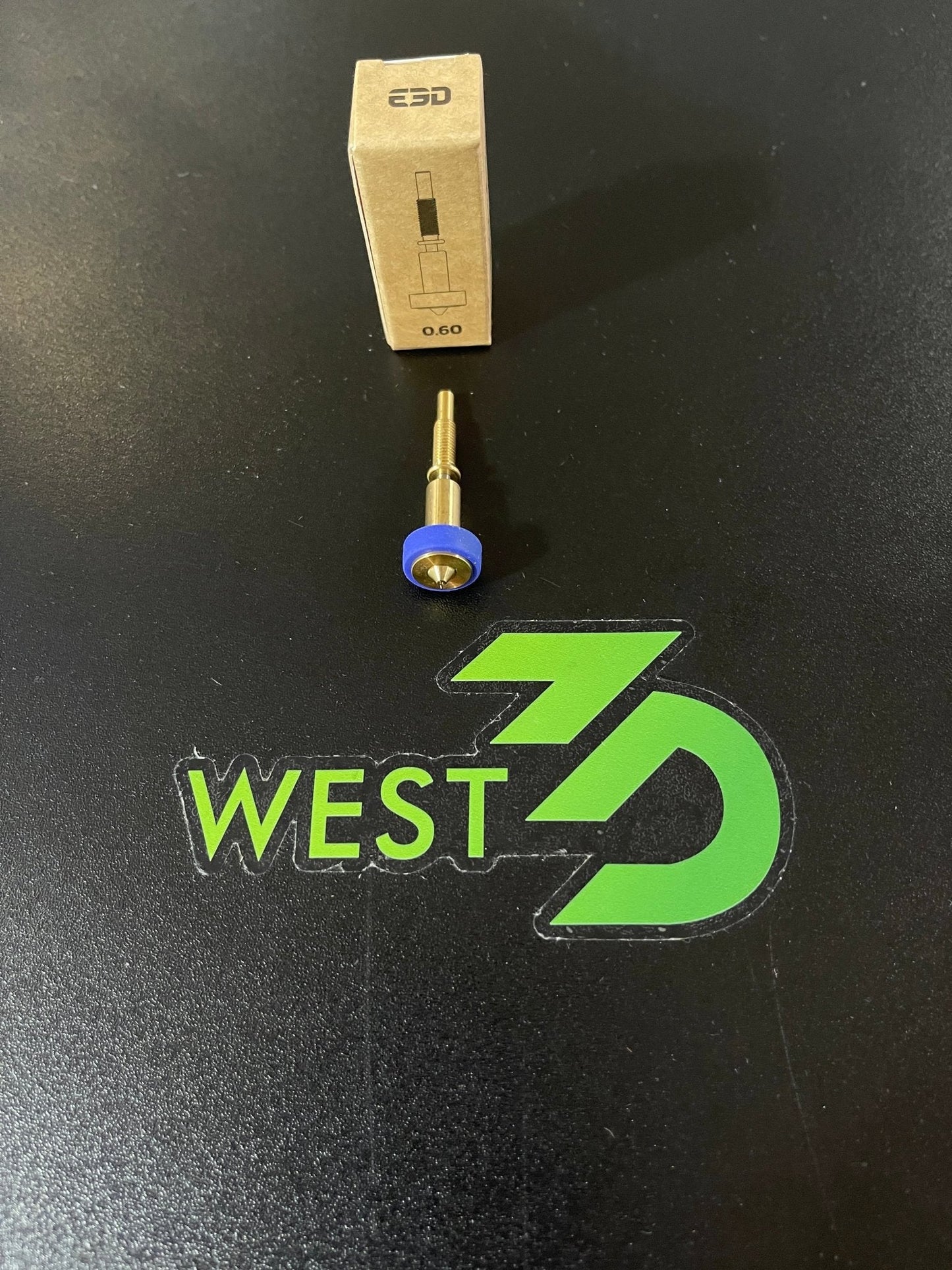

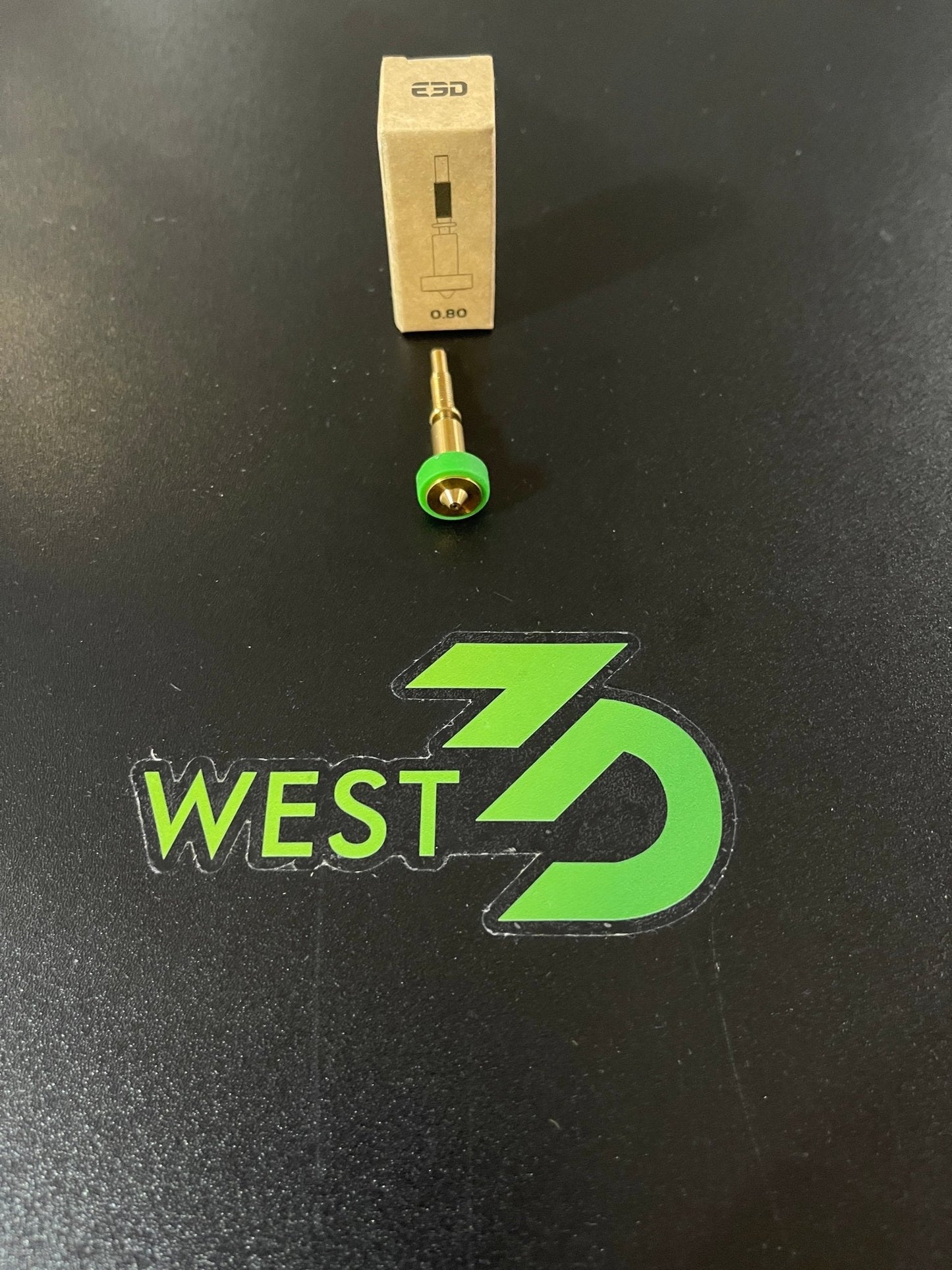

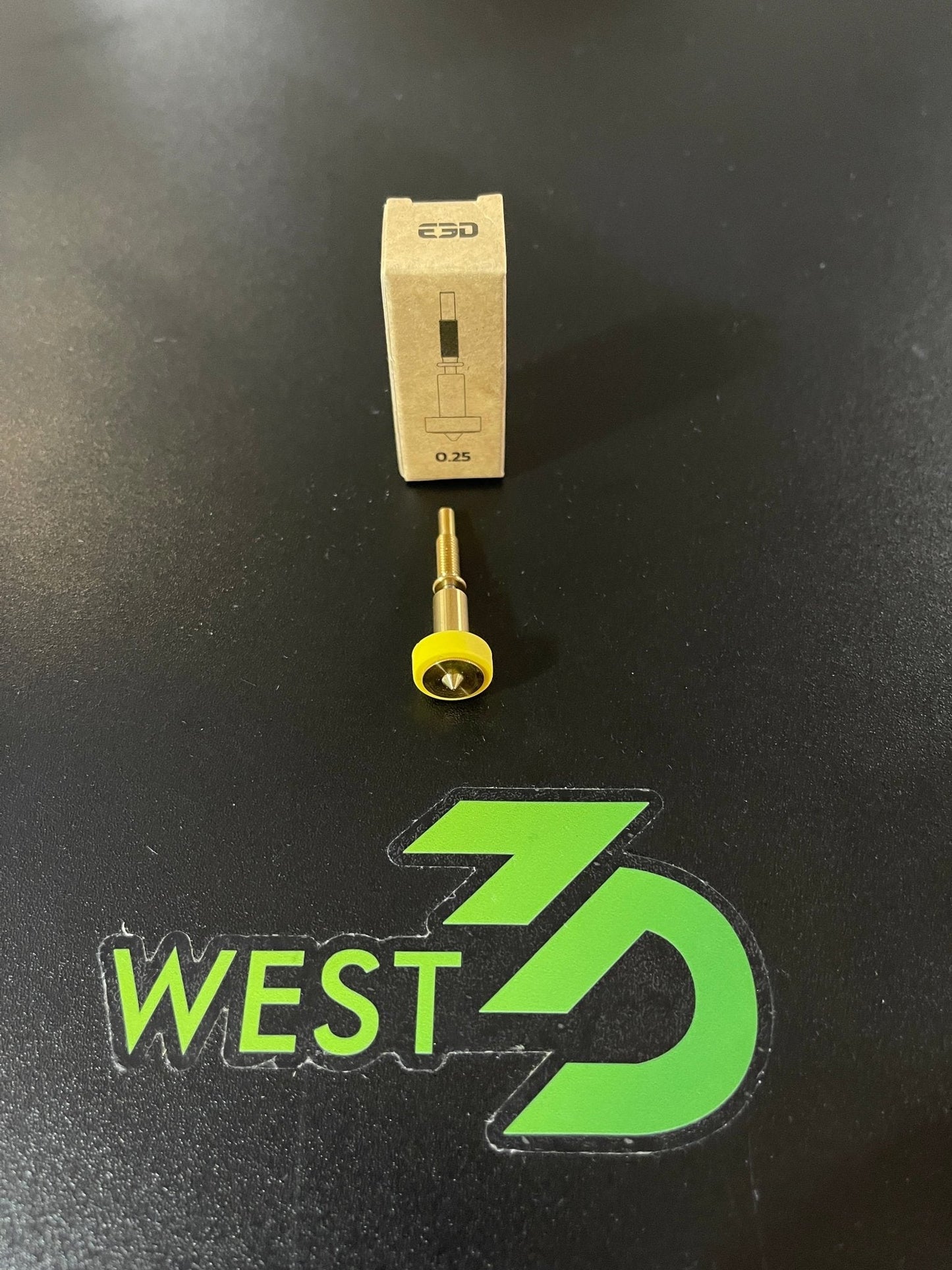

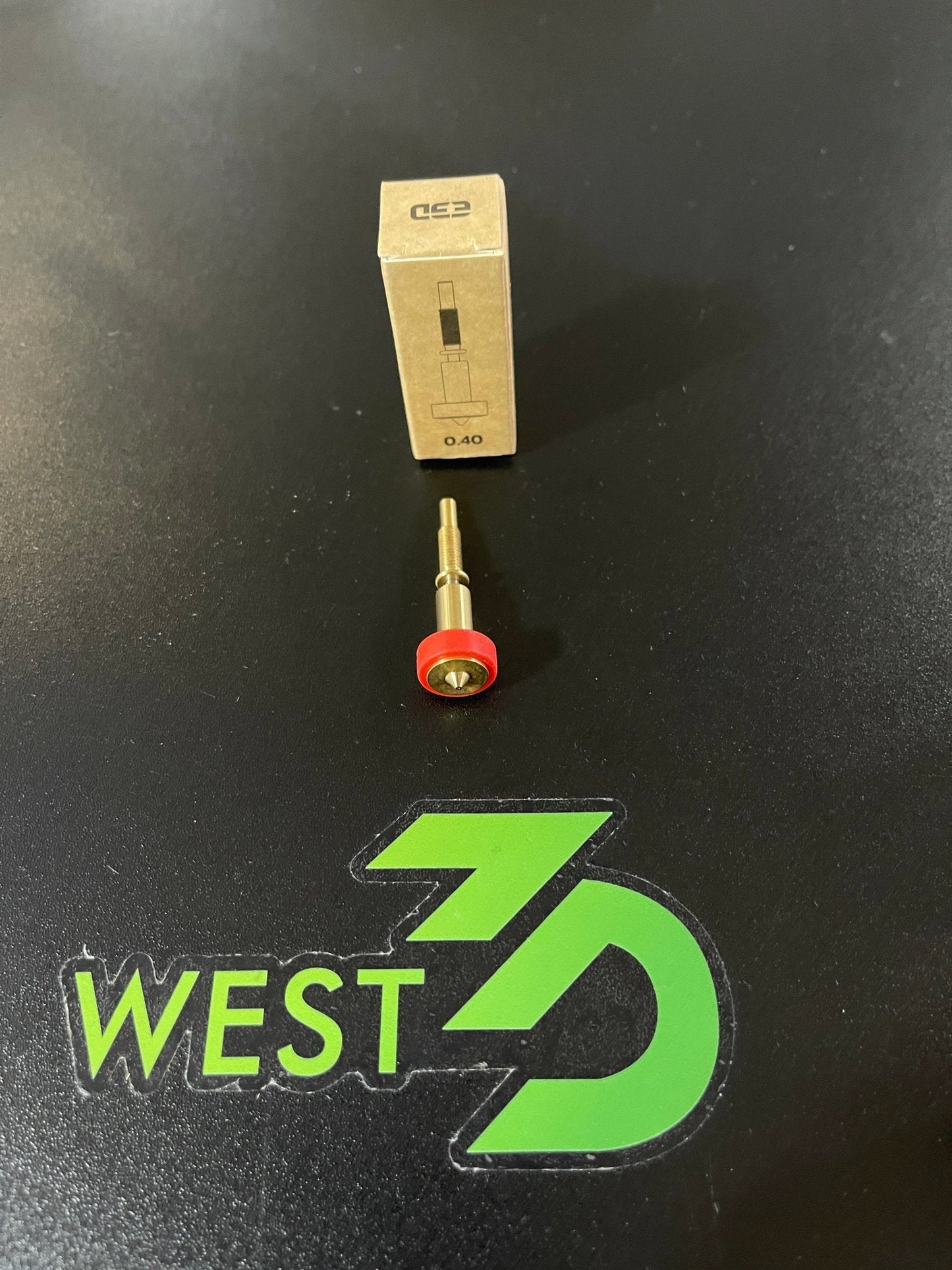

E3D RapidChange Revo Replacement Nozzles

Transform your 3D printing workflow with the E3D RapidChange Revo Replacement Nozzles. Designed exclusively for the innovative Revo ecosystem, these nozzles allow you to swap sizes in seconds using only your fingers. Say goodbye to complex tools, stripped heater blocks, and hazardous hot tightening, and embrace effortless precision printing.

By integrating the nozzle and the heatbreak into a single factory-sealed component, E3D has completely eliminated the most frustrating bottlenecks of traditional toolhead maintenance.

Frustration-Free Nozzle Swapping

Traditional hotend architectures force you to heat your system to extreme temperatures to torque down a tiny nozzle, introducing risks of burns, sheared threads, and catastrophic leaks. Revo rewrites the rules:

• Cold Swapping: Change your nozzle at room temperature in less than a minute. Simply unscrew with your fingers, pop in the new size, and twist to secure.
• Leak-Proof Engineering: Because each unit combines the nozzle tip and heatbreak into a single, preassembled factory-sealed part, there is absolutely zero chance of incorrect assembly or molten plastic leaking through the threads.

Experiment Freely with Sizes

When swapping a nozzle takes seconds rather than an hour, you are free to optimize every single project for maximum speed or ultimate visual quality:

• Ultra-Fine Detailed Work: Drop down to a 0.25mm size for hyper-detailed miniatures, intricate mechanical parts, and virtually invisible layer lines.
• Rapid Structural Prototyping: Scale up to 0.6mm or 0.8mm options to throw down thick, robust perimeters, slash infill times, and complete massive structural objects in a fraction of the time.

Rapid Visual Identification

Keep your workshop organized without squinting at tiny metal parts. The Revo family relies on a clear, intuitive tracking method:

• Color-Coded Silicone Socks: Each nozzle size features a specifically colored silicone sock, allowing you to instantly audit which tool is loaded into your toolhead carriage at a glance.
• Engraved Text: For a permanent verification, the precise nozzle diameter is engraved in crisp, easy-to-read numbers directly onto the brass body.

Important Operating Considerations

• Z-Offset Calibration: While Revo nozzles are precision manufactured to match identical lengths within minor factory tolerances (±0.2mm), it is highly recommended to double-check and slightly adjust your Z-offset after swapping sizes to achieve a flawless first layer.

Technical Specifications

• System Compatibility: Fully compatible with all E3D Revo Hotends (including Revo Six, Revo Micro, Revo Voron, Revo Hemera, and Revo Roto setups).
• Material: Premium Premium Brass for exceptional thermal conductivity.
• Filament Compatibility: Designed exclusively for 1.75mm diameter filament systems.

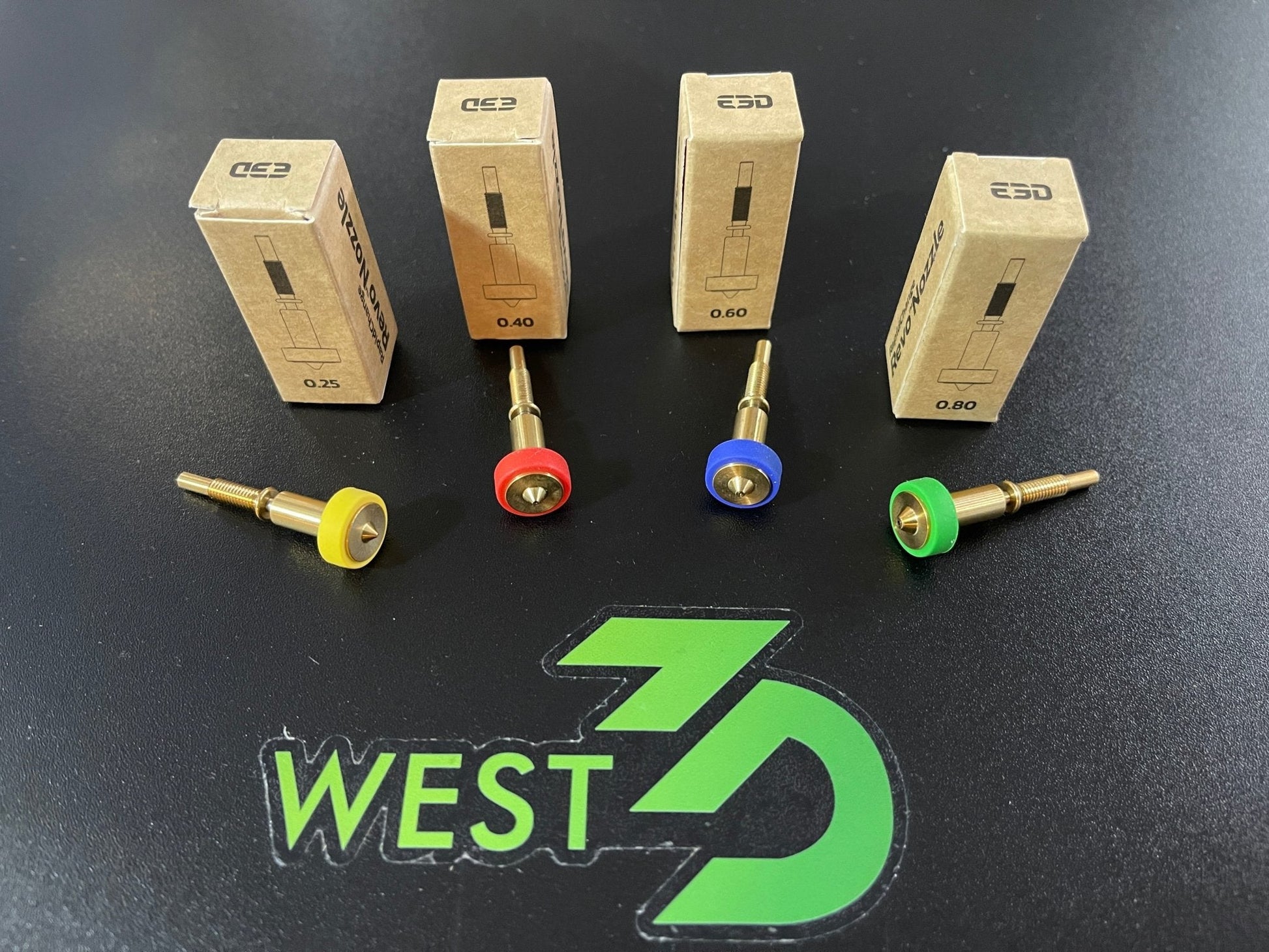

• Available Sizes: 0.25mm (Yellow), 0.40mm (Red), 0.60mm (Blue), and 0.80mm (Green).
