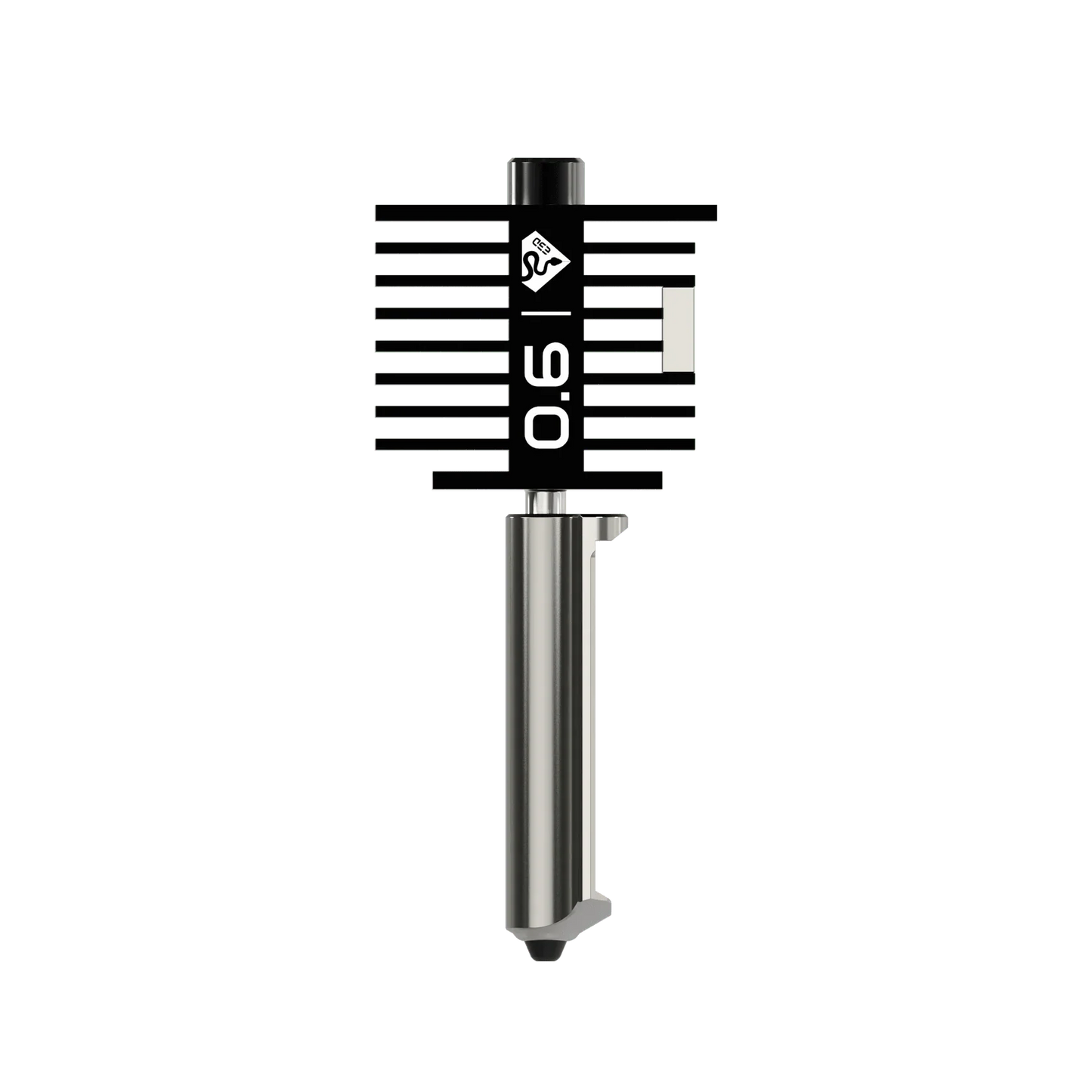

E3D DiamondBack Hotend for Bambu Lab A1, A1 Mini, and A2L

$99.49 USD

Sale Sold out

Equip your Bambu Lab printer with extreme wear resistance using the E3D DiamondBack Hotend, an official collaboration between E3D, DiamondBack, and Bambu Lab. Engineered specifically for the Bambu Lab A1, A1 Mini, and A2L, this premium hotend features a Polycrystalline Diamond (PCD) nozzle tip made from the hardest material on Earth. Designed to handle the most abrasive materials without degrading, it delivers unmatched longevity, high thermal conductivity, and pristine print precision straight off the build plate.

Key Features

Solid Diamond PCD Tip: Polycrystalline Diamond matrix delivers extreme abrasion resistance, surviving continuous extrusion of carbon fiber, metal, glass, and ceramic-filled filaments.
Officially Approved Upgrade: E3D is the only officially authorized aftermarket hotend manufacturer for Bambu Lab, ensuring full compatibility without voiding your printer warranty.
Superior Thermal Conductivity: High heat transfer rate improves interlayer adhesion for stronger parts, while a low friction coefficient creates exceptionally smooth top layers with an ironing-like effect.
Quick Magnetic Swap: Magnetic quick-change design aligns with the factory A1 series toolhead, allowing fast, hassle-free installation without requiring physical adjustments to mounts or cooling components.
High-Temperature Rating: Rated up to 320°C, providing the thermal range needed to print engineering materials and advanced filled composites.

Technical Specifications

Printer Compatibility: Bambu Lab A1, Bambu Lab A1 Mini, and A2L
Nozzle Tip Material: Polycrystalline Diamond (PCD)
Hotend Construction: Aluminum Heatsink, Titanium Heatbreak, Nickel-Plated Copper Hotside Body
Maximum Temperature: 320°C
Orifice Size Options: 0.40 mm / 0.60 mm

Usage & Compatibility Notes

Printer Limitations: Compatible with Bambu Lab A1, A1 Mini, and A2L. Not compatible with Bambu Lab H2 or X1/P1 series machines.
Filament Particle Sizing: Some heavily filled materials contain coarse particles that can clog 0.4mm nozzles. Always check filament datasheets for minimum recommended nozzle diameters before printing.
