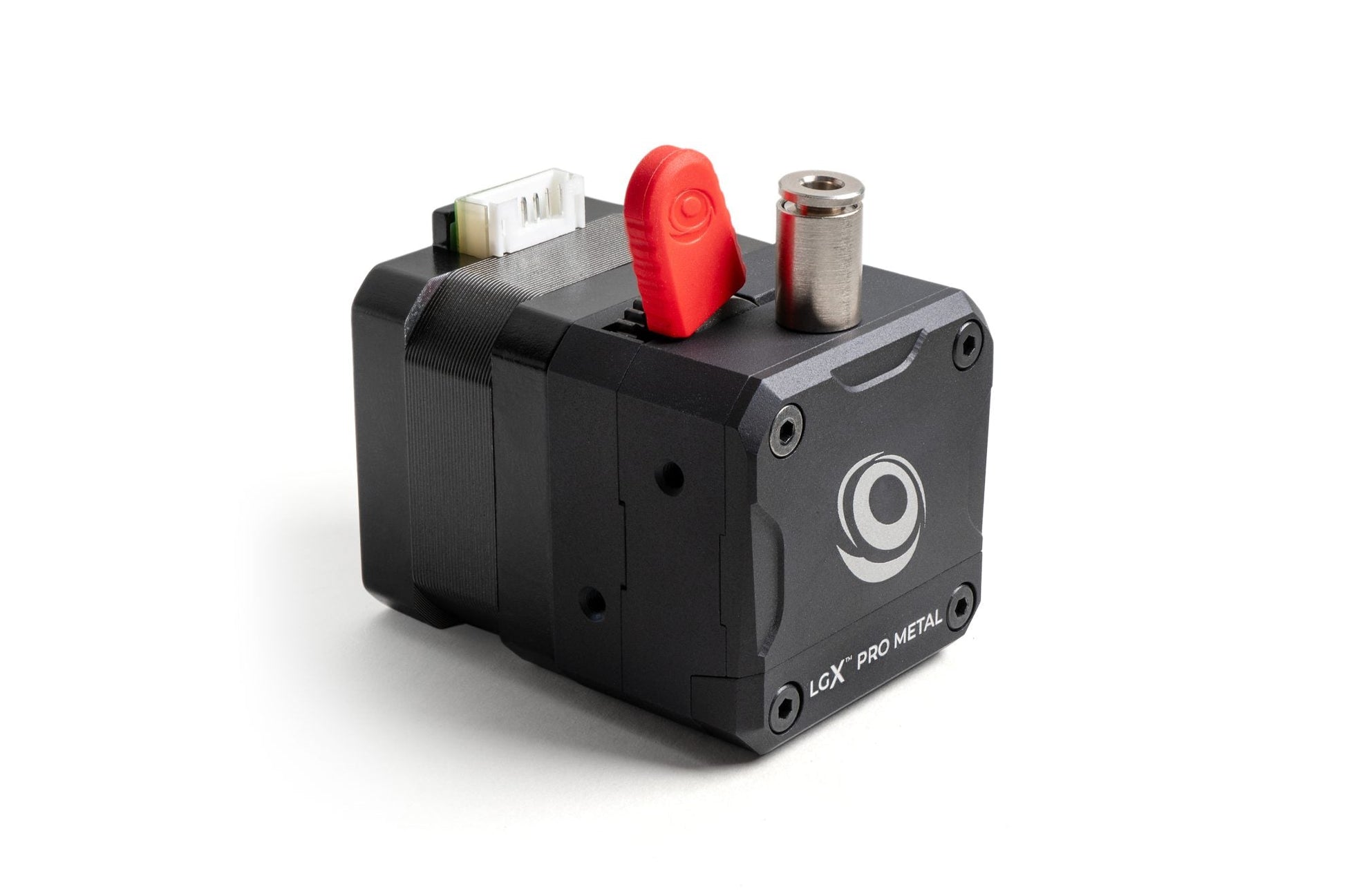

Bondtech - LGX Pro Metal eXtruder | 1.75mm Industrial High-Temperature Extruder

Equip your industrial 3D printer for extreme environments with the Bondtech LGX Pro Metal 1.75mm eXtruder. Engineered specifically for professional-grade and high-temperature manufacturing, this robust, full-metal filament feeder represents the absolute top tier of the LGX line. Boasting Bondtech’s advanced Dual Drive Technology, it utilizes significantly larger drive wheels to maximize filament surface grip and eliminate slippage. This design offers an elevated printing experience with unprecedented control and structural reliability.

Heavy-Duty Full Metal Construction

Designed to survive punishing thermal loads and abrasive environments, the LGX Pro Metal features a tough, precision-machined aluminum housing and a fully hardened steel drive train. This all-metal integration provides a highly rigid and reliable path for your filament while protecting the internal gears from dust, debris, and structural wear inside heated printer chambers. Combined with a powerful, custom-engineered 30mm Nema17 pancake stepper motor, the system delivers higher push-force, exceptional torque, and faster maximum feed rates compared to standard plastic-body extruders.

Advanced Pre-Tensioning & Multi-Tool Interfacing

Achieve highly repeatable print quality across a broad range of materials—including abrasive, rigid, semi-flexible, and soft filaments. The extruder is equipped with Bondtech's innovative pre-tension lever, featuring a fully open position and four calibrated pre-tension presets to dial in tension with mechanical precision. Its versatile multi-function interface socket allows for rapid tooling or application swaps, making it highly compatible with direct-drive configurations. It is natively ready to support longer industrial hotends by using the included aluminum direct-drive interface plug.

Key Features & Capabilities

• Industrial Dual Drive Power: Leverages extra-large hardened steel drive wheels to achieve exceptional filament grip and reliable feeding force.
• All-Metal Defense: Aluminum body construction increases physical toughness and protects critical components from thermal deformation.
• Versatile Filament Support: Easily processes challenging materials, ranging from stiff carbon fiber composites to ultra-soft flexibles.
• Precision Mounting: Offers eight distinct mounting hole patterns across the front, side, and bottom of the housing for flexible integration into custom toolheads.
• Compact & Symmetric Design: Engineered to keep weight minimal and balanced, allowing for fast, responsive print head accelerations.

What's Included in the Box:

• 1x LGX® Pro Metal 1.75mm feeder
• 1x Custom Nema17 30mm pancake stepper motor
• 1x Metal Push-in fitting (M7 4mm)
• 1x 2mm Hex Key (recommended installation tool)
• 4x M3x23 mm Studs (5mm Hex with M3x4 thread)
• 1x 30mm PTFE tube for Direct Drive Interface Plug
• 1x "Powered By Bondtech" sticker

⚠️ Important Machine Configuration Guidelines:

• Filament Limitation: This specific extruder configuration strictly supports 1.75 mm size filaments.
• E-Steps Calibration: Ensure your firmware E-steps are set to 400 steps/mm for proper extrusion scaling.
• Current Limits: Use a maximum of 1A (RMS) of current to feed the stepper motor. Exceeding this rating can lead to excessive motor self-heating.
• Chamber Limits: When printing inside a heated enclosure, adjust stepper current to manage temperature limits: 95°C chamber at max 500mA, 90°C chamber at max 650mA, or 80°C chamber at max 1000mA.
• Mounting Notice: This direct extruder design does not allow for a mounting plate to be installed between the stepper motor and the extruder body.
