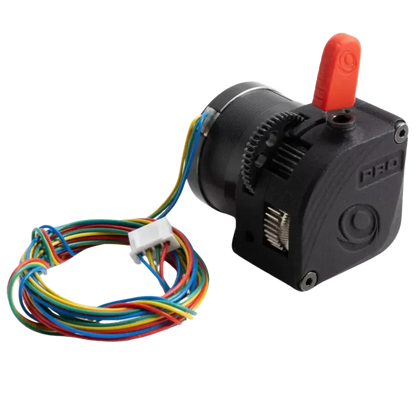

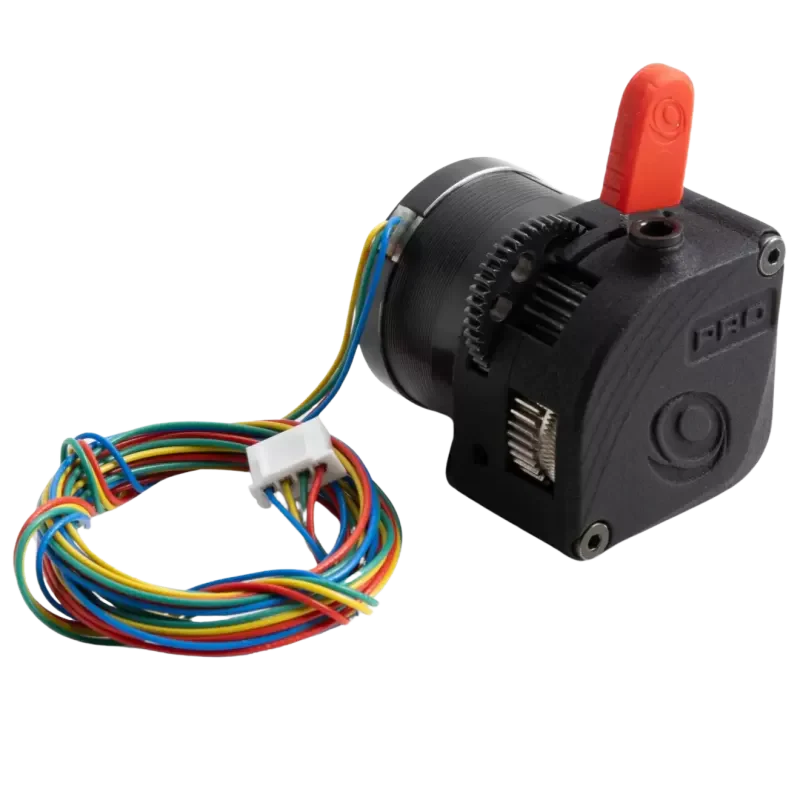

Bondtech LGX Lite PRO eXtruder | 1.75mm Dual-Drive Featherweight Filament Feeder

Upgrade your 3D printer's toolhead payload with the Bondtech LGX Lite PRO eXtruder. Based on Bondtech's world-renowned, large dual-drive gear design, the Lite PRO model shrinks the physical footprint down to a featherweight, micro-profile chassis. Designed for high-speed direct-drive setups, this extruder combines unparalleled filament grip, massive pushing force, and exceptional thermal resistance into one ultra-compact system.

Why the "PRO" Standard?

The LGX Lite PRO is engineered for demanding, high-performance 3D printing. It introduces several major advancements over standard compact feeders:

• Maximum Torque & Grip: Features the full-size LGX hardened steel drive train with extra-large drive wheels, providing an extended physical contact surface with your filament to ensure slip-free extrusion.
• SLS PA12 Glass-Filled Housing: Built inside a robust V2-style enclosure printed from high-grade PA12 GF (Glass-Filled Nylon). This construction increases structural durability and elevates heat resistance to comfortably print in warm chambers up to 100°C.
• Nema14 22mm Stepper Motor: Includes a factory-mounted 22mm custom round pancake stepper motor (ø36mm), keeping the moving mass on your axis incredibly low without compromising torque.

5-Position Quick-Tension System

Simplify your workflow with the integrated calibrated tension lever. You can effortlessly swap between 5 physical presets tailored for a broad range of 1.75mm filaments—completely eliminating manual thumb-screws:

• Position 0: Open (for frustration-free filament loading/unloading).
• Position 1-2: Preset for rigid materials (like PLA, PETG, ABS, and carbon fiber composites).
• Position 2-3: Preset for semi-flexible filaments.
• Position 3-5: Preset for flexible and soft elastic filaments (such as TPU).

Key Features & Capabilities

• Featherweight Design: Extremely compact footprint keeps moving mass minimal, mitigating ringing and ghosting issues during high-acceleration prints.
• Hardened Steel Drivetrain: Natively supports abrasive filaments (such as carbon fiber, glass, or metal-filled polymers) without degrading over time.
• Built-In Maintenance Windows: Easily inspect internal gear mesh alignment or clean out loose debris without having to tear down your entire extruder assembly.
• Multi-Point Mounting: Features built-in mounting interfaces on the bottom, right, left, front, and top for flexible installation on custom toolheads.

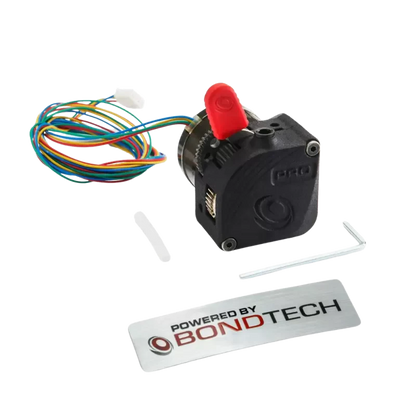

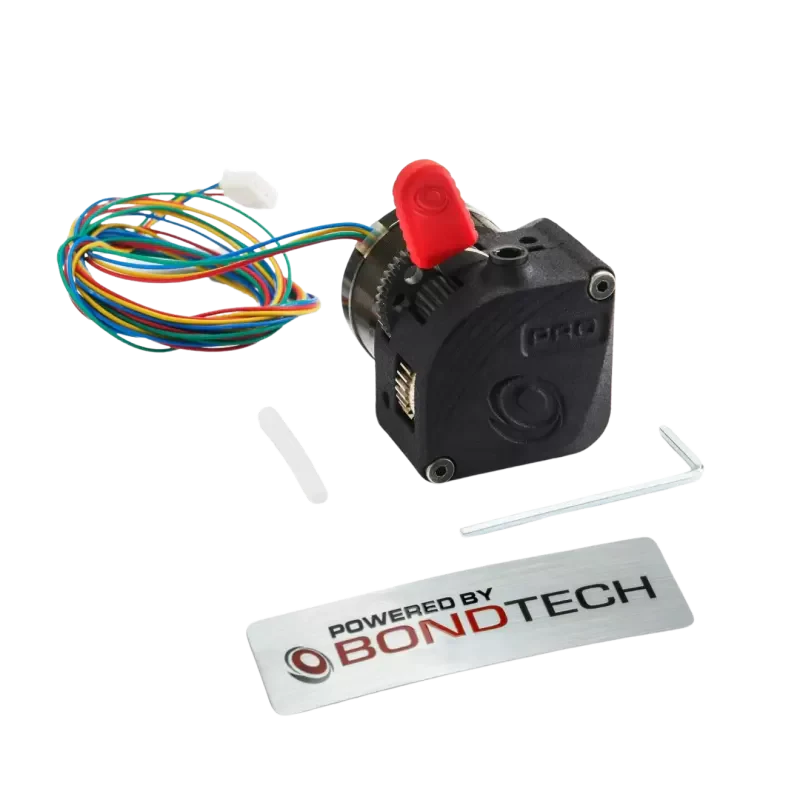

What's Included in the Box:

• 1x LGX Lite PRO feeder
• 1x Nema14 Round 22mm pancake stepper motor (pre-mounted)
• 1x 1-meter long motor lead cable (fitted with JST-XH 4-pin connector)
• 1x 2mm Hex Key (essential installation tool)
• 1x Push-fit collar (inserted)
• 1x 30mm PTFE tube (for PTFE tube adapter guide)
• 8x M3 square nuts (pre-loaded into physical mounting slots)
• 1x "Powered By Bondtech" sticker

⚠️ Essential Technical Guidelines:

• Filament Limit: Natively and strictly compatible with 1.75mm filament only.
• E-Steps Values: Configure your printer firmware to 800 steps/mm at 1/16 microstepping (or 1600 steps/mm at 1/32 microstepping).
• Stepper Motor Current: Limit current output in your configuration to a range of **0.45A to 0.65A (RMS)** to prevent motor thermal saturation. Max peak threshold is 1.0A.
• Mounting Restriction: Do not place a mounting plate between the stepper motor and the rear of this extruder.
