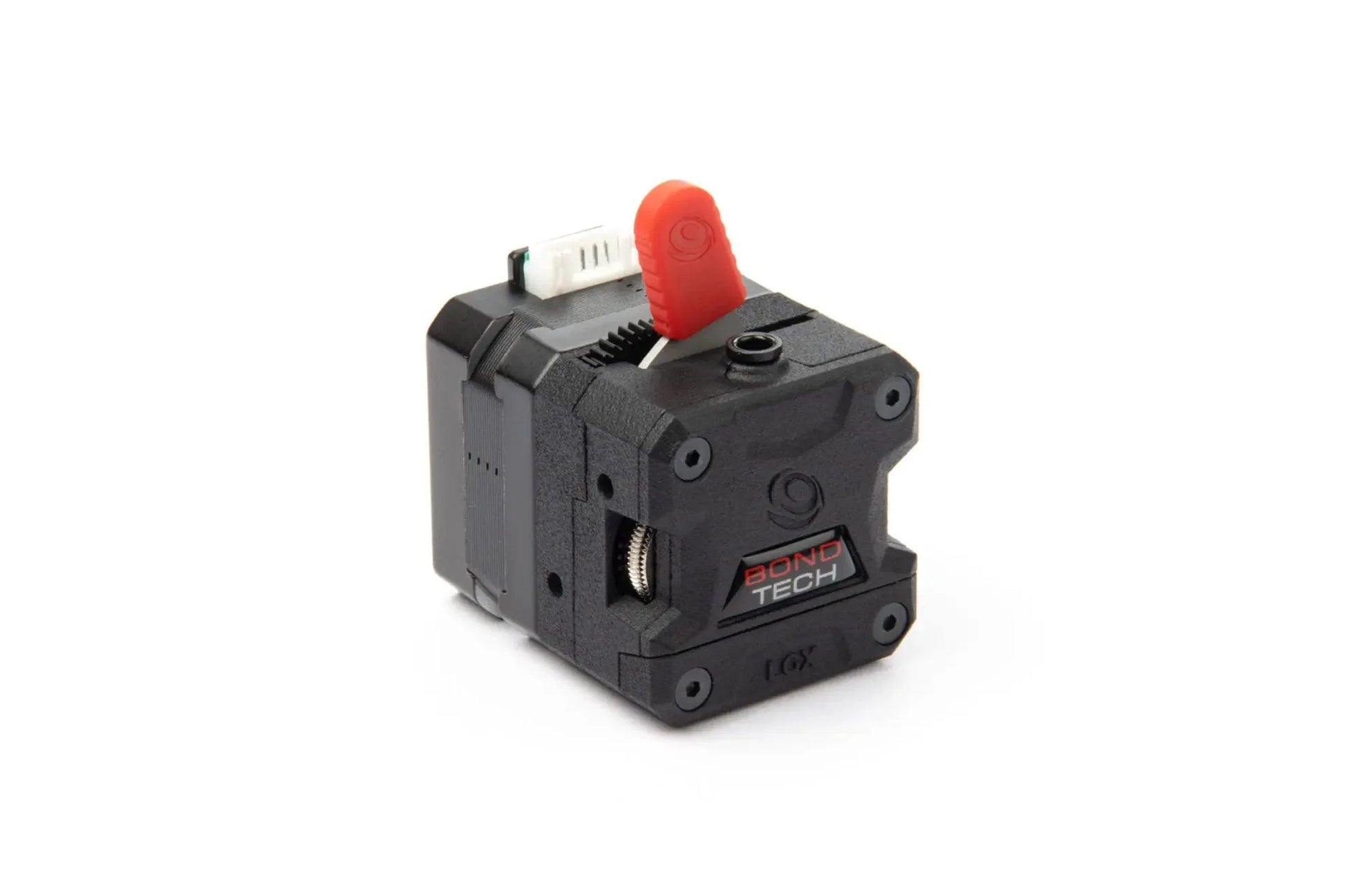

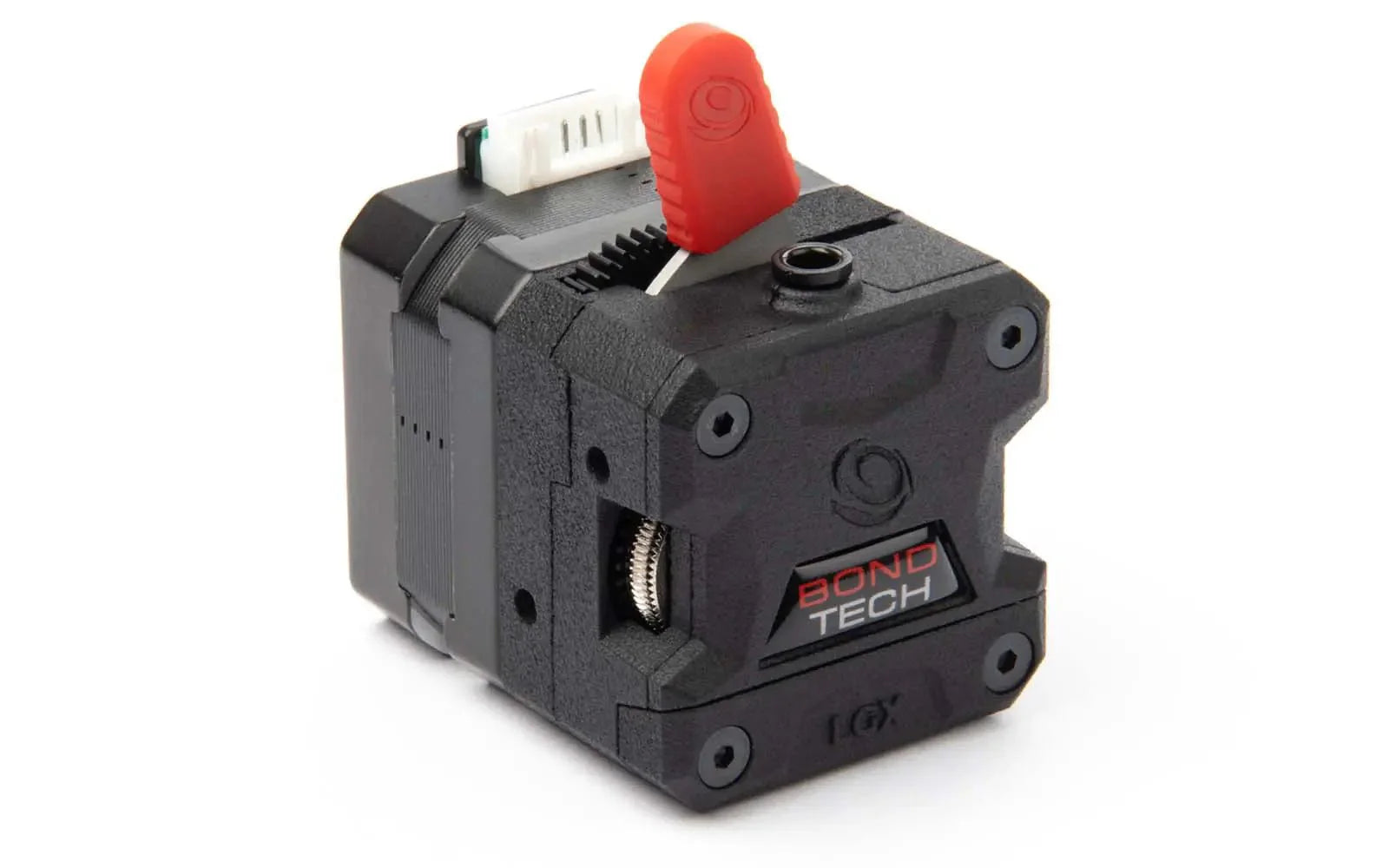

Bondtech LGX Large Gears eXtruder | Premium 1.75mm Multi-Material Dual-Drive Feeder

Upgrade your desktop FDM 3D printer with the pioneering Bondtech LGX Large Gears eXtruder. Based on Bondtech’s revolutionary dual-drive technology, the LGX features extra-large, hardened steel drive gears that provide a massive surface area contact with the filament. This dramatic increase in physical grip ensures powerful, slip-free performance even when pushing complex, abrasive, or ultra-flexible filaments through your system.

The LGX is engineered with a compact, lightweight body profile designed to sit seamlessly on both direct-drive and Bowden-style toolhead setups. It is equipped with a custom-engineered, slimline 25mm Nema17 pancake stepper motor to keep moving mass low—preventing print ghosting and ringing while maintaining high speed and precision during rapid axis accelerations.

Calibrated Pre-Tensioning System

Say goodbye to manual tension thumb-screws and guessing games. The LGX features a built-in, 5-position pre-tension lever. With one fully open setting (for easy filament loading and unloading) and four calibrated pressure presets, you can precisely repeat the exact tension needed for different material types—whether you are running rigid PLA, engineering-grade Nylon, or highly elastic TPU.

Multi-Platform Toolhead Interfacing

The LGX is highly modular, giving you maximum flexibility to customize your printing platform. The package comes with interchangeable interface plugs to support multiple configurations:

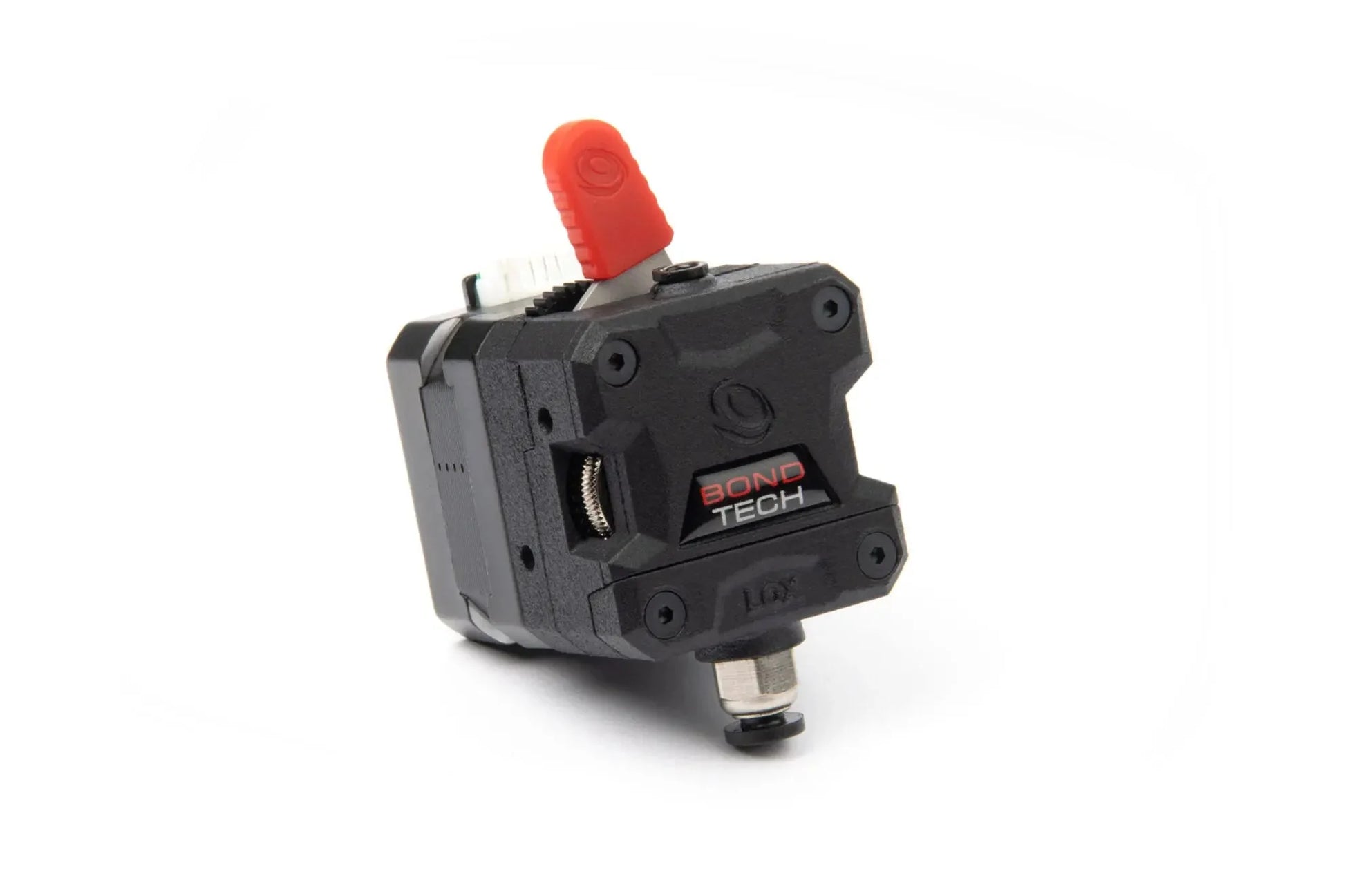

• Bowden Setup: Easily connect standard PTFE guide tubes using the included threaded Bowden Interface Plug with integrated metal push-fit connectors.
• Direct-Drive Setup: Mount your extruder directly above premium hotends (such as Slice Engineering’s Mosquito or Copperhead) utilizing the specialized Direct Drive Interface Plug and included 30mm PTFE guide tube.

Key Features & Capabilities

• Large Dual-Drive Gears: Delivers superior mechanical grip, drastically reducing filament wear, flattening, or slipping under high extrusion pressure.
• Calibrated Lever Control: Effortlessly switch tension modes between 5 discrete presets for reliable, repeatable material profiles.
• Integrated 25mm Stepper Motor: Powerful Nema17 pancake motor provides dense torque output while keeping the overall payload lightweight.
• Modular Assembly: Designed with front, side, and bottom mounting hole paths for easy integration into custom or commercial toolheads.

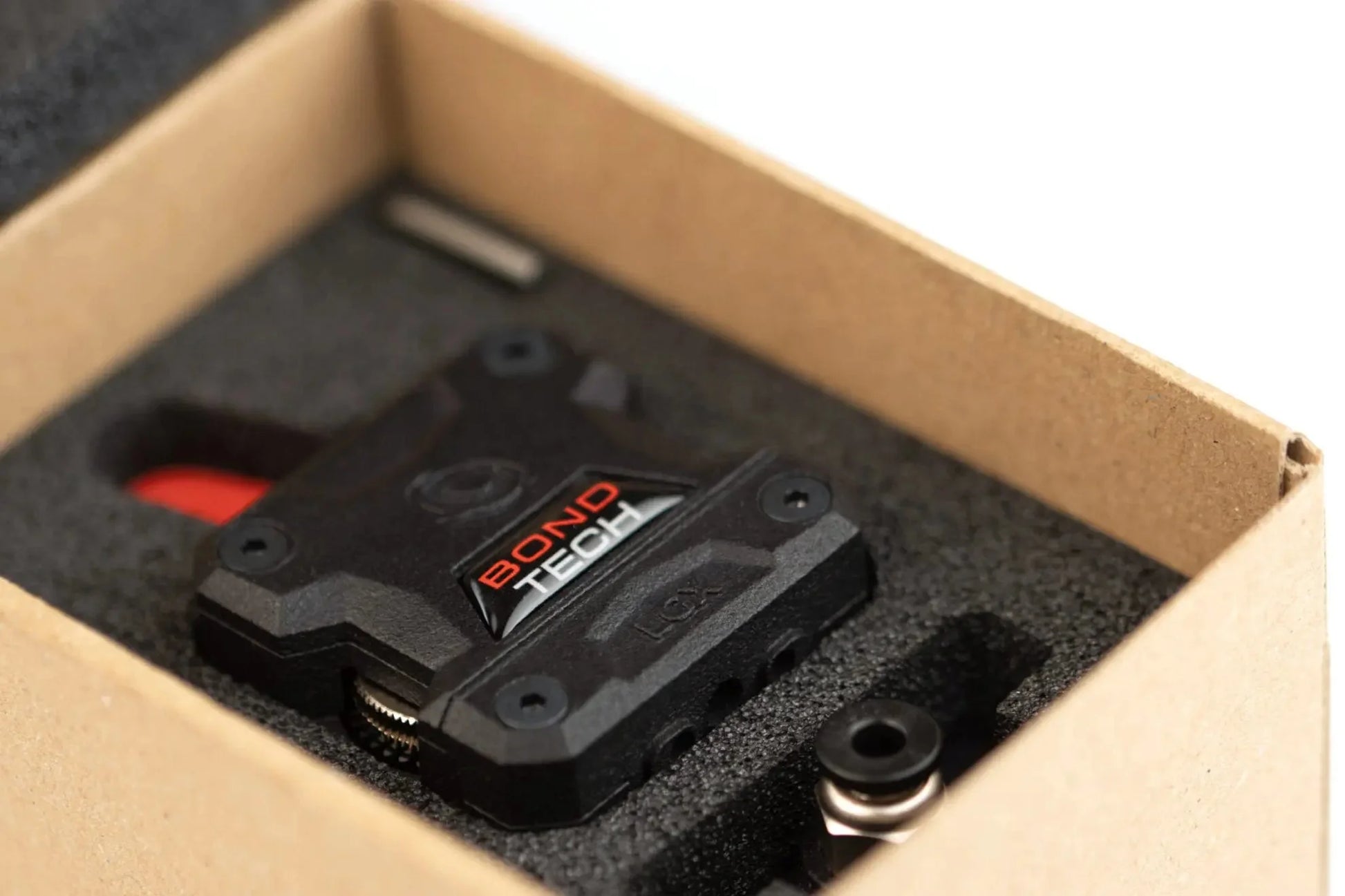

What's Included in the Box:

• 1x LGX® Large Gears Feeder
• 1x Custom Nema17 25mm pancake stepper motor
• 1x Bowden Interface Plug (with threaded metal push-fit)
• 1x Direct Drive Interface Plug (for Slice Engineering hotends)
• 1x 2mm Hex Key (recommended installation tool)
• 3x M3x30 mm Low Head screws
• 4x M3x18 mm Studs (5mm Hex with M3x4 thread)
• 1x 30mm PTFE tube for the Direct Drive Interface Plug
• 1x Product Line Information Brochure
• 1x "Powered By Bondtech" sticker

⚠️ Important Machine Configuration Guidelines:

• Filament Limitation: This extruder strictly supports 1.75 mm size filaments. It is not compatible with 2.85mm setups.
• E-Steps Calibration: To ensure accurate extrusion volumes, update your printer's firmware to 400 steps/mm.
• Current Limits: Set your stepper driver's maximum output to 0.7A (RMS) or 1.0A (Peak) to prevent the custom 25mm motor from overheating during long prints.
