Boost your print speeds and maximize volumetric flow with the Bondtech CHT® RepRap M6 (V6) Nozzle. Specifically designed to drop into standard V6 heater blocks, this premium nozzle leverages innovative internal geometry to melt plastic faster, save you time on massive prints, and increase your interlayer bond strength for structurally stronger parts.
🚀 Patented Core-Heating Technology (CHT)

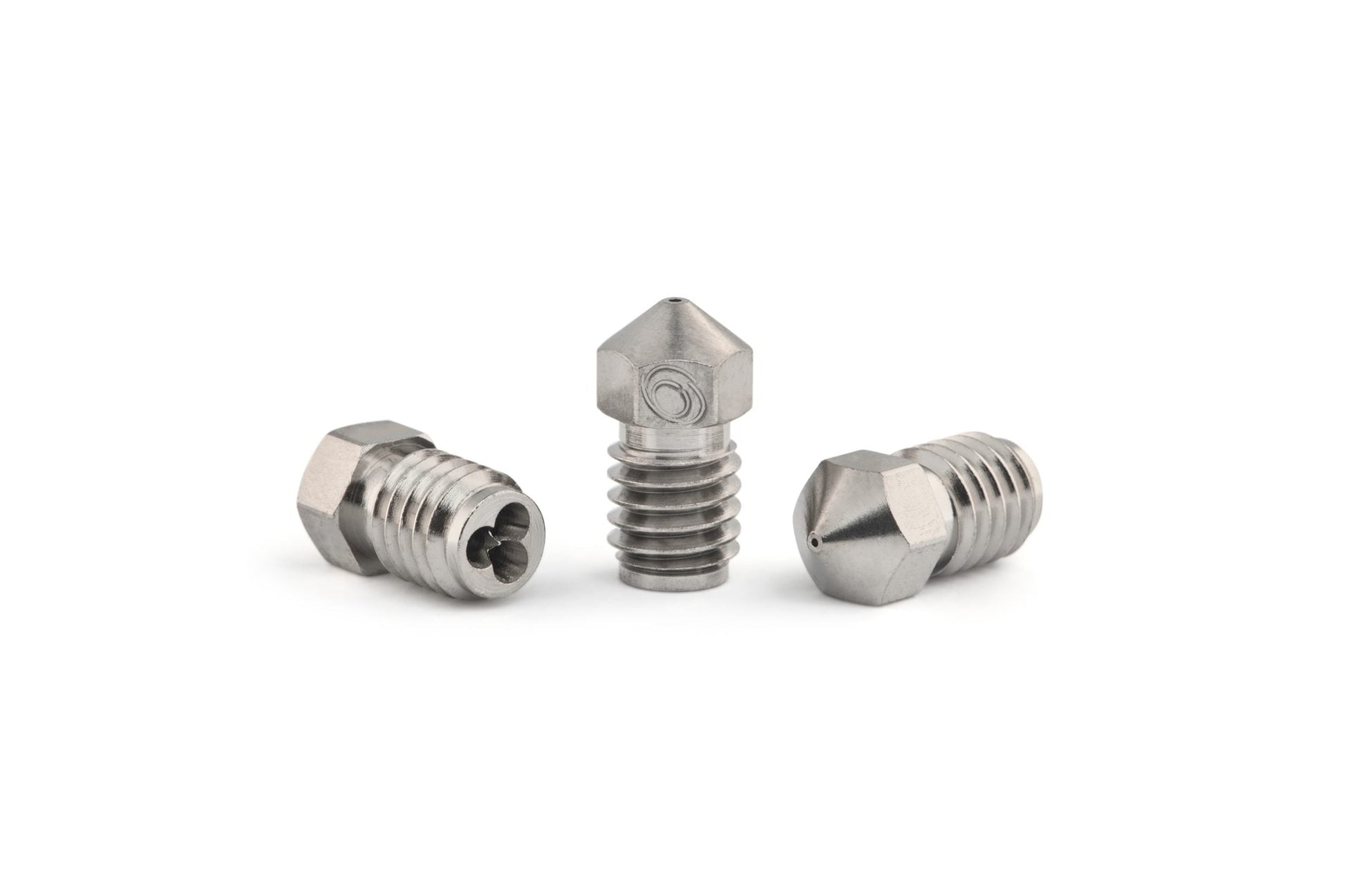

Standard nozzles only transfer heat to the outside of the filament line. Bondtech’s patented CHT technology splits the incoming filament into three thin strands, heating the plastic from the inside out. This rapid, uniform melting significantly increases volumetric flow rates, allowing you to push your printer's motion system to its absolute limits.
Substantial Flow Gains: Achieve 30% or greater gains in volumetric flow when using nozzle sizes of 0.60mm or larger.
Optimized Melt Zone: Works beautifully with rigid 1.75mm/2.85mm filaments and flexible 2.85mm compounds without needing a longer, bulky hotend setup.
✨ Ultra-Precision Machined Brass with Protective Nickel Coating
Constructed from high-grade brass for superior thermal conductivity, this nozzle is enhanced with a premium electrolux-grade plating.
Corrosion & Wear Resistance: The protective nickel plating safeguards the soft brass core from chemical corrosion and minor surface erosion.
Non-Stick Properties: Features an incredibly low coefficient of friction, reducing plastic build-up around the nozzle tip and keeping your print bed clean of stray blobs.
📋 Specifications & Compatibility
Thread Standard: RepRap M6x1 (7.5mm thread length, 12.5mm total length). Fully compatible with V6 style hotends.

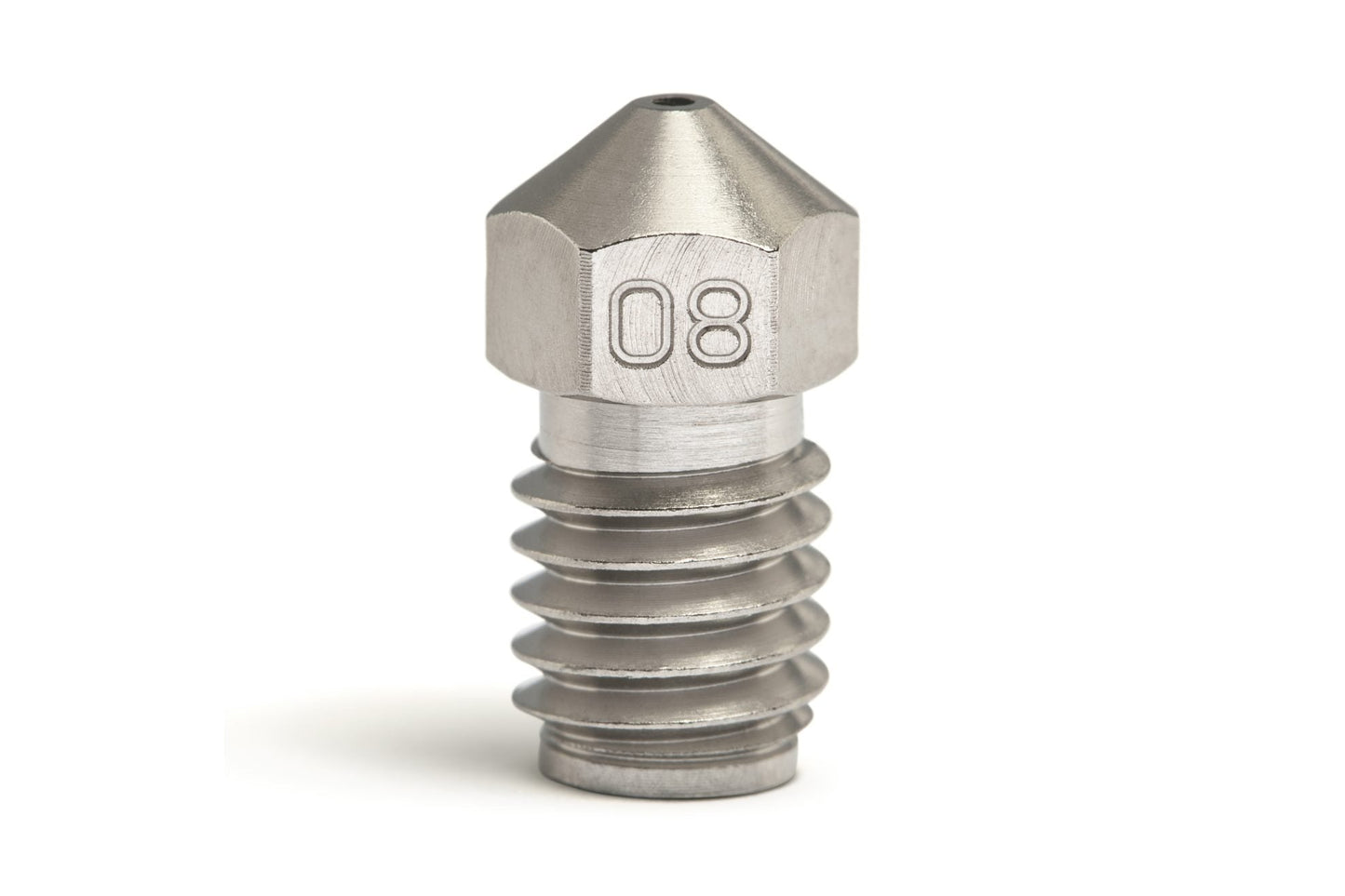

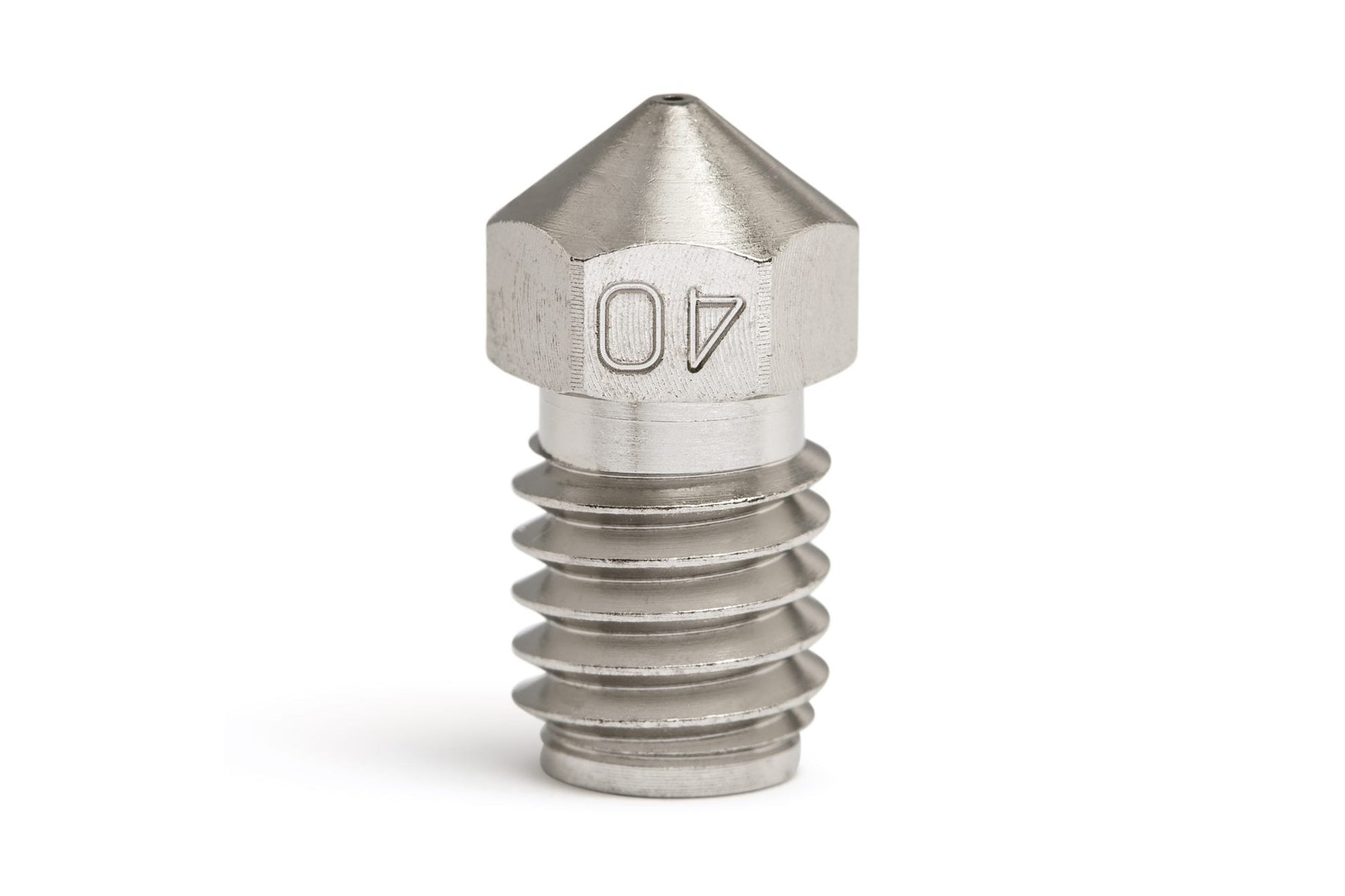

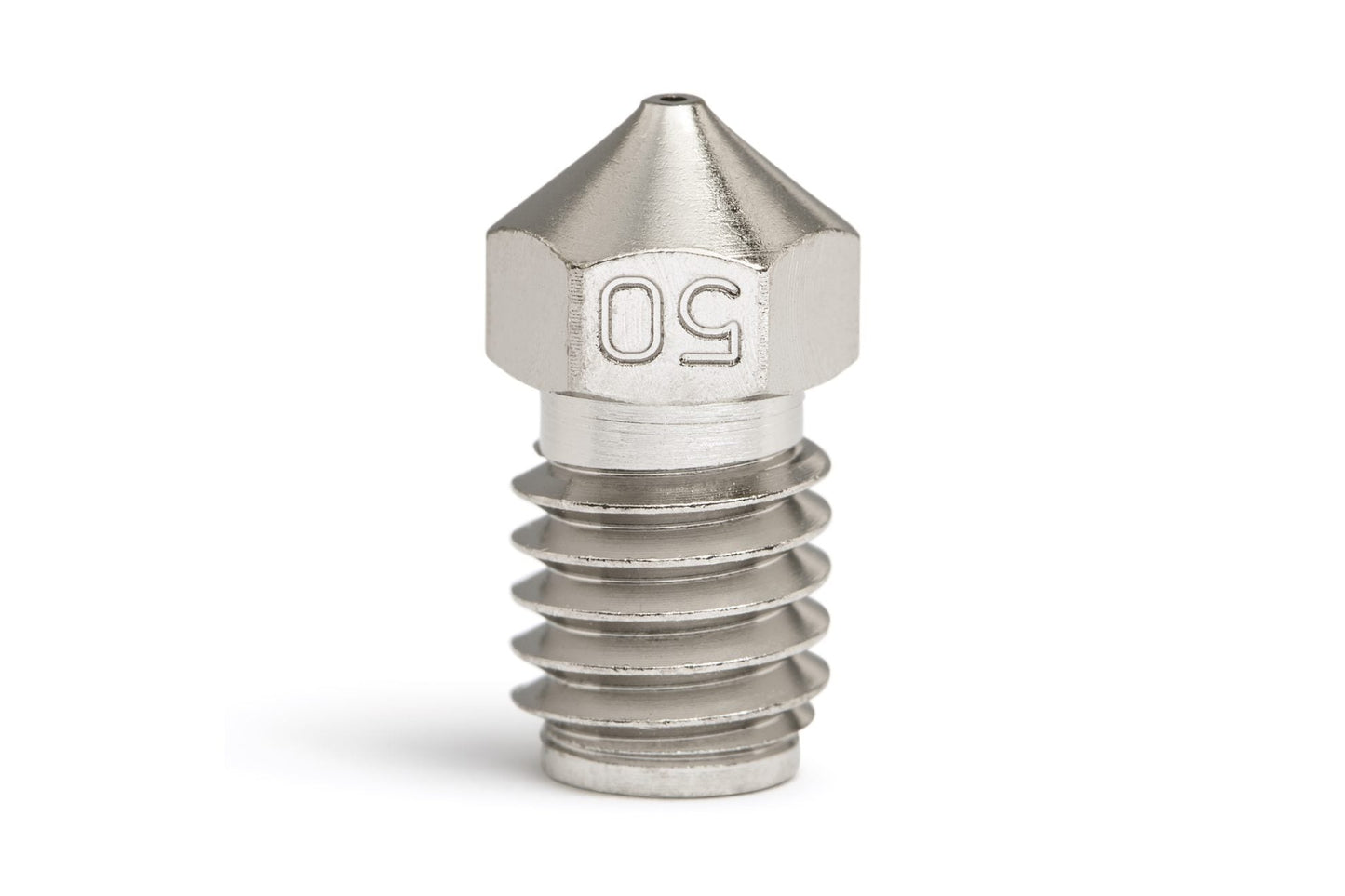

Available Sizes: 0.25mm, 0.40mm, 0.50mm, 0.60mm, 0.80mm, 1.0mm, 1.4mm, and 1.8mm.
Filament Compatibility: Optimized for 1.75mm; fully compatible with 2.85mm systems.
Installation: Requires a standard 6mm wrench. Always torque to your hotend manufacturer’s recommended specifications when hot.
