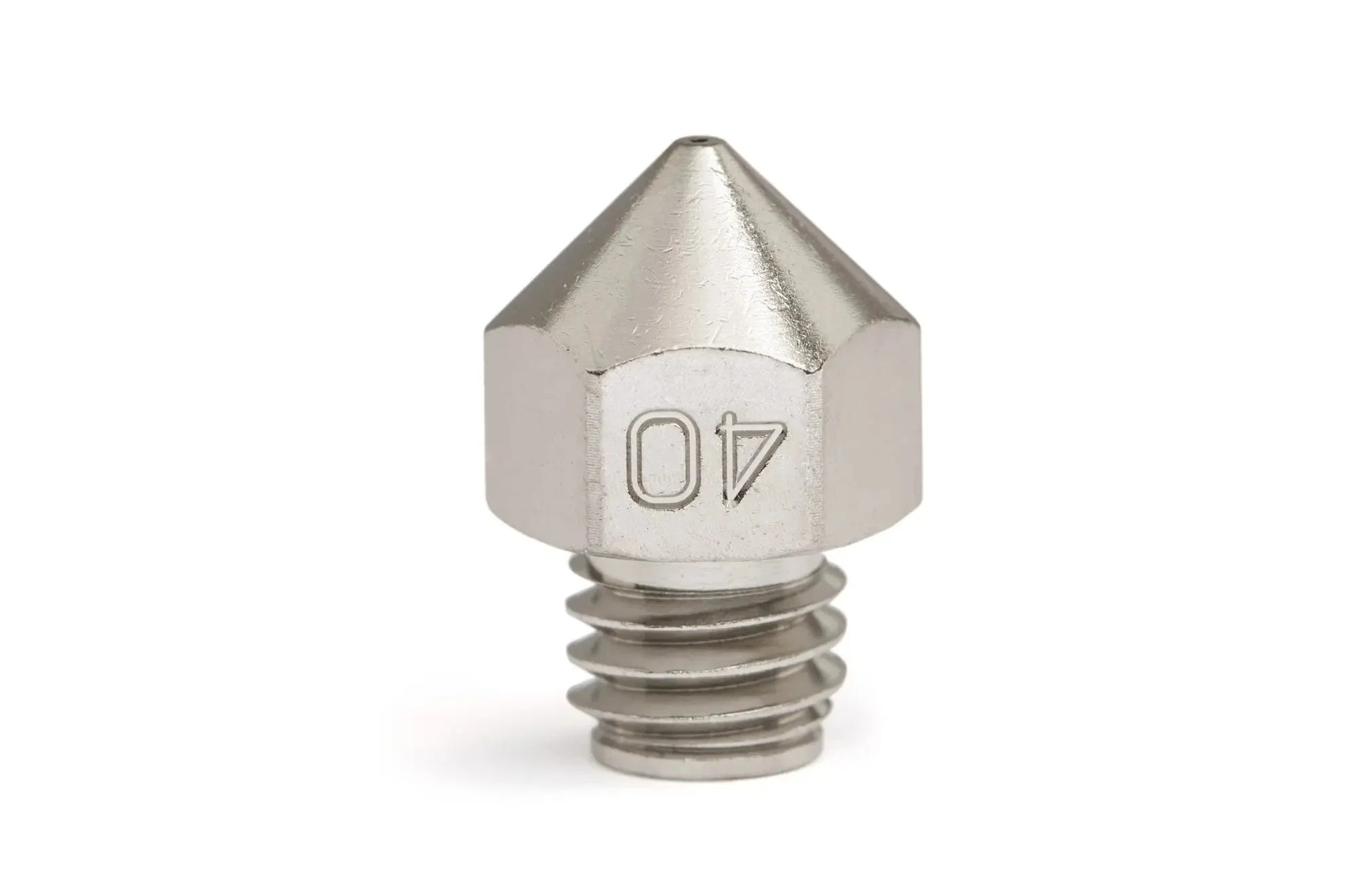

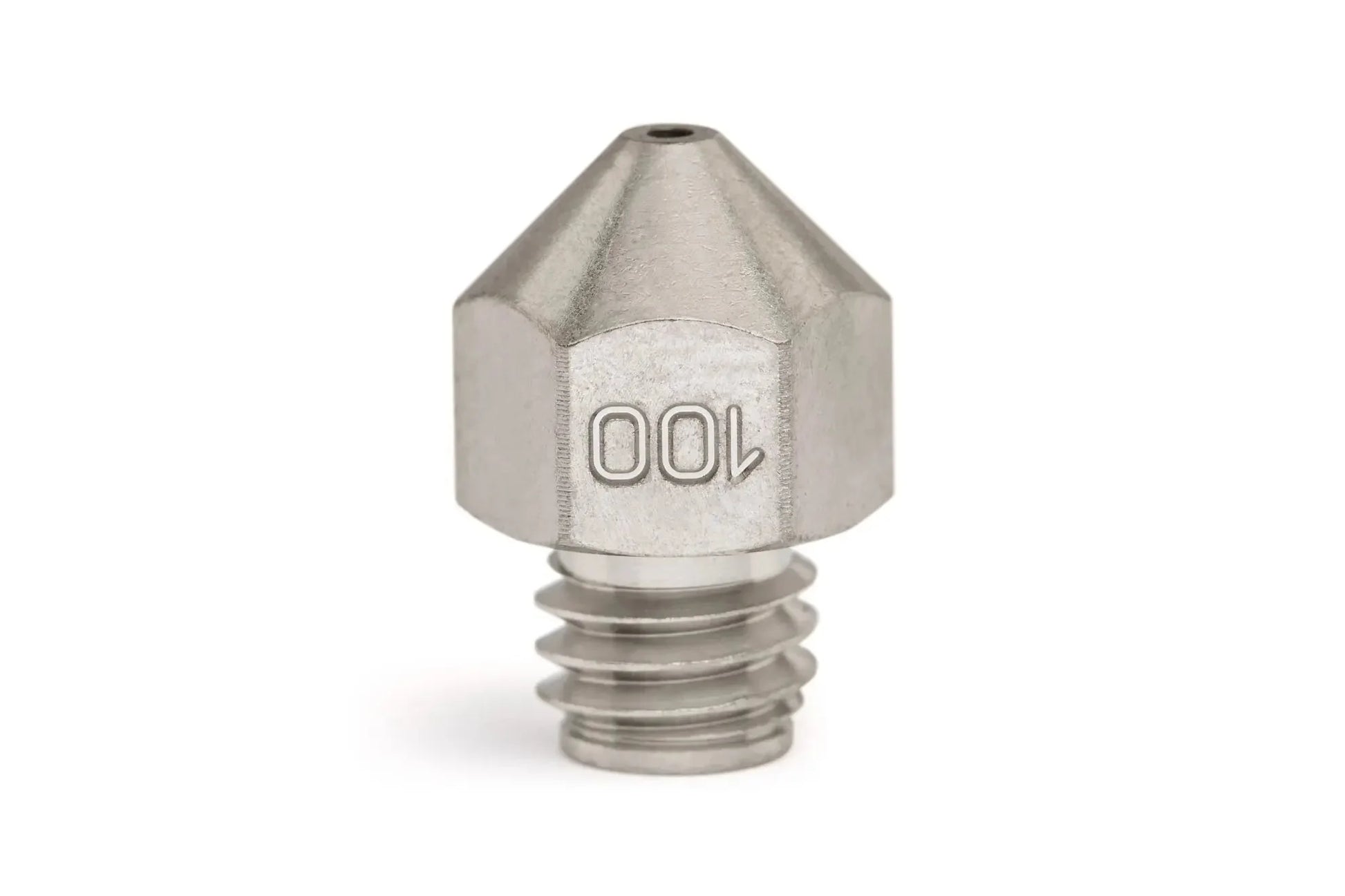

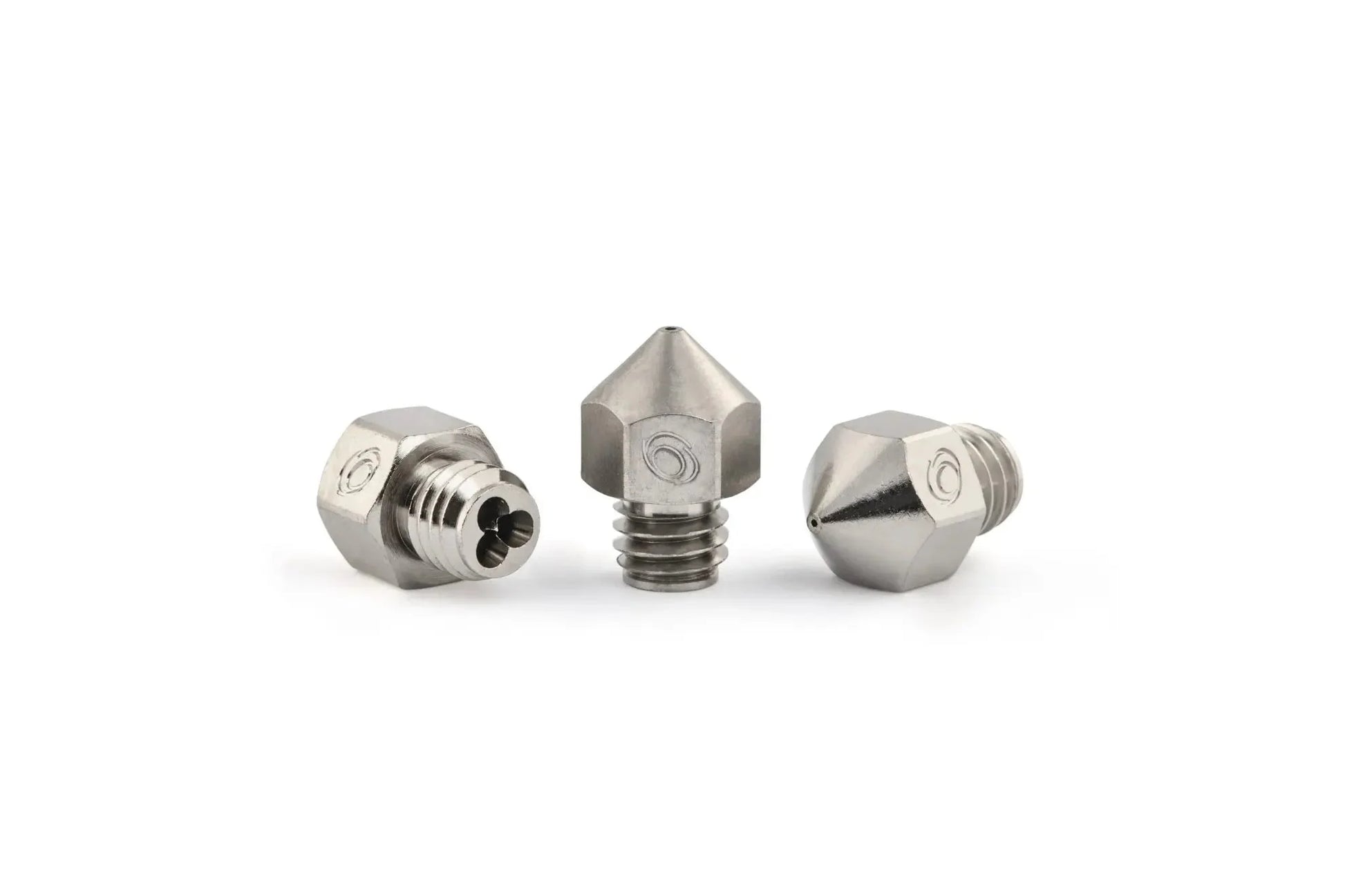

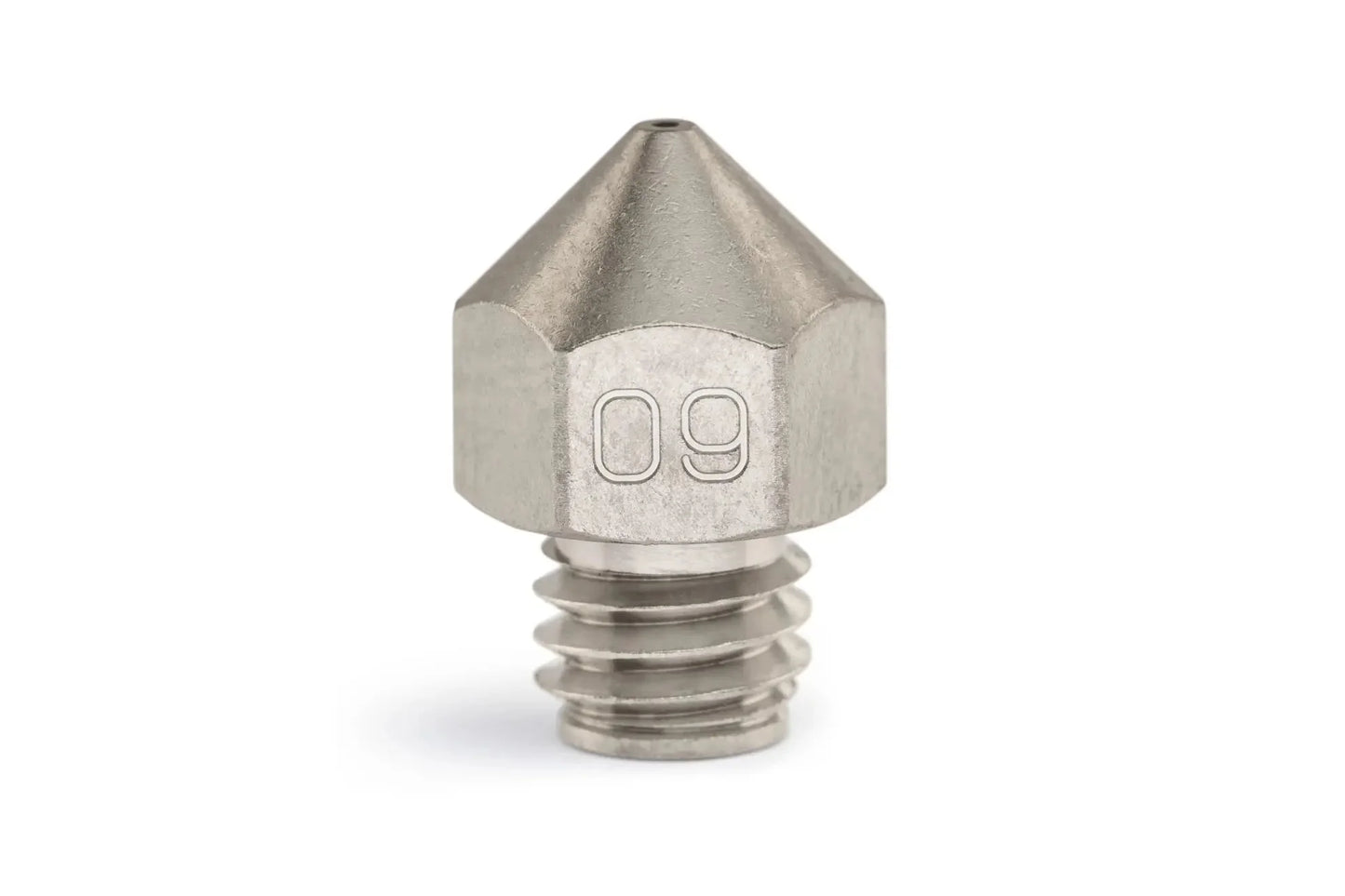

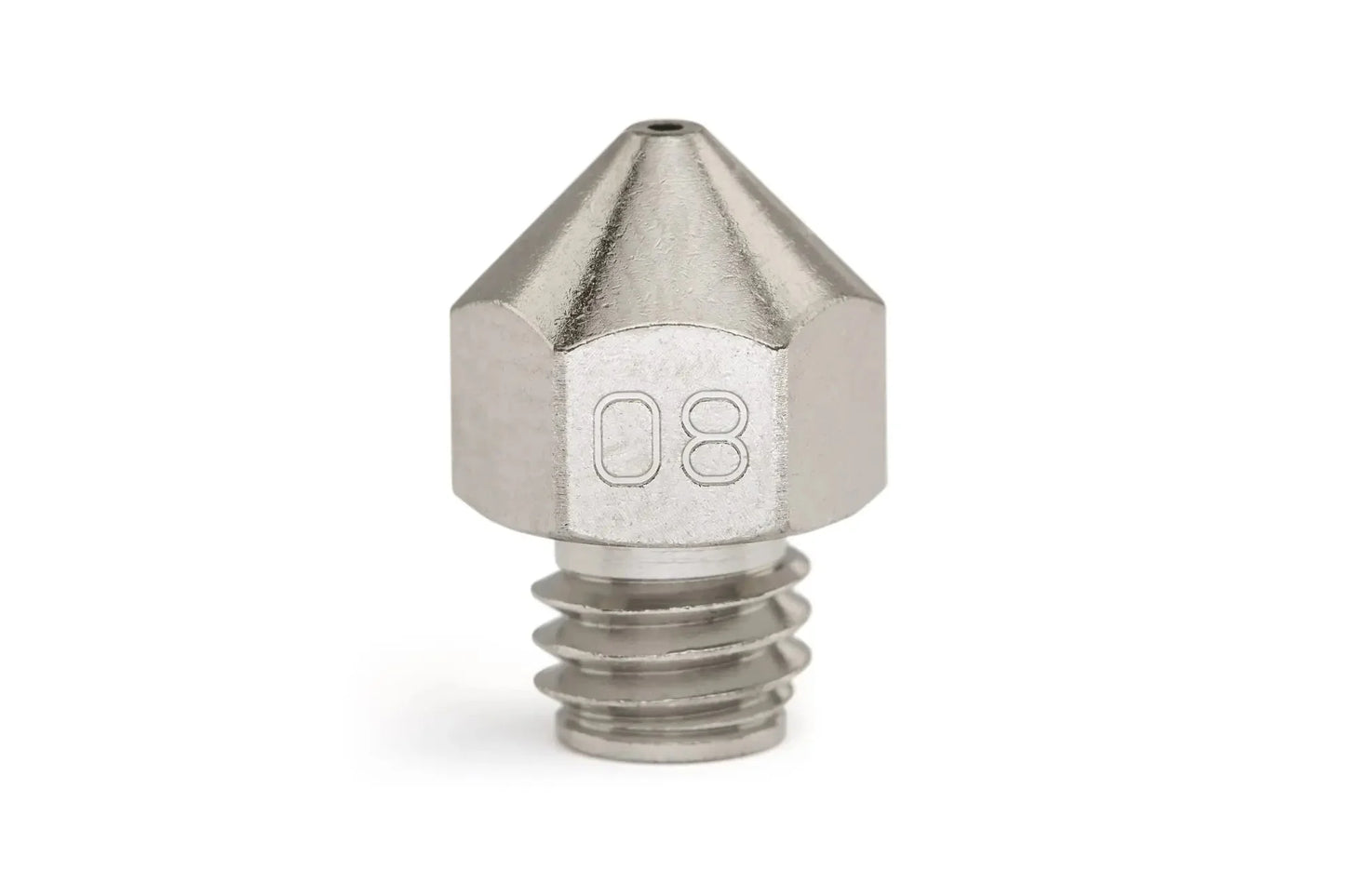

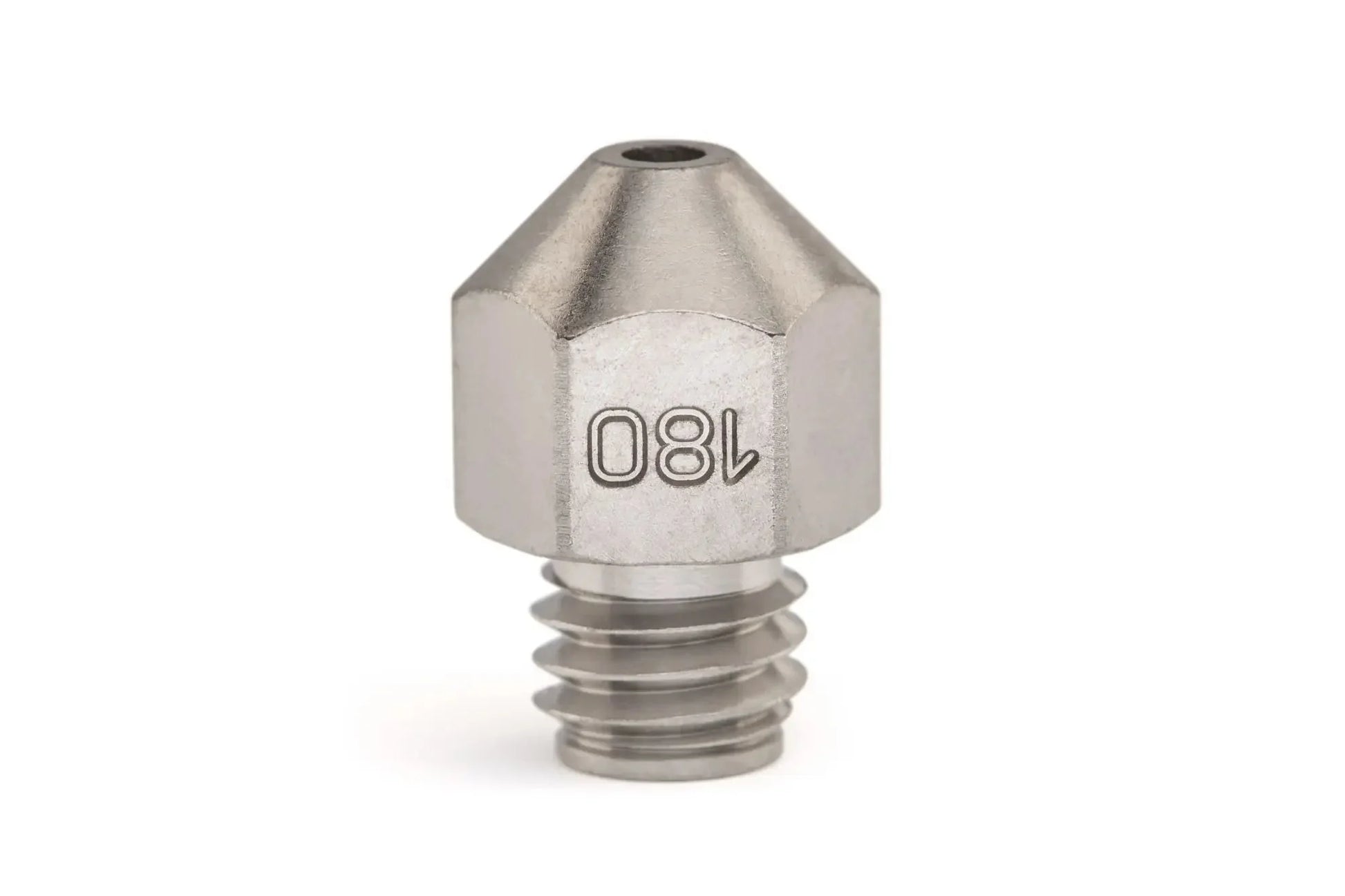

Bondtech CHT MK8 High Flow Nozzle - Nickel Coated Brass

The authentic Bondtech CHT® MK8 Nozzle uses patented Core Heating Technology to dramatically increase the melting capacity of your hotend. By splitting the filament into three thinner strands, it melts plastic from the inside out, allowing you to print faster, save time, and achieve superior layer adhesion for stronger 3D printed parts.

Key Advantages

• Core Heating Technology (CHT): Maximize volumetric flow rates by expanding the heated surface area inside the nozzle without extending your melting zone.
• Premium Nickel Coating: Provides excellent protection against corrosion and abrasion, lowering the coefficient of friction for smoother extrusion and preventing filament from sticking to the nozzle tip.
• Broad Filament Compatibility: Optimized for 1.75mm filaments but engineered to remain highly compatible with 2.85mm setups.
• Precision Engineering: Machined to ultra-precise tolerances out of high-grade brass for reliable thermal distribution.

Specifications & Compatibility

• Standard Fitment: MK8 Thread style (M6 × 1 × 5 × 13 geometry). Requires an 8mm wrench for installation.
• Material: Nickel-Coated Brass
• Available Nozzle Sizes: 0.40mm, 0.60mm, 0.80mm, 1.0mm, 1.4mm, and 1.8mm.
• Performance Note: To achieve maximum volumetric flow rate gains, a nozzle diameter of 0.60mm or larger is highly recommended. Flow gains apply to rigid materials and select flexible filaments.

Technical documentation

• Review the product specifications via the official Technical Data Sheet.

Pro Tip: We recommend dedicating separate nozzles to different material types. Mixing different plastics within the same nozzle can leave behind carbonized deposits that lead to intermittent blockages over time.
