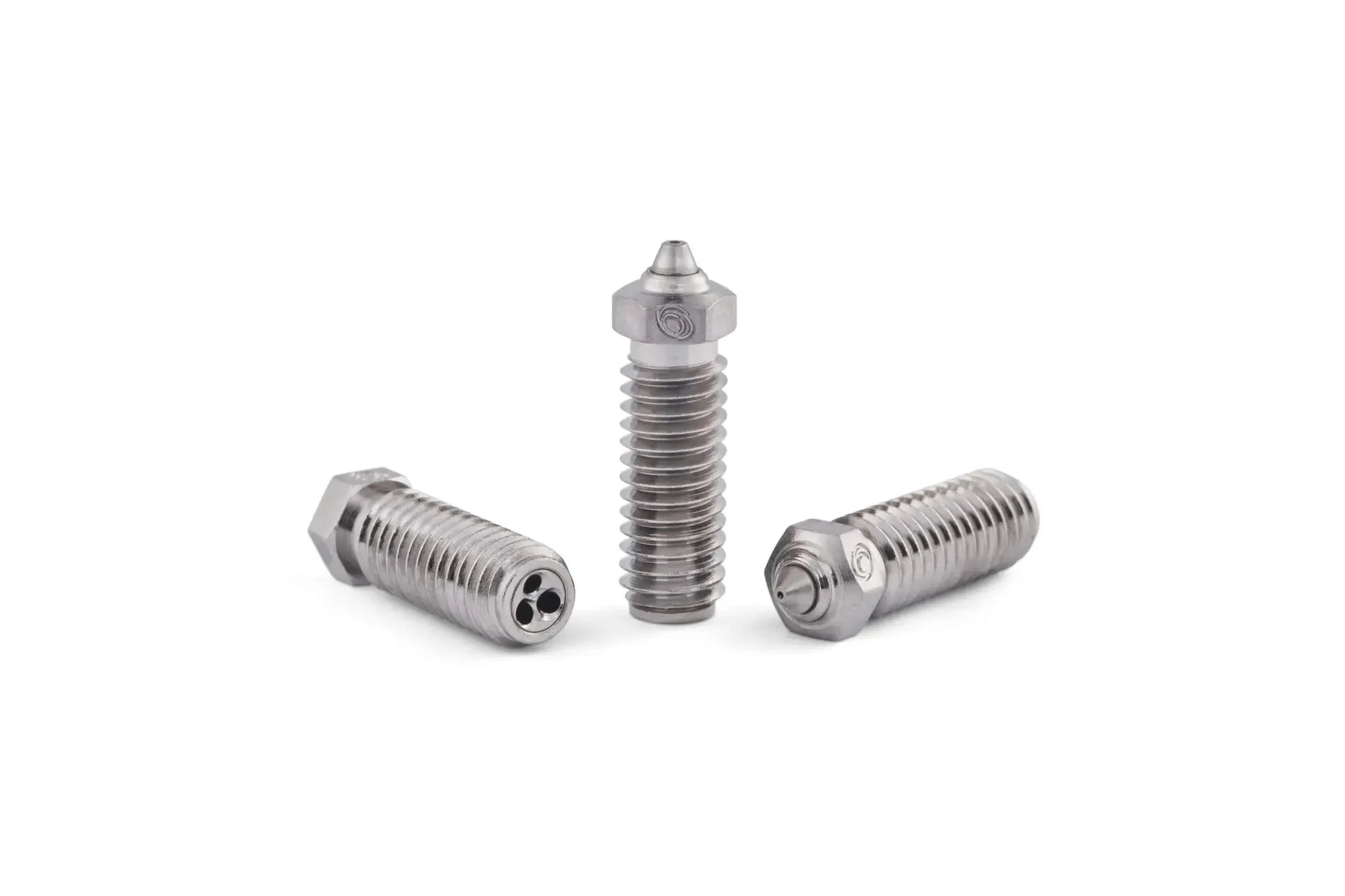

Supercharge your volumetric printing speeds with the Bondtech CHT BiMetal™ Volcano Nozzle. Engineered to significantly boost the melting capacity of your high-flow toolhead, this premium nozzle allows you to print faster, finish projects quicker, and improve interlayer adhesion for overall stronger structural parts.
🚀 Core-Heating Technology (CHT)
Unlike standard designs that only heat filament from the outside inward, Bondtech's proprietary **Core-Heating Technology** splits the filament into three separate streams. This architecture vastly increases the surface area exposed to heat, resulting in a much higher volumetric flow rate limit without requiring a longer melt zone.
💎 Heavy-Duty Bi-Metal Engineering
Built as a composite hybrid, this nozzle balances thermal transfer with physical durability to give you the ultimate reliable extrusion path.
High-Conductivity Copper Body: Delivers rapid heating performance directly from your heater block into the inner filament paths.
Hardened Steel Inserts: Placed at the critical wear points to ensure long-lasting resistance against fiber-filled and particle-loaded abrasive polymers.
Protective Nickel Coating: Guards against physical oxidation and prevents sticky, molten plastic from accumulating on the outside flat of the tip.
📋 Specifications & Compatibility
Compatible Hotends: Standard Volcano-style heater blocks and high-flow conversion extensions.
Available Sizes: 0.40mm, 0.60mm, 0.80mm, and 1.0mm.
Filament Compatibility: Optimized for 1.75mm lines; safely compatible with 2.85mm setups.
Installation: Requires a standard 6mm wrench for toolhead assembly.
