Ambrosia Filament’s PC-ABS blend is engineered for industrial-grade performance without the sacrifice of printability. By combining the high-strength and heat resistance of Polycarbonate with the easy-to-print nature of ABS, this filament provides superior mechanical properties with a workflow that is only marginally more demanding than standard ABS.
Manufactured to a strict +/- 0.03mm tolerance, you can expect consistent extrusion and high-precision results throughout the entire 1KG spool.
Material Highlights
Enhanced Durability: Offers better impact resistance and structural integrity than standard ABS.
Heat Resistance: With a Heat Deflection Temperature (HDT) of 123°C, it is ideal for high-stress applications.

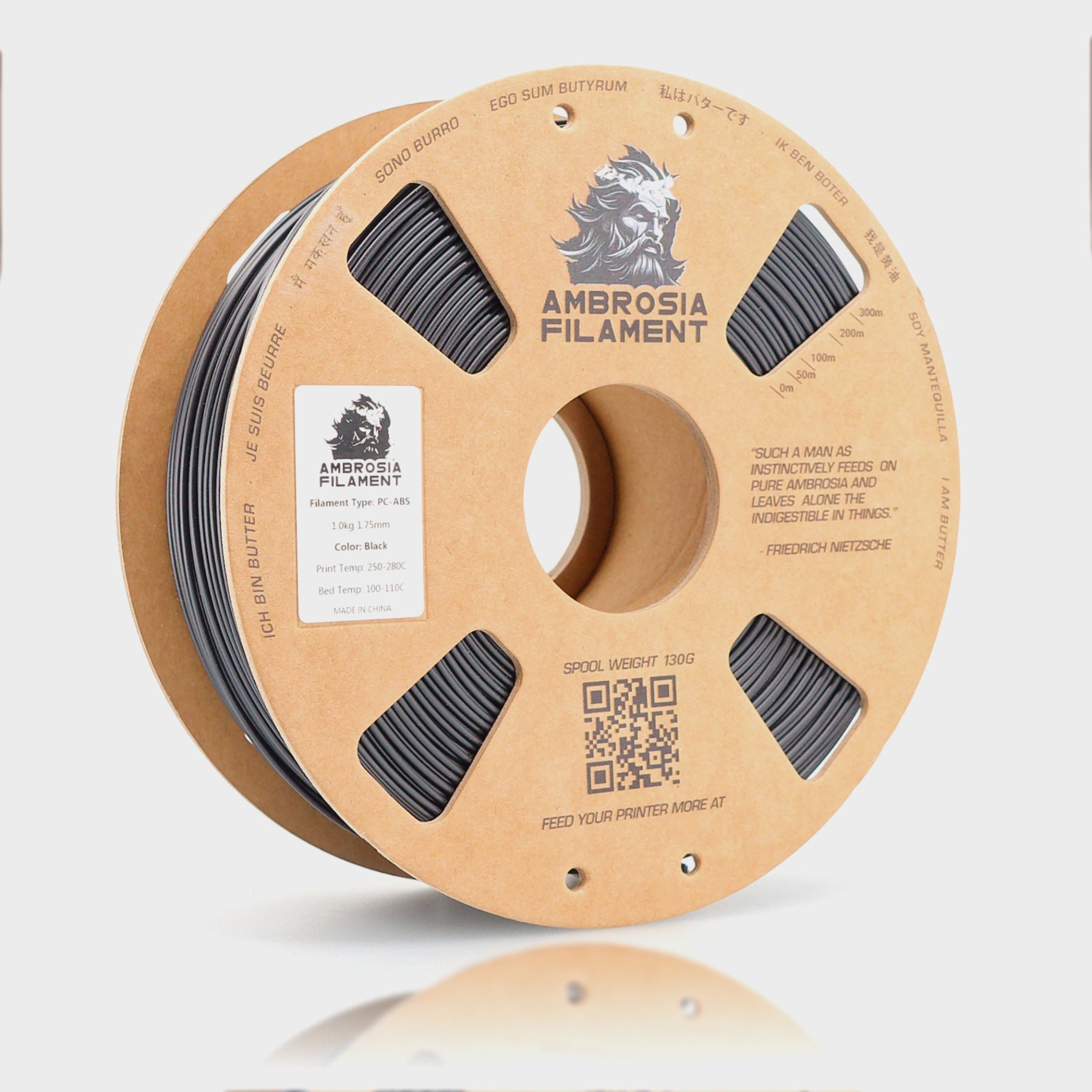

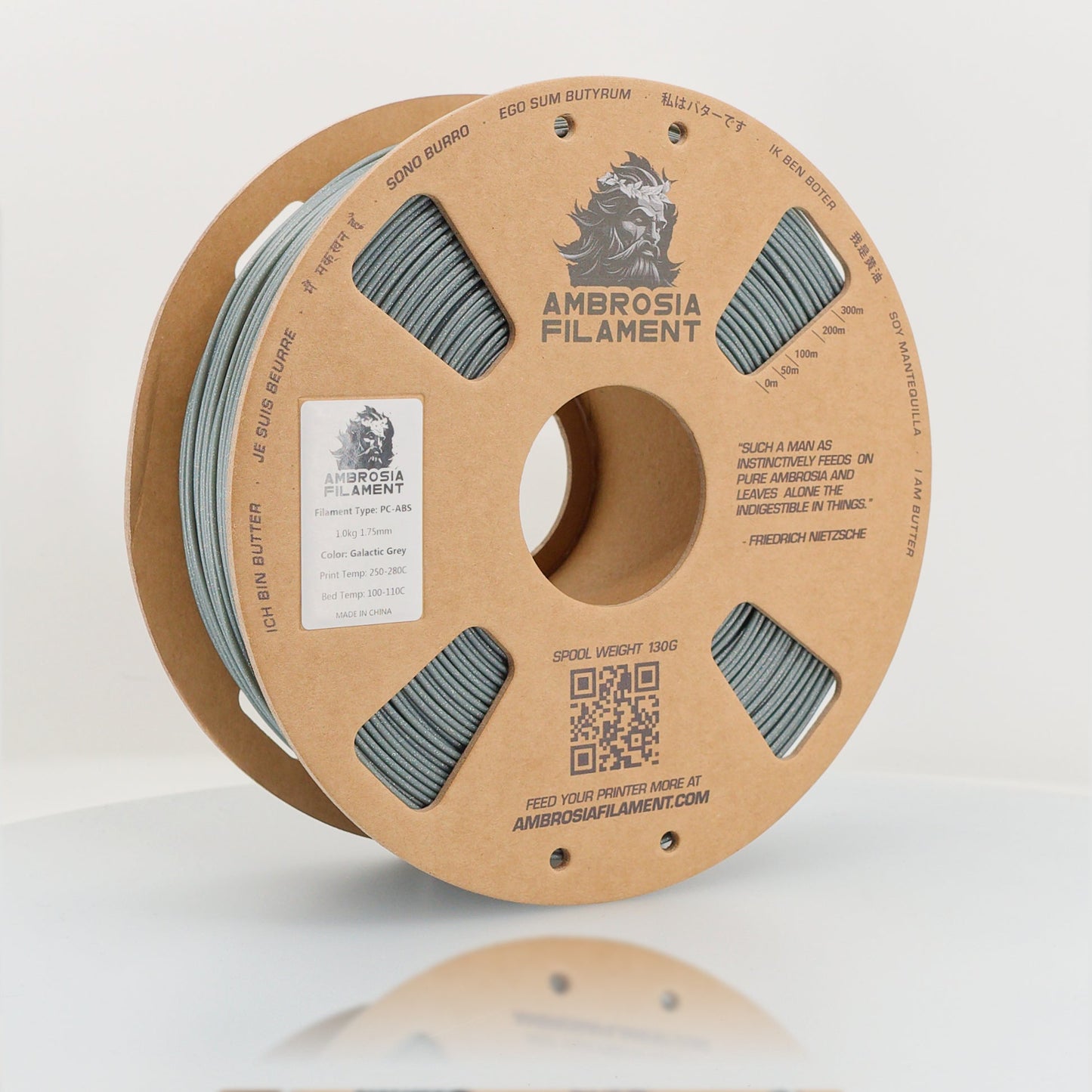

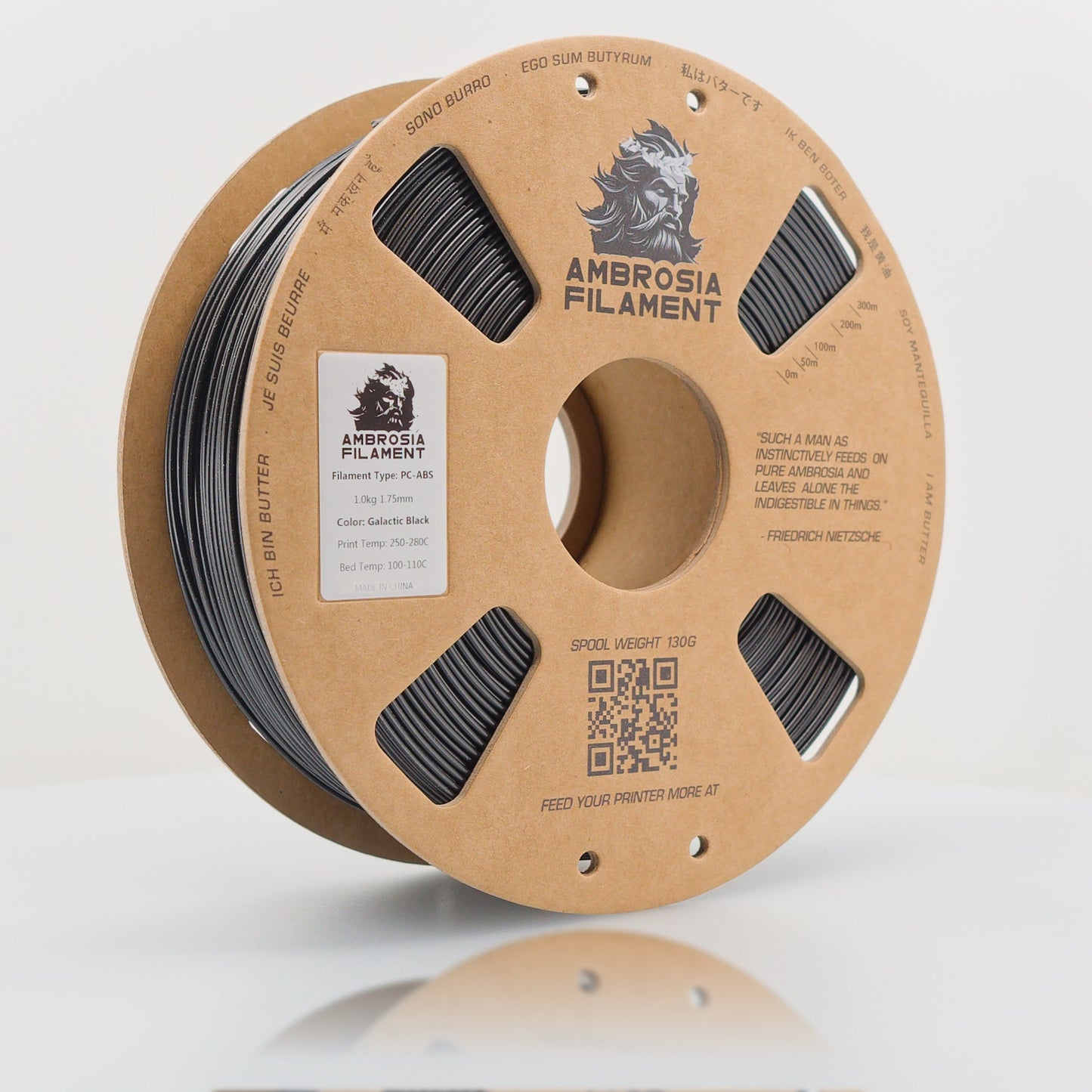

Precision Wound: Shipped on a recyclable cardboard spool, vacuum-sealed with desiccant.
Requirements: A heated bed, heated chamber, and high-temperature printing setup are required.
Spool Care: The spool adhesive is rated for up to 70°C (158°F). If drying the filament or using a chamber exceeding this temperature, we recommend printing a spool clip or ring.
Recommended Print Settings
Attribute
Recommended Value [Range]
Extruder Temperature
270°C [250–280°C]
Heated Bed
110°C [100–115°C]
Build Surface
Smooth PEI or PEA [Adhesive Recommended]
Cooling Fan
0–70% (Varies by setup)
Chamber Temperature
60°C [40–120°C]
Support Material
HIPS or Water Soluble
Technical Specifications
Physical Properties
Methodology
Values
Density
ISO 1183
1.14-1.15 g/cm³
Melt Flow Rate (250°C/2.16kg)
ISO 1133
19-22 g/10min
Moisture Absorption (23°C/24h)
ISO 62
< 0.8%
Mechanical Properties
Methodology
Values
Tensile Strength
ISO 527
43.5-45.5 MPa
Elongation at Break
ISO 527
24-26%
Flexural Modulus
ISO 527
800-950 MPa
Flexural Strength
ISO 178
71.5-74.5 MPa
Impact Strength
ISO 180
43.5-44.5 KJ/m²
Thermal Properties
Methodology
Values
HDT @ 0.455 MPa
ISO 75
123°C
Safety Disclaimer: PC-ABS filaments can emit Volatile Organic Compounds (VOCs) when heated. Ensure use in a well-ventilated area with proper filtration. Keep sealed in an airtight container with desiccant to prevent moisture absorption. Ambrosia Filament assumes no liability for the information provided or the final application of this product.
