Ambrosia Filament’s ASA-CF is the industrial evolution of standard ASA. By infusing 100% Virgin Grade-A ASA with long chopped Carbon Fiber strands, we’ve created a filament that is significantly stiffer, more rigid, and offers exceptional layer adhesion. Because of the carbon fiber content, this material produces a professional, dark matte finish.
ASA-CF is the natural successor to ABS, providing high strength, impact resistance, and superior weather/UV stability. It prints with less warping than standard ABS, though a heated bed and enclosure are required for optimal results.
Industrial Strength: Carbon Fiber is lighter than plastic and stronger than many metals, offering incredible heat resistance.
Precision Manufacturing: +/- 0.03mm diameter tolerance for consistent, "butter-smooth" extrusion.

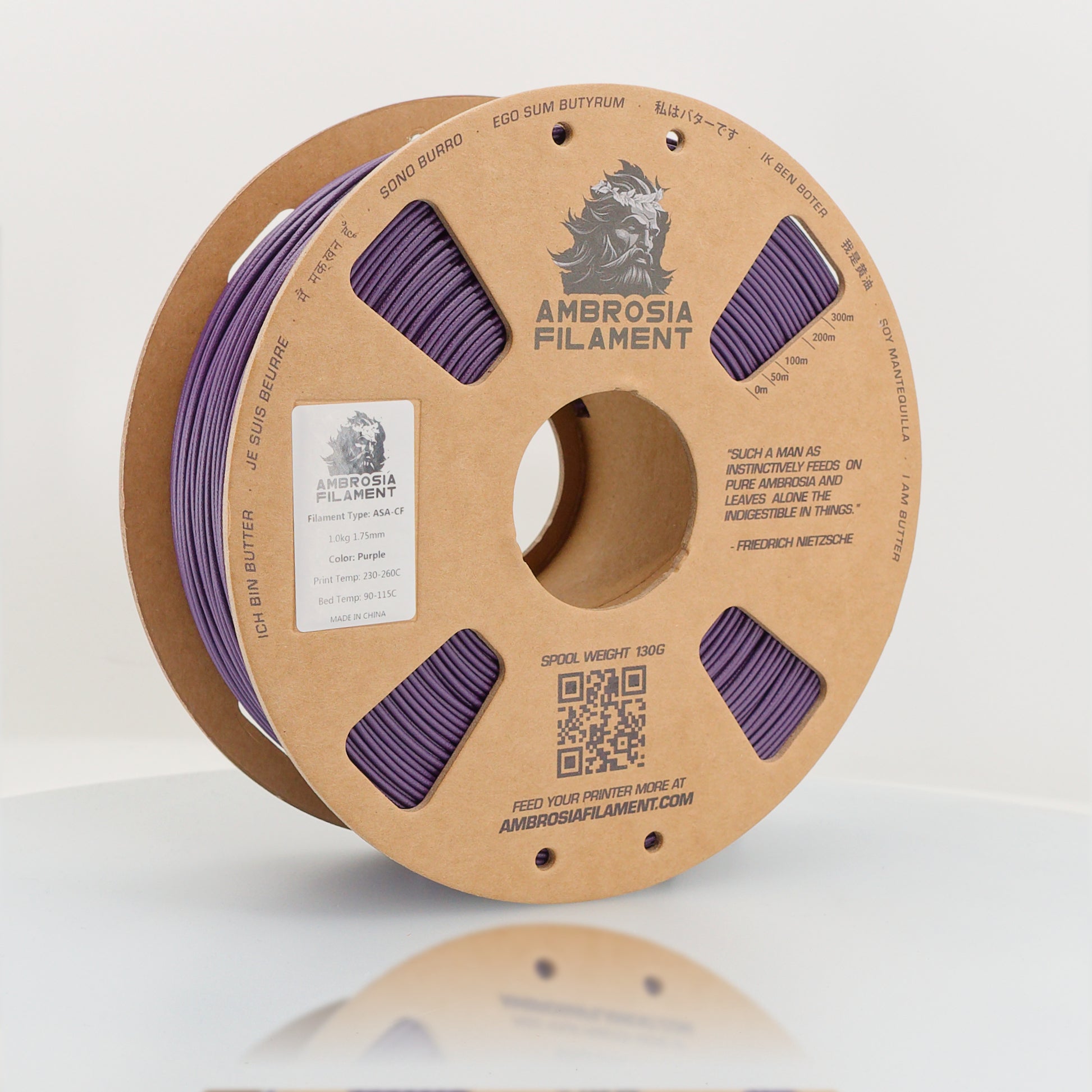

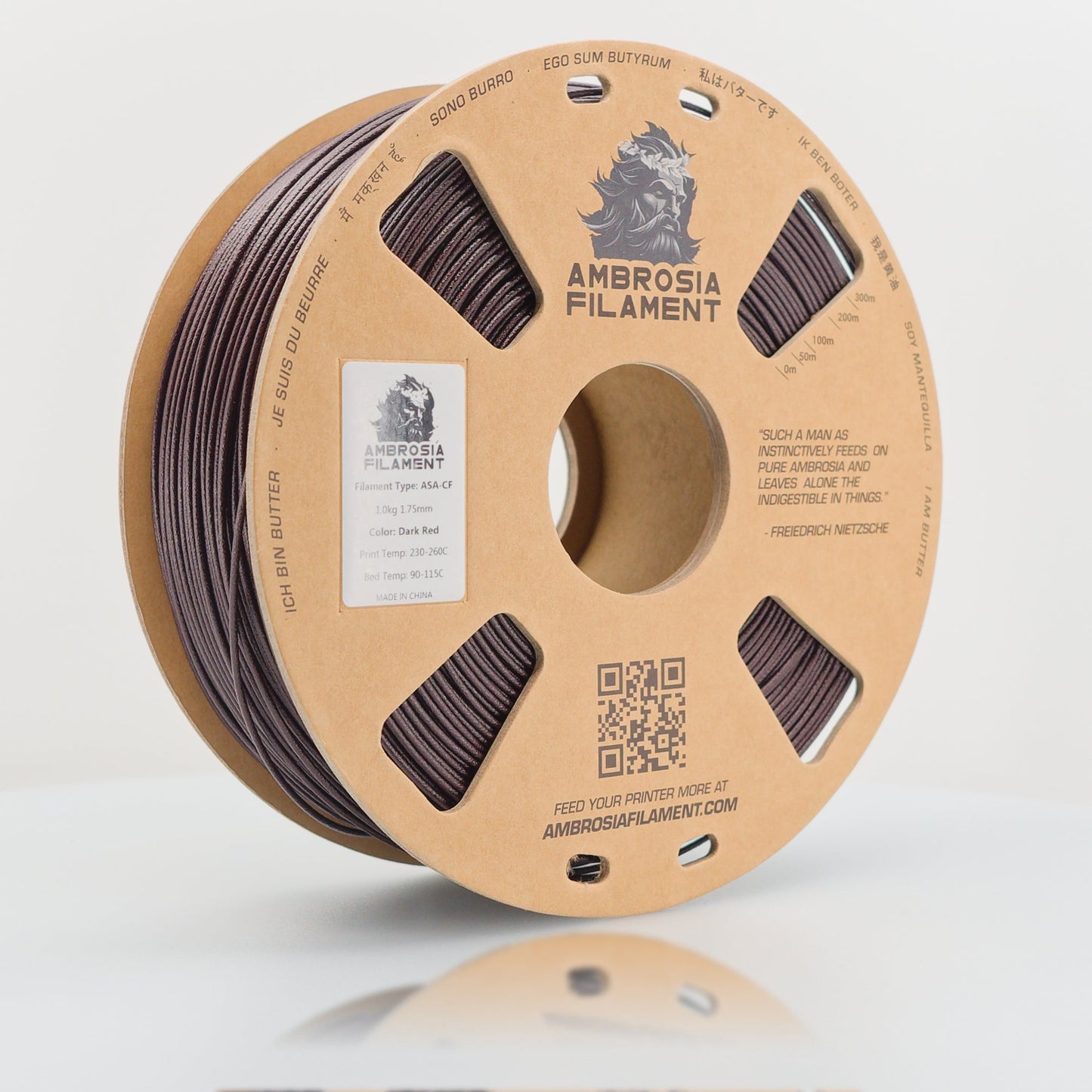

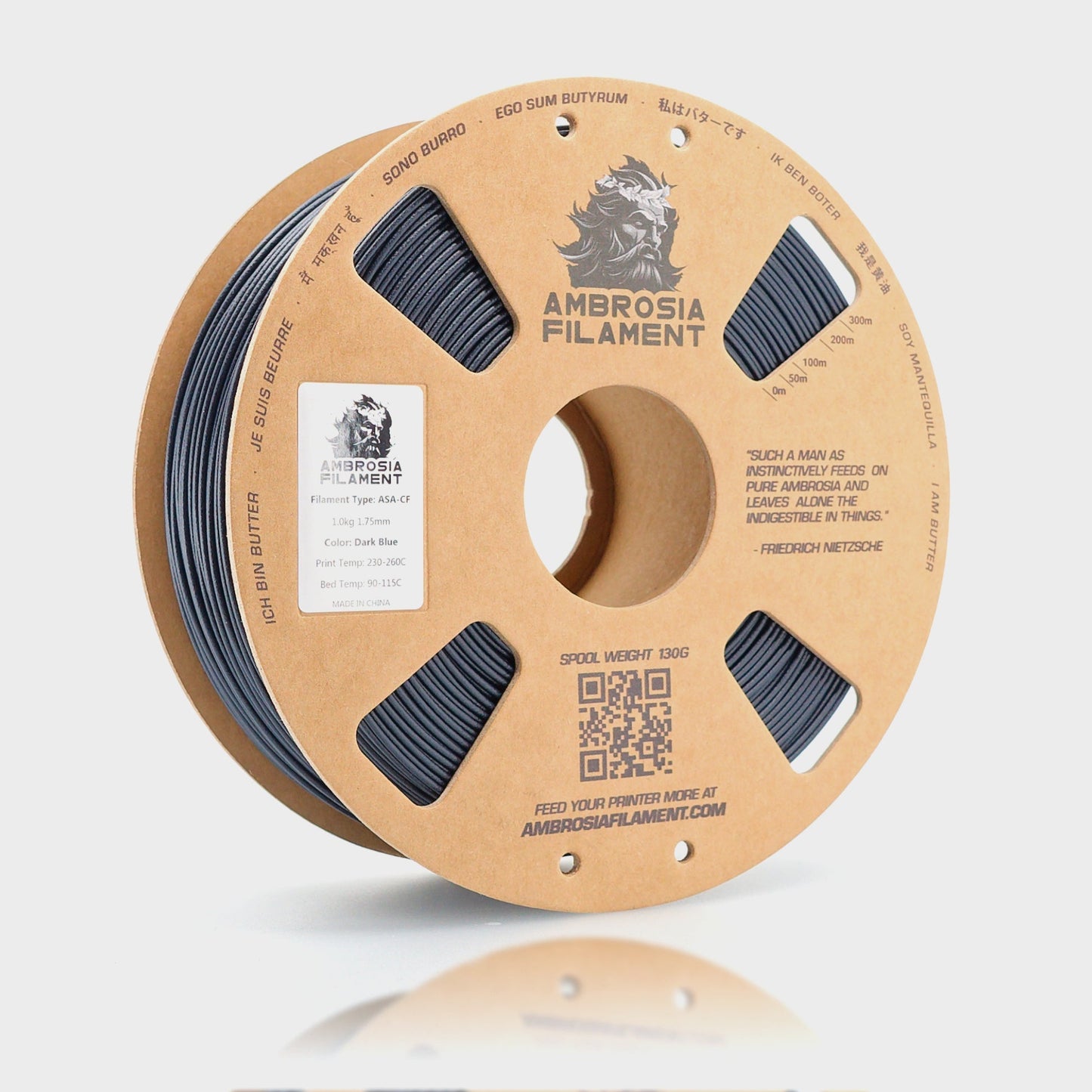

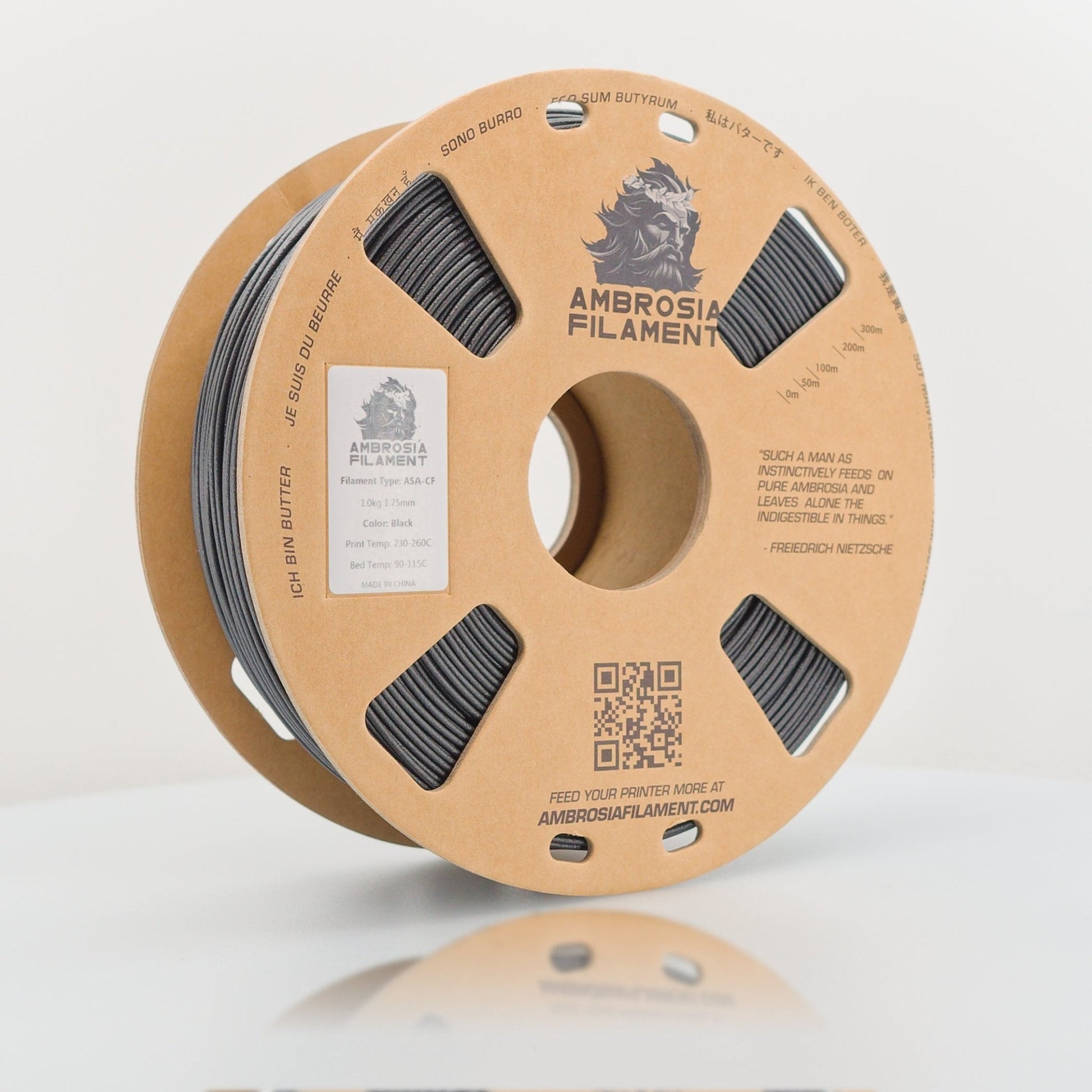

Packaging: Arrives in a cardboard box, wound on a recyclable cardboard spool, and vacuum-sealed with desiccant.
Specifications: 1.75mm diameter | 1KG Net Weight.
Spool Care: The spool adhesive is rated for environments up to 70°C (158°F). If using a filament dryer or heated chamber exceeding this, we recommend printing a spool clip or ring.
Recommended Print Settings
Attribute
Recommended Value [Range]
Extruder Temperature
270°C [250–280°C]
Heated Bed
110°C [100–120°C]
Build Surface
Textured PEI [PEI, Buildtak, or similar]
Cooling Fan
0–70% (Varies by cooling capabilities)
Enclosure/Chamber Temp
45°C [40–120°C]
Support Material
HIPS
Technical Specifications
Physical Properties
Methodology
Values
Density
ISO 1183
1.09–1.10 g/cm³
Melt Flow Rate (250°C/2.16kg)
ISO 1133
4–7 g/10min
Mechanical Properties
Methodology
Values
Tensile Strength
ISO 527
39–42 MPa
Elongation at Break
ISO 527
15.5–17.5%
Flexural Modulus
ISO 527
850–900 MPa
Flexural Strength
ISO 178
80–82.5 MPa
Impact Strength
ISO 180
10.5–12 KJ/m²
Thermal Properties
Methodology
Values
HDT @ 0.455 MPa
ISO 75
88°C
Safety & Usage: ASA-CF emits VOCs when heated; use only in well-ventilated areas. Carbon Fiber Hazard: Do not sand parts without proper respiratory equipment. Handle with care using gloves to avoid irritation from micro-fibers. Ambrosia Filament assumes no liability for the suitability of this product for your specific application.
