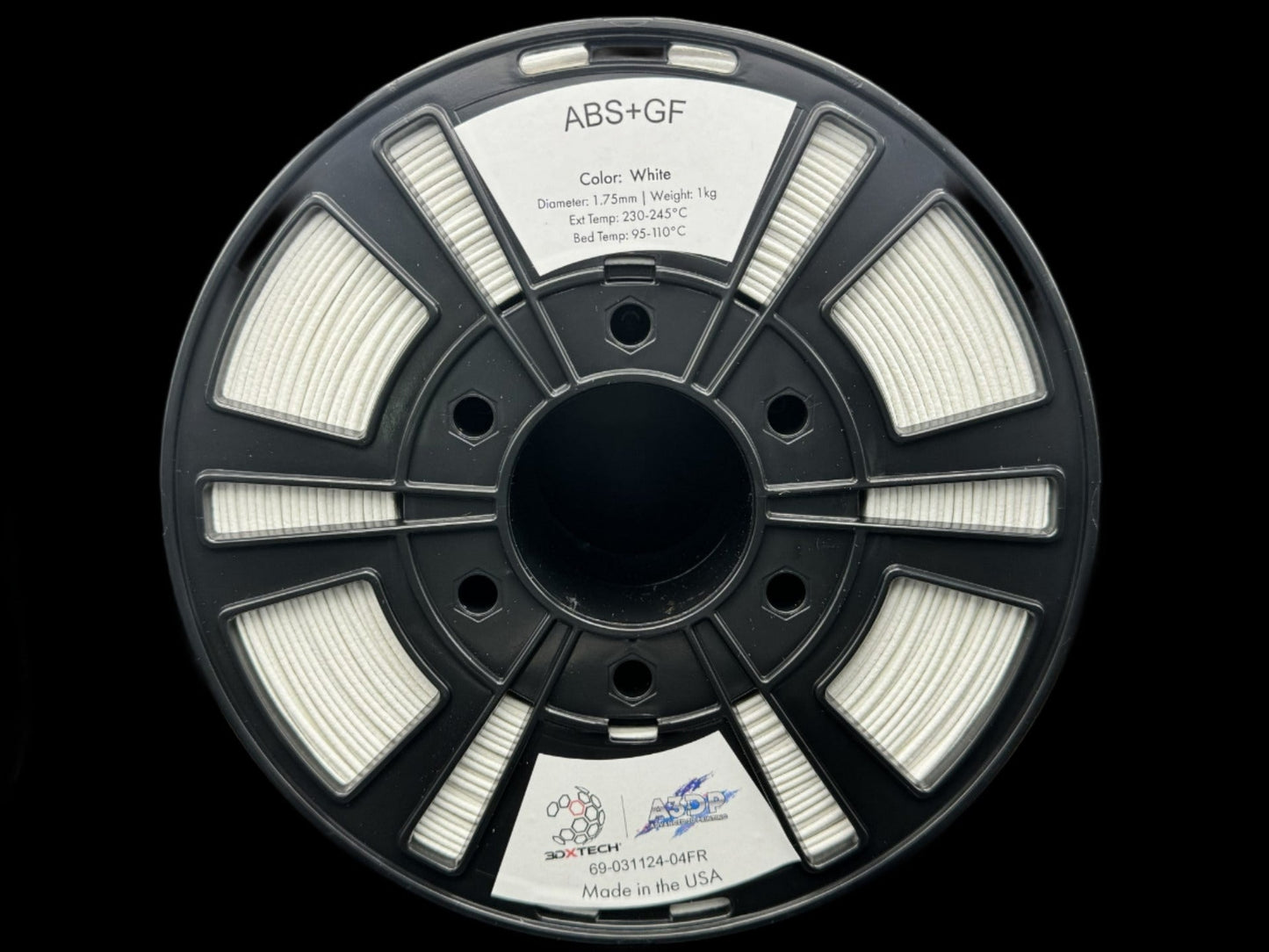

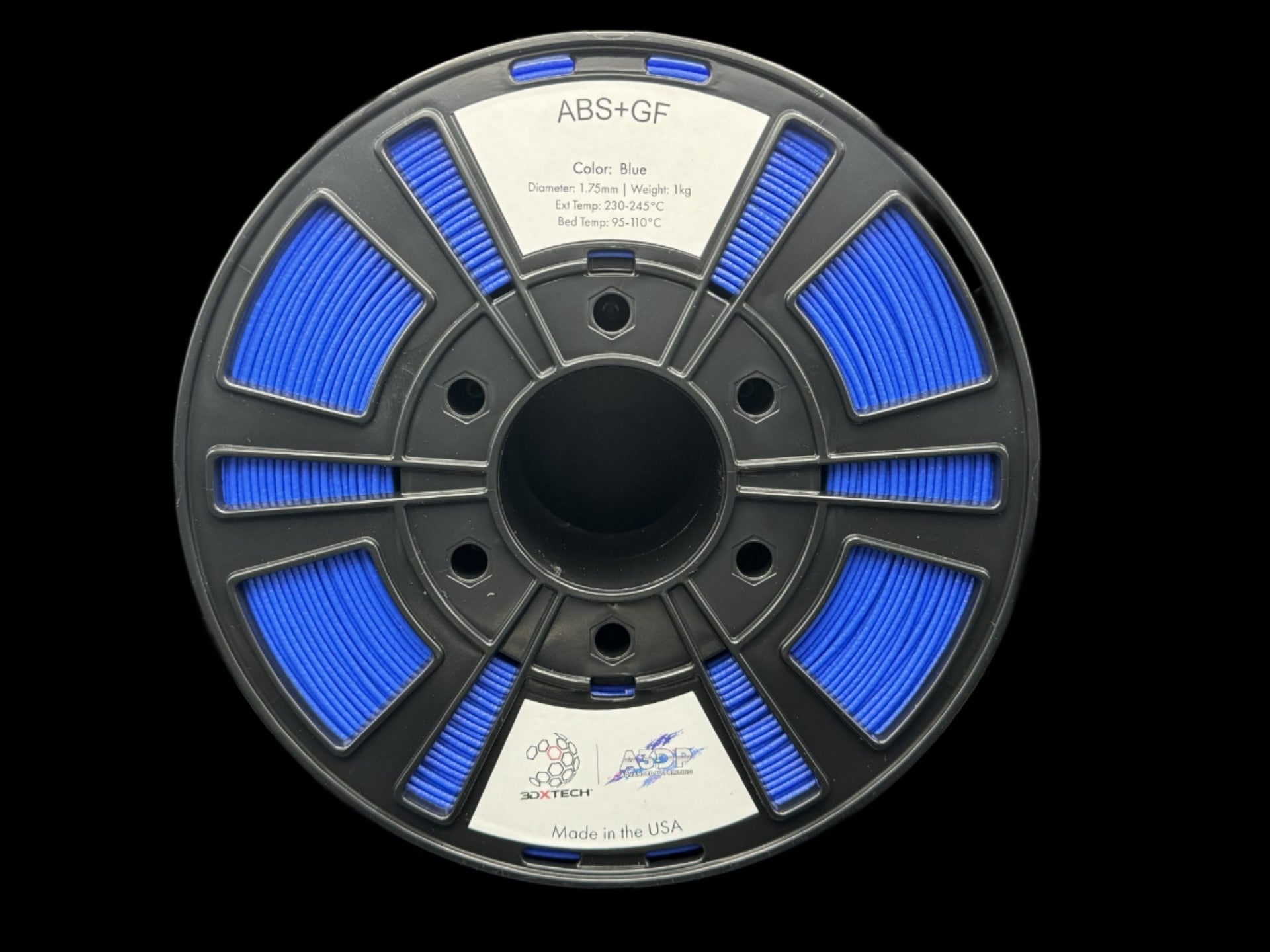

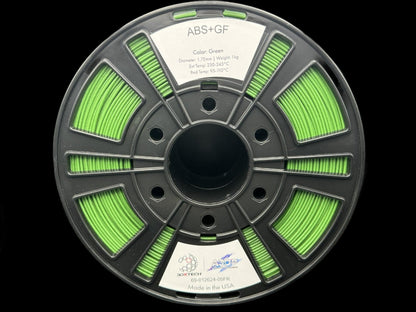

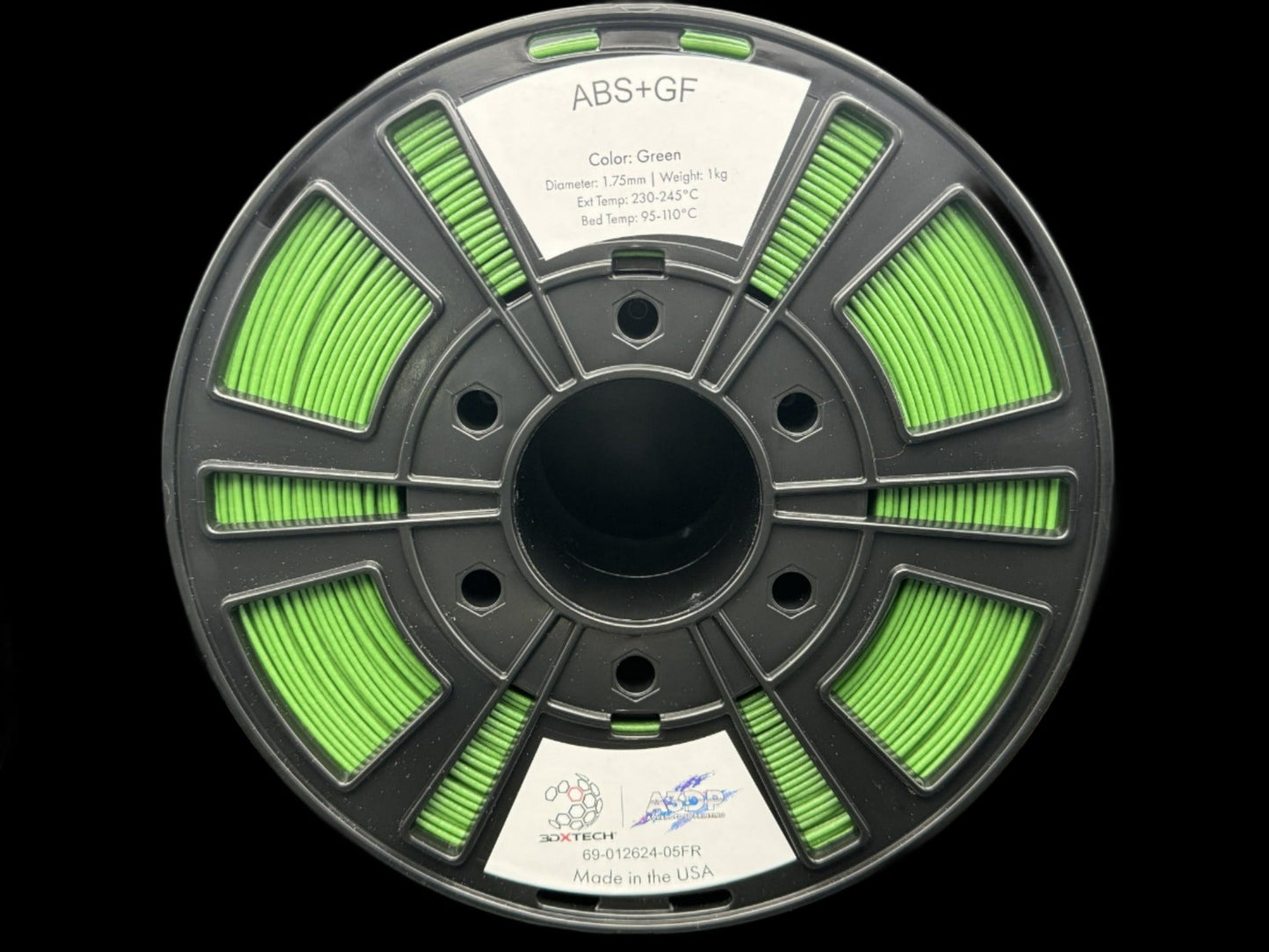

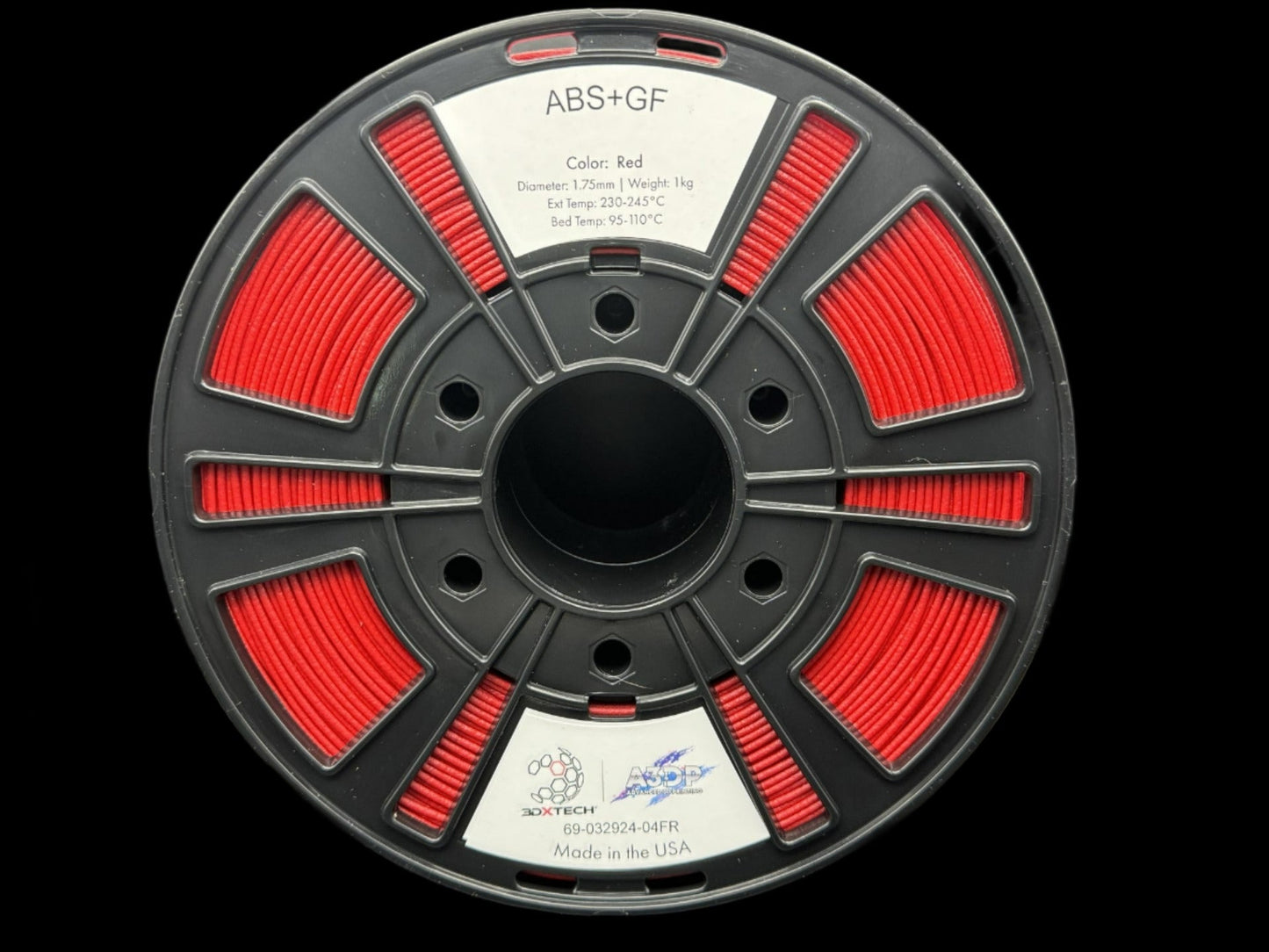

Engineered for high-strength industrial components, Advanced 3D Printing™ ABS+GF10 is a 10% glass fiber reinforced ABS filament manufactured in collaboration with 3DxTech. By incorporating micro-glass fibers aligned along the filament axis, ABS+GF10 combines the elevated thermal performance of ABS with outstanding rigidity, low shrinkage, and high dimensional stability.
Specially formulated to mitigate the warping, lifting, and bed adhesion issues common to standard ABS, ABS+GF10 delivers flat, highly accurate prints for functional prototypes, jigs, fixtures, and structural parts. Available in four vivid colors: Red, Blue, Green, and White.
Key Features
10% Glass Fiber Reinforcement: Exceptionally stiff and strong without becoming brittle under structural load.
Superior Dimensional Stability: Significantly reduces warping, lifting, and thermal shrinkage compared to standard unreinforced ABS.
Elevated Thermal & UV Performance: High thermal resistance (functional up to 98°C depending on load) paired with UV stability for outdoor durability.

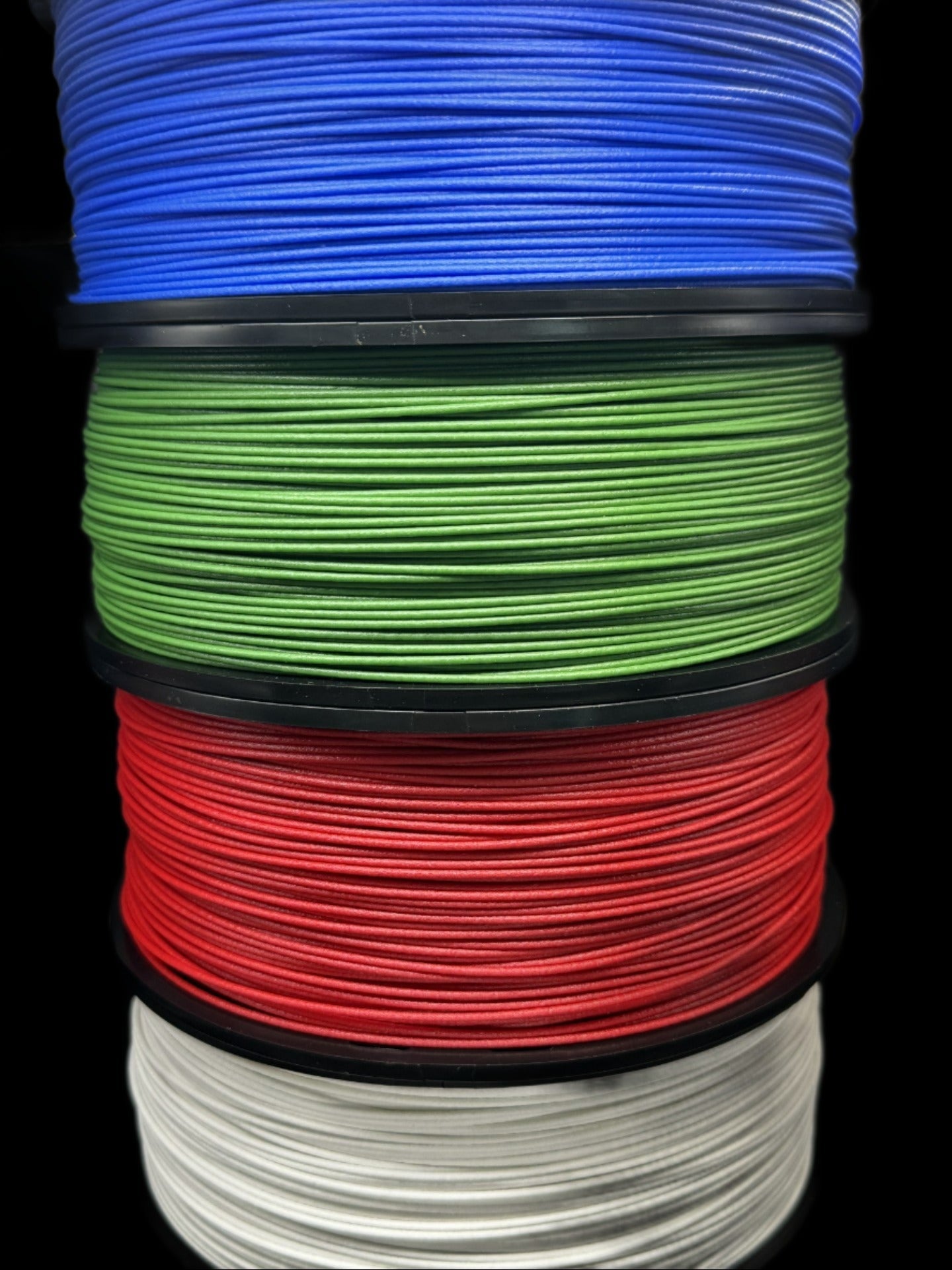

Color Variety: Offered in Red, Blue, Green, and White for functional color-coding and aesthetic prototyping.
Recommended Print Settings
Parameter
Recommended Value
Extruder Temperature
230°C – 245°C
Bed Temperature
95°C – 110°C
Chamber Temperature
Heated chamber recommended to prevent thermal stress
Nozzle Type & Size
0.4mm minimum (Hardened Steel Required)
Layer Height
60% of nozzle diameter (Minimum 0.2mm recommended)
Bed Surface Prep
Magigoo Bed Prep Adhesive
Support Material
AquaTek X1 USM Water-Soluble Support
Drying Parameters
80°C for 4 hours
Technical Specifications & Hardware Requirements
Brand: Advanced 3D Printing (A3DP) / 3DxTech
Base Material: ABS + 10% Glass Fiber Reinforcement
Filament Diameter: 1.75mm (± 0.05mm)
Spool Weight: 1kg
Abrasion Warning: Glass fibers are abrasive. A hardened steel nozzle is strongly recommended to prevent premature nozzle wear and extrusion inconsistency.
