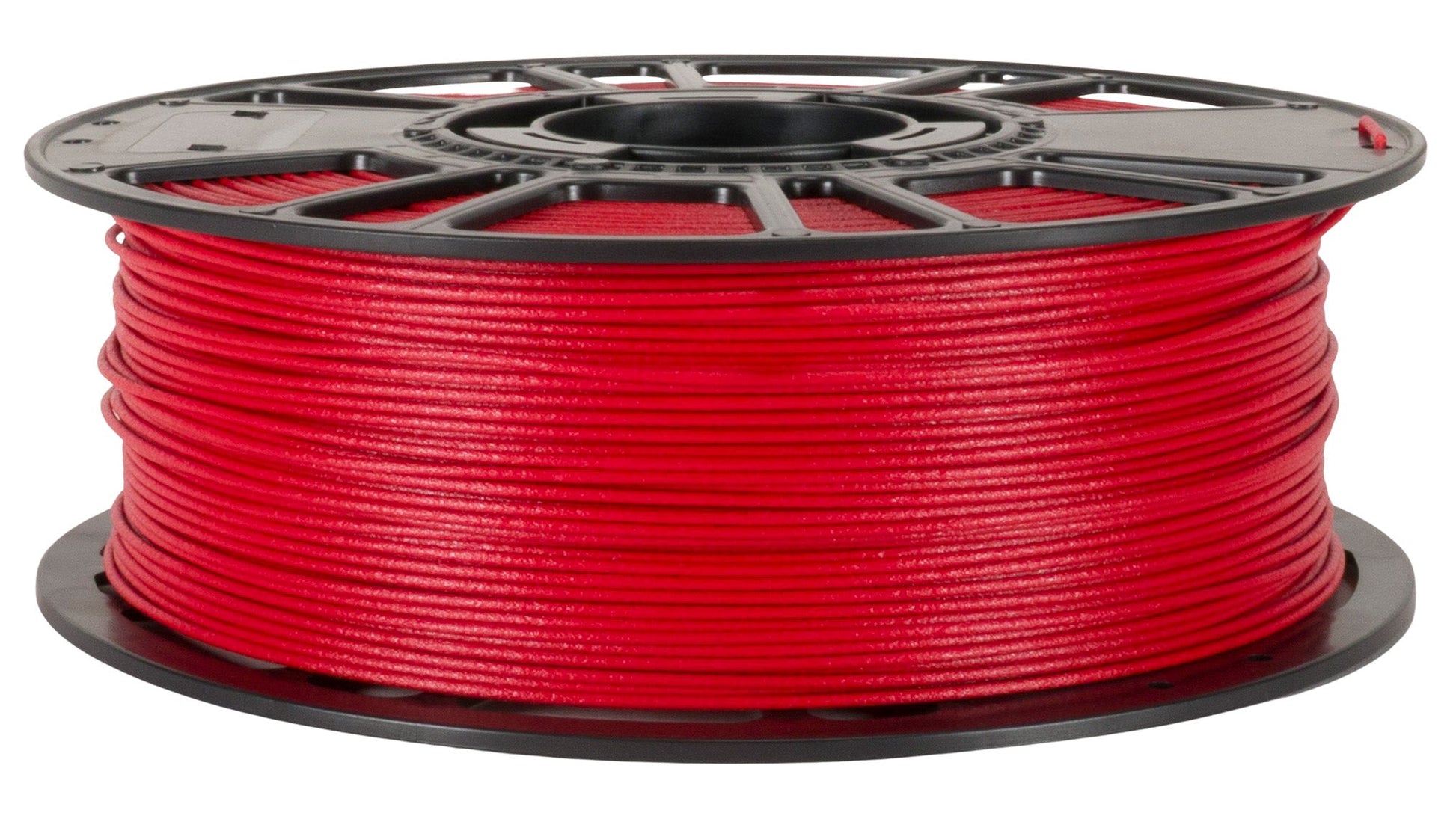

3D-Fuel - Pro PCTG-GF10 Filament – Toolbox Red, 1.75mm

3D-Fuel Pro PCTG-GF10 is an engineered 10% glass fiber reinforced filament that takes standard PETG capabilities to the next level. Infused with structural glass fibers, this material is significantly stiffer, stronger, and more dimensionally stable while retaining the baseline benefits of PCTG: up to 30x the toughness of PETG, enhanced chemical resistance, and lower moisture absorption without requiring a heated enclosure.

The industrial-grade Toolbox Red finish combines rugged structural performance with high visual visibility, making it an ideal choice for durable multi-color engineering prints inside systems like the Bambu Lab AMS.

Bambu AMS Compatibility & Spooling

Since October 2023, 3D-Fuel filaments have transitioned onto AMS-compliant spools. Because warehouse inventory moves progressively, you may receive a traditional spool variant. This remains fully compatible with your Bambu AMS system simply by keeping the unit lid propped open by a few millimeters during operation.

PCTG-GF10 Reinforcement: High Impact Strength & Stiffness

By pairing a high-ductility cyclohexane dimethanol (CHDM) molecular matrix with 10% glass fiber reinforcement, Pro PCTG-GF10 achieves an incredible balance of rigidity and impact absorption. The matrix yields clean inter-layer bonding while the embedded glass fibers increase structural load limits and prevent warping under mechanical stress.

• Extreme Drop & Crush Resistance: Perfect for structural enclosures, protective tool matrices, drone arm assemblies, and tactical wear.
• Vibration & Cyclic Stress Dampening: The fiber reinforcement effectively dissipates mechanical energy, making it premium-grade for hinges, heavy-duty latches, and structural couplings.
• Thermal Stability: Resists cold-embrittlement and displays elevated heat deflection thresholds relative to unreinforced PETG formulations.

Industrial Chemical & Environmental Resistance

Pro PCTG-GF10 stands strong against environmental exposure and corrosive chemical profiles, delivering a decisive Chemical Resistance Rating (CRR) advantage:

• Alcohols & Hydrocarbons: Immune to structural degradation or micro-cracking when cleaned with high-purity IPA, ethanol, or exposed to gasoline and mineral spirits.
• Acids & Corrosive Bases: Holds full mechanical integrity in the presence of industrial concentrations of cleaning bases, sodium hydroxide, and everyday acids.
• Industrial Lubricants: Perfect for shop floor environments where parts are in continuous contact with hydraulic fluids, engine oils, and cutting coolants.

Low Moisture Sensitivity & Pre-Print Drying

The CHDM modified backbone naturally minimizes polar water-binding sites, giving PCTG-GF10 an exceptionally low moisture absorption rate (0.1–0.2% by weight). This reduces common filament defects like popping, bubbling, or messy stringing. When preparing parts for structural applications, optimize print mechanics by drying the spool at 60-70°C for 4-8 hours.

Technical Printing Specifications

• Recommended Hotend Temperature: 260°C - 280°C (Hardened nozzle recommended due to fiber abrasive profile)
• Recommended Bed Temperature: 70°C - 80°C
• Print Speed Window: 60 – 250 mm/s
• Validated Surfaces: PEI sheets, heated bare glass, BuildTak, WhamBam

Technical Documentation: Pro PCTG TDS | Pro PCTG SDS

American-Made Quality Standards

Proudly manufactured in the United States under complete process control. 3D-Fuel utilizes real-time multi-axis laser tracking systems to actively meter filament ovality and strict diameter metrics, neutralizing extrusion variance. Every full 1kg (2.2 lbs) spool is packed tightly on an AMS-friendly composite reel, vacuum-sealed with premium desiccant to preserve raw properties. Fully lab-vetted across demanding industrial hardware including Prusa, Bambu Lab, Creality3D, Raise3D, and LulzBot systems.
